Kratki Steel Fireplace Kratki Blanka 8 Kw Ø 160 Cream Tile
STEEL FIREPLACE KRATKI BLANKA 8 KW Ø 160 CREAM TILE
STEEL FIREPLACE KRATKI BLANKA 8 KW Ø 160 CREAM TILE
Design
Design reffering to retro style - glossy tile panels.
The casing from tile panels effects for prolonged heat rejection, which provides additional source of heating after extinction.
INFORMATION
EQUIPMENT
- Air intake - built in
- Ashpan
- Combustion chamber lining
BRAND
Kratki
PRODUCT TYPE
Stove
SKU
BLANKA/KAFEL
EAN
5901350058626
FUEL TYPE
Seasoned deciduous wood (humidity ≤20
NUMBER OF PIECES IN A PACKAGE.
1
CONVENIENT TO USE
- An elegant and comfortable handle.
- It can be used in a various mounting conditions thanks to adjustable legs and movable fumes outlet with 360 regulation.
DESIGN
Stoves with tile panels produced by Kratki company are classified as solid-fuel boiler with manual loading of fuel and lockable door. They are used as additional source of heating in interiors where they are installed.
HEATING POWER RANGE (KW)
7.5 - 11.0
NOMINAL POWER (KW)
8 kw
CERTIFICATIONS / COMPLIANCE
Certificates : Ecodesign, BImSch
THERMAL EFFICIENCY (%)
78
WEIGHT
247 kg
FLUE GAS TEMPERATURE (°C)
284
PHYSICAL PARAMETERS
- Width : 71.5 cm
- Depth : 59.8 cm
- Height : 136.5 cm

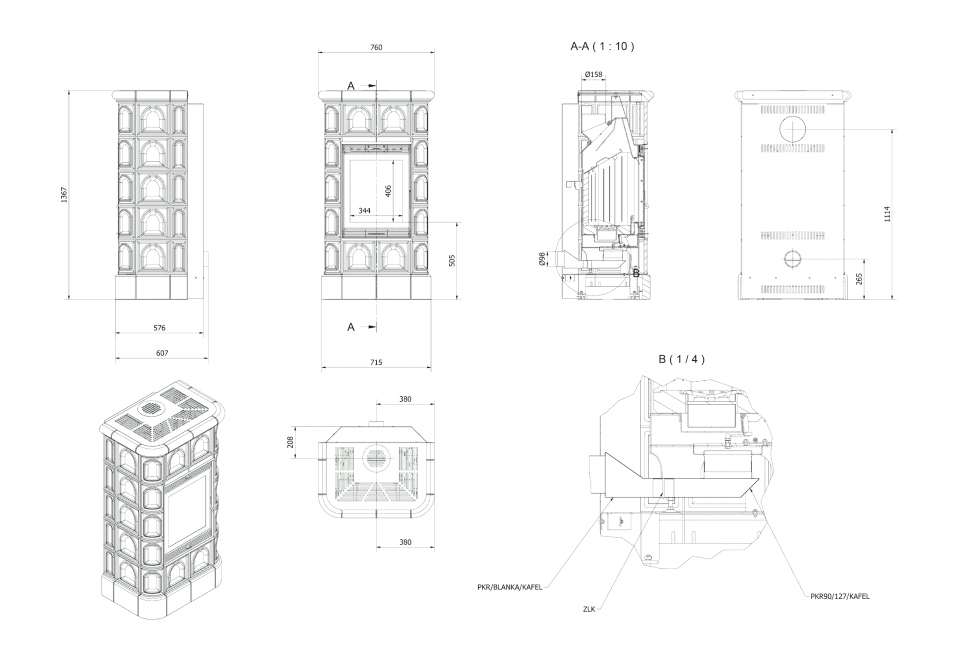

TECHNICAL DRAWING
OPTIMAL LOG LENGTH
250 mm
MAX BILLET LENGTH
30 cm
AIR INTAKE DIAMETER
100 mm
ADDITIONAL CLOSING
No
EEI
102
POLLEN EMISSION (MG/M3)
36
CO EMISSION (MG/M3)
1210
NOX EMISSION (MG/M3)
122
CO EMISSION (AT 13% O2) ≤ GIVEN IN %
0.09
SAFETY AT THE HIGHEST LEVEL
- All steel elements are laser cut and bent on CNC bending machines.
- Perfect tightness thanks to the solid welds made in a noble gas shielding.
- Insert`s front equipped with a heat resistant ceramics that withstands temperatures up to 660°C.
DOOR OPENING
Left
ENERGY CLASS
A
DIAMETER OF THE FLUE GAS OUTLET
160
SEASONAL ENERGY EFFICIENCY (%)
68
BASE MATERIAL
- Tile
- Steel
HEAT OUTPUT FOR SPACE HEATING (KW)
8
ECOLOGICAL COMBUSTION
The unit meets the requirements of Ecodesign standards and the restrictions of the BImSchV 2 standard, which determines the maximum CO emission.
OGC EMISSION (MG/M3)
102
FLUE GAS MASS FLOW (G/S)
8.7
MAXIMUM USE OF ENERGY
- Maximum usage of heat thanks to densely spaced radiators.
- Combustion of fuel particles thanks to deflector, which extends the exhaust gas path.
- Reducing emissions of harmful CO to the atmosphere by regulating of secondary air supply.
- The body and the front of the insert are resistant to high temperatures thanks to the high quality steel used in production.
- Built-in fi 100 external air intake which provides air supply from the outside directly into the hearth which results in better combustion and better comfort of usage.
- Efficient burning process & maintaining of temperature to keep the warmth for longer thanks to lining of combustion chamber with TERMOTEC - heat accumulating material which raises the temperature in the combustion chamber.
