Most locks are made for keys.
Yale knows secure locks. Nest knows the connected home. Together, we’ve made a tamper-proof, key-free deadbolt that connects to the Nest app.¹ Now you can lock and unlock your door from anywhere.
Give people you trust a passcode, instead of a key. Lock and check your door status with your voice using the Google Assistant. And always know who comes and goes.
FEATURES
LET SOMEONE IN FROM ANYWHERE
When the Nest × Yale Lock is connected to the Nest app, you can unlock your door from your phone. Create passcodes for family, guests and people you trust. Get alerts whenever someone unlocks and locks the door. And when Nest knows you’re away, your door can lock automatically.
LOCK IT UP
Check the status of your door and lock it from anywhere hands‑free with the Google Assistant. You can also enter a passcode, use one‑touch locking, or lock it from the Nest app.
IT’S SECURE AND TAMPER-PROOF

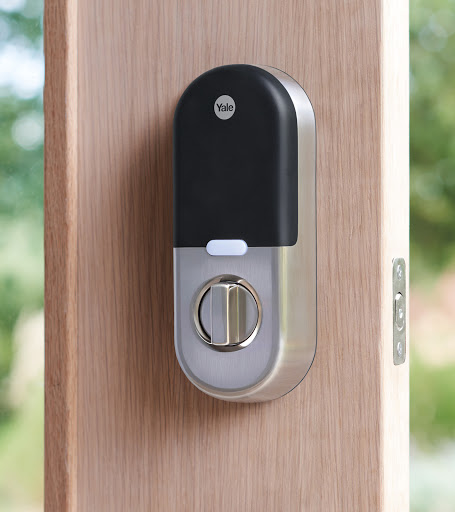

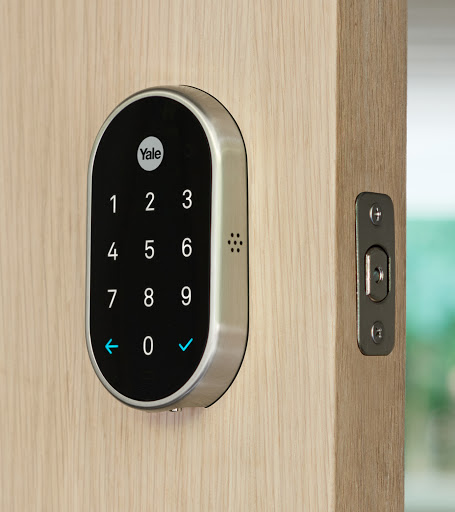

The Nest x Yale Lock replaces the deadbolt you already have. If someone tries to tamper with it, you'll get an alert. If the batteries start running low, you'll know right away. And if your lock loses power, you can quickly charge it with a 9V battery to unlock the door.
HOW IT WORKS
The Nest × Yale Lock connects to your Wi-Fi and the Nest app through Nest Connect or Nest Guard. You’ll need either one to lock and unlock your door remotely.
NEST X YALE LOCK

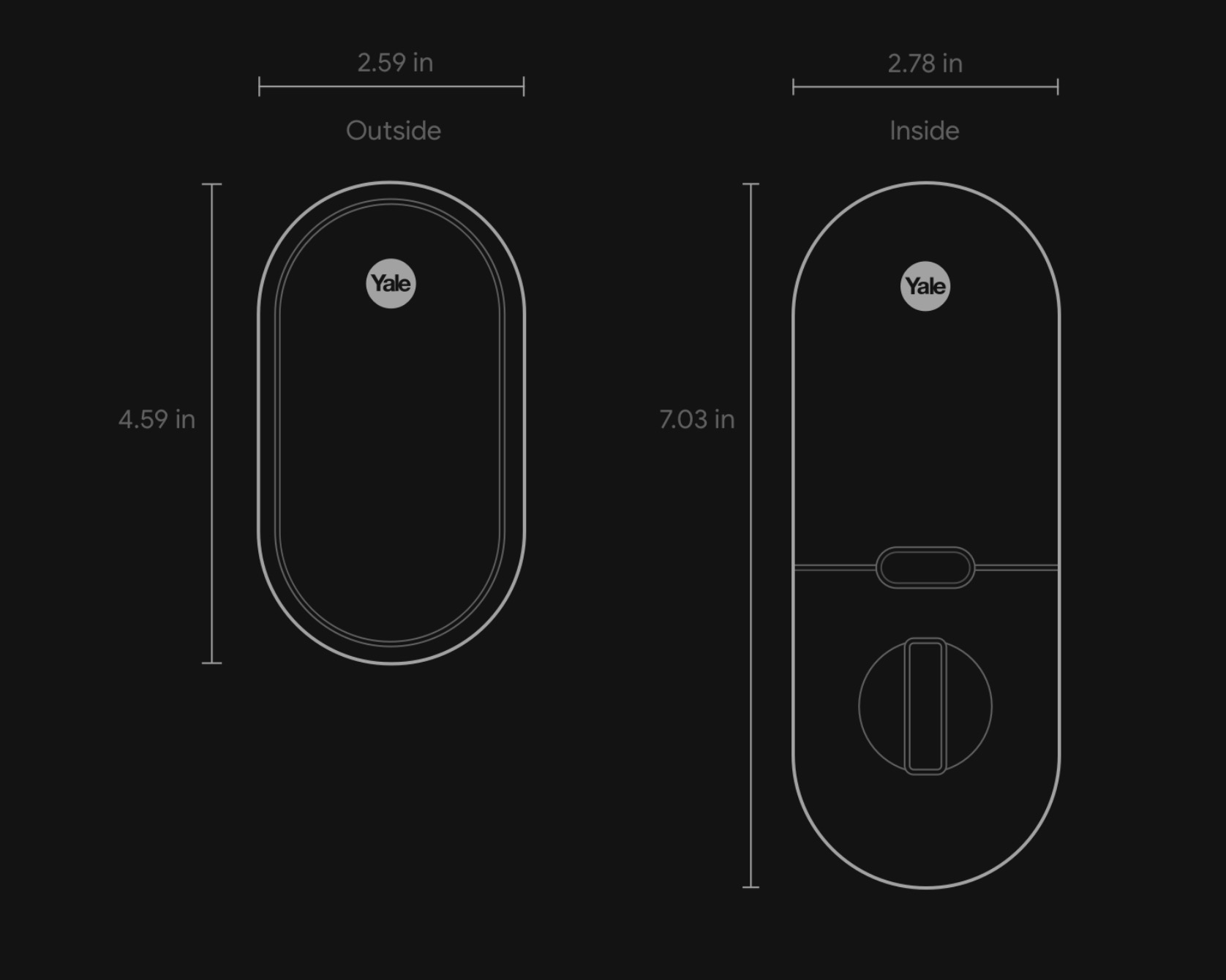

DIMENSION - OUTSIDE
- Height: 4.59 inches (11.66 cm)
- Width: 2.59 inches (6.58 cm)
- Depth: .80 inches (1.79 cm)
DIMENSION - INSIDE
- Height: 7.03 inches (17.88 cm)
- Width: 2.78 inches (6.58 cm)
- Depth: 2.02 inches (5.12 cm)
WEIGHT
2 lb 4.2 oz (1.03 kg)
POWER REQUIREMENTS
4 AA batteries (included):
Rechargeable batteries not recommended.
BATTERY LIFE
1 year
SENSORS
Optical, Capacitive touch
AUDIO
Talking lock with input chime
LIGHTS
- LED keypad
- Privacy Mode indicator
WIRELESS
802.15.4 (2.4GHz)
Bluetooth Low Energy (Inactive)
COLOUR

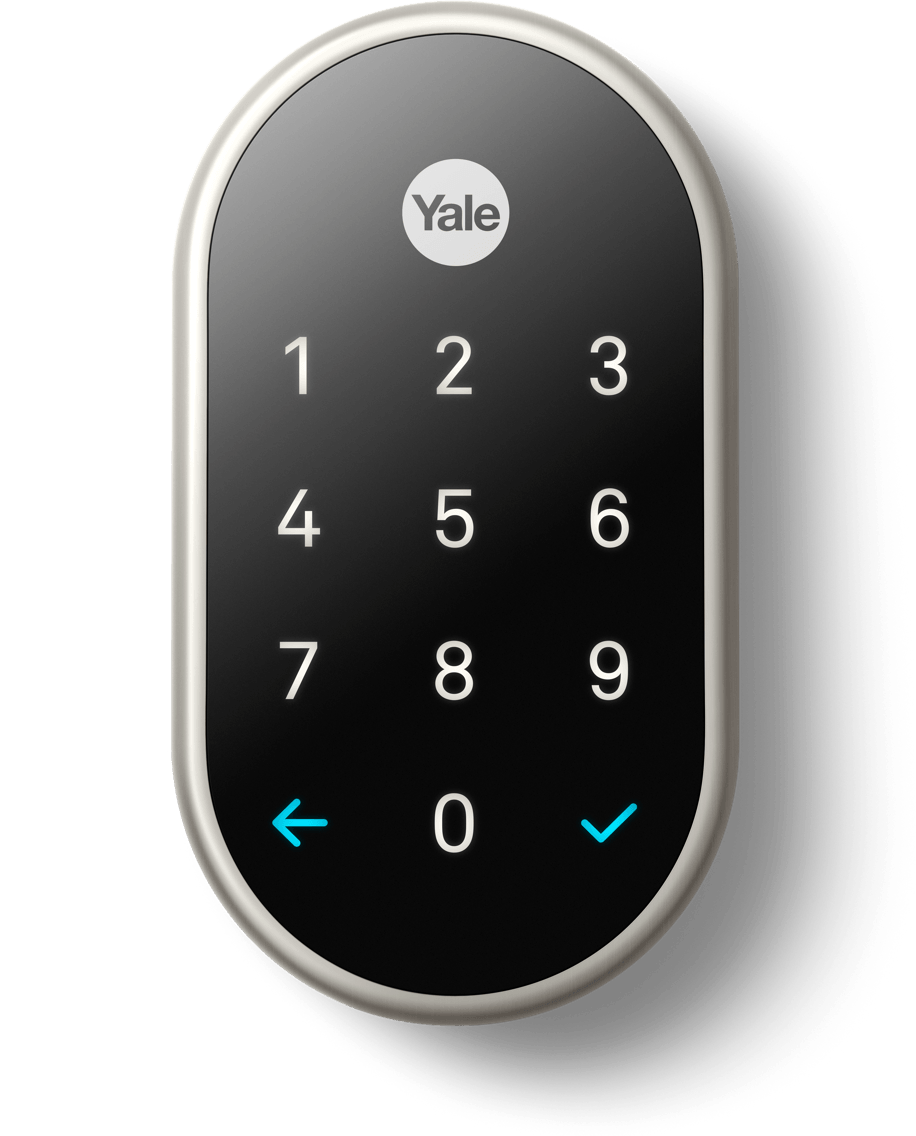

- Satin Nickel

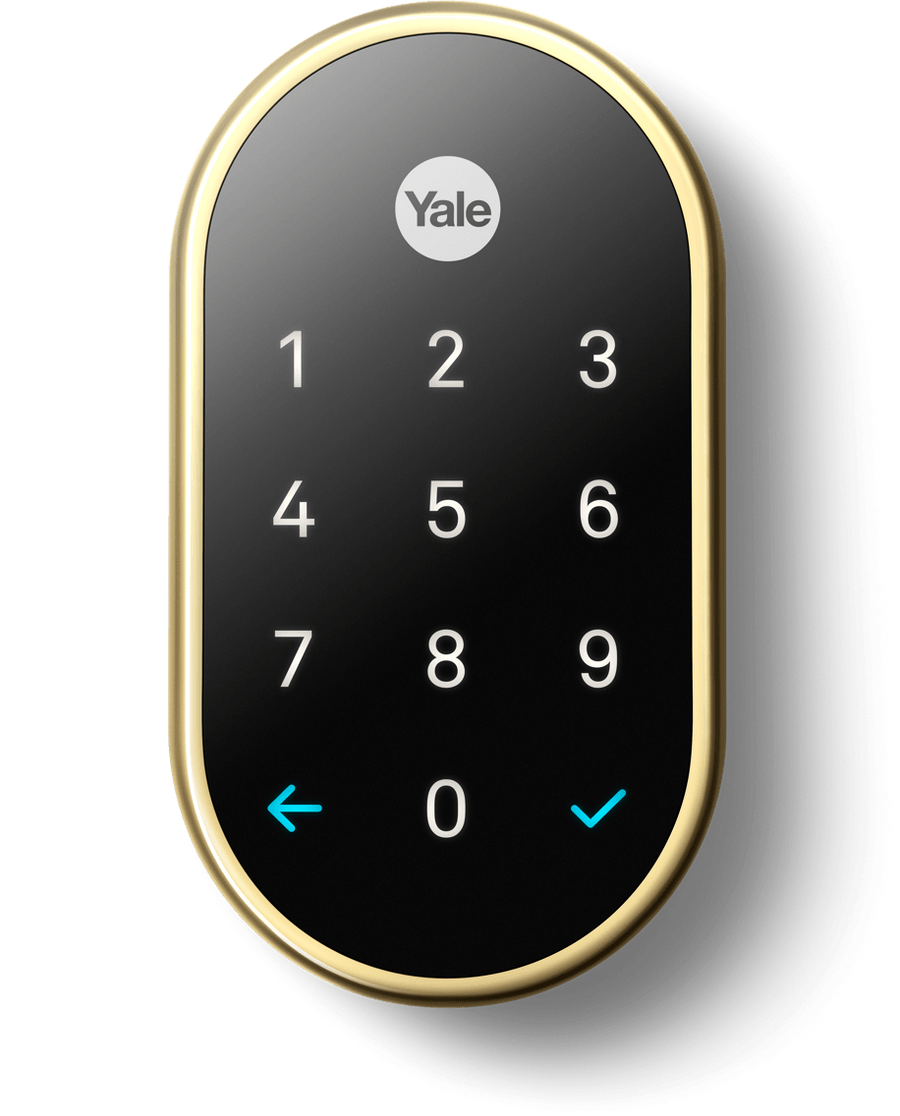

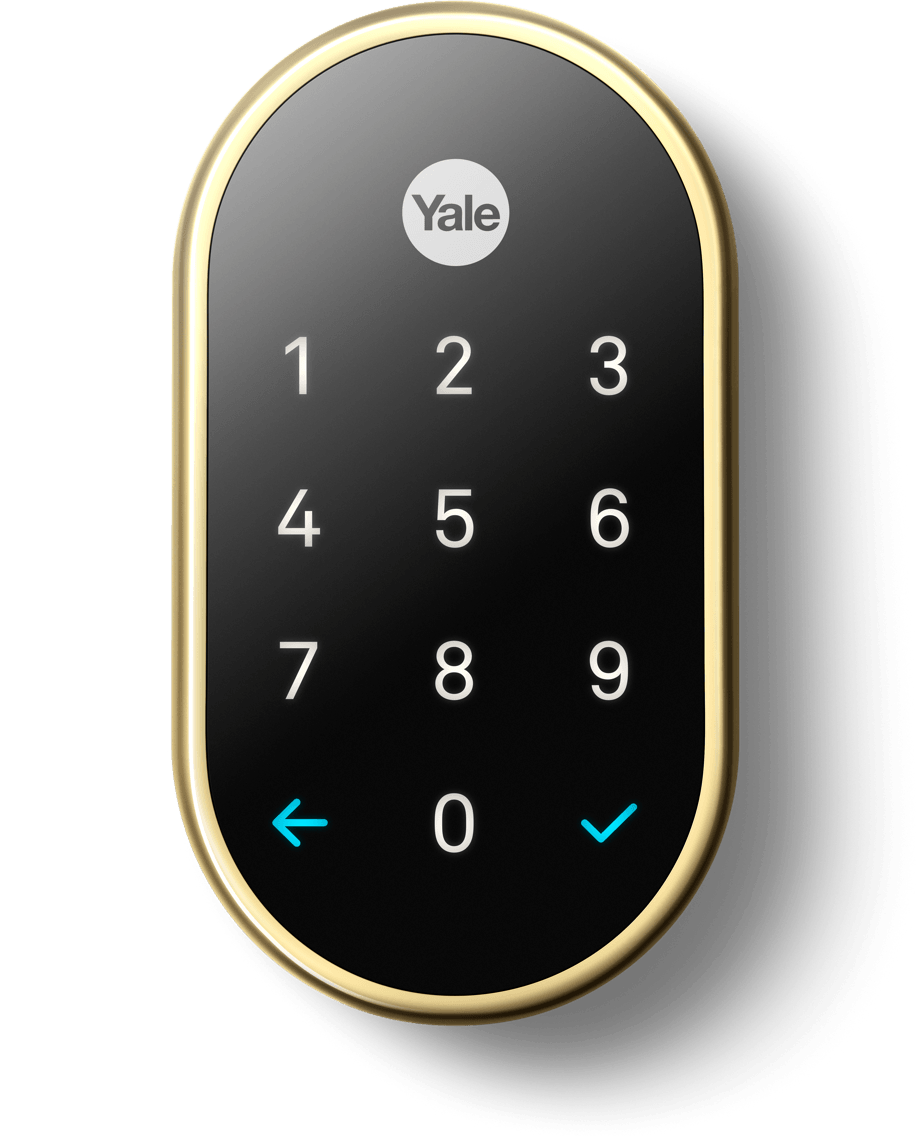

- Polished Brass

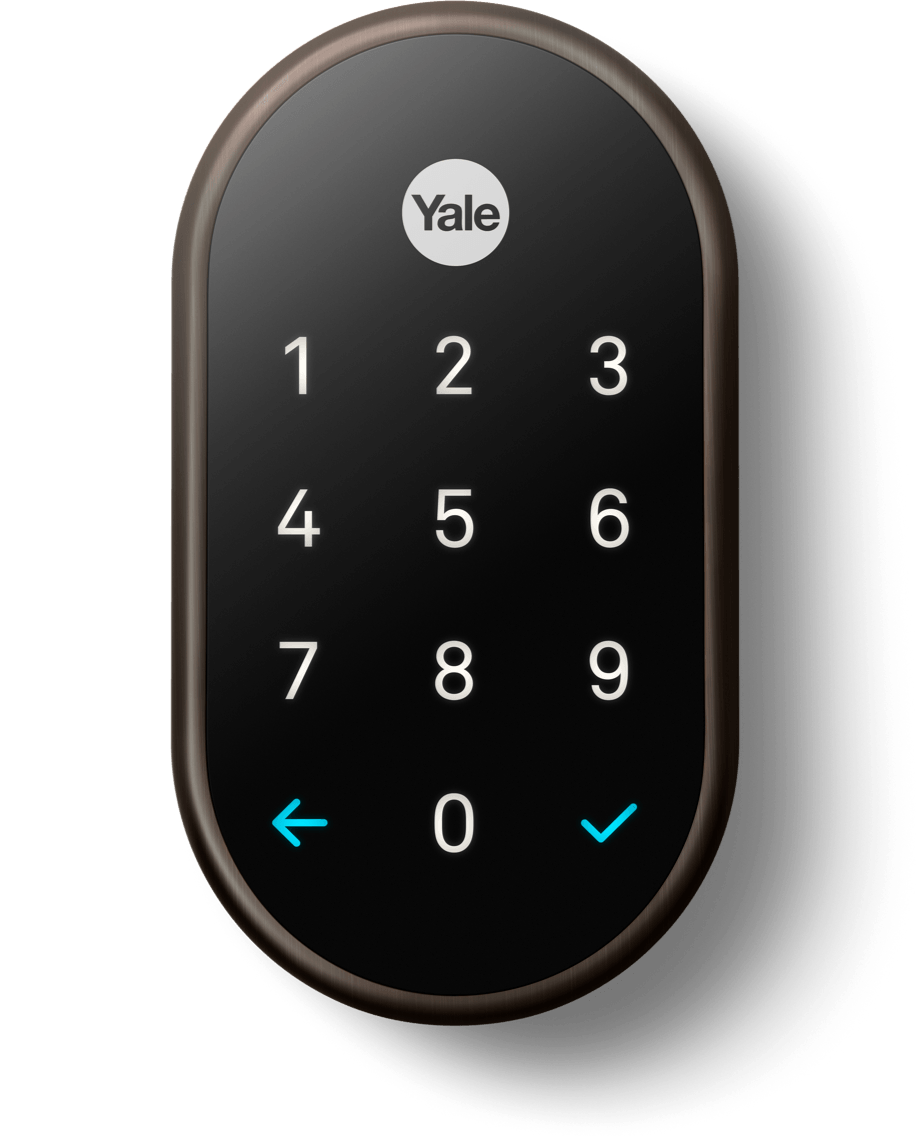

- Oil Rubbed Bronze
TEMPERATURE
Outside temperature range: –22° to 140°F (–30° to 60°C)
Battery temperature range: 14° to 131°F (–10° to 55°C)
GREEN
RoHS compliant
CERTIFICATION
Certified ANSI/BHMA A156.36,
Grade 2
LANGUAGES
English
Spanish
French
WARRANTY
Lifetime limited warranty for finish and mechanical; two years for electronics.
PRODUCT REQUIREMENTS
- To control the Nest × Yale Lock from your phone, you need a Nest Guard or Nest Connect. Learn more at HERE - Requires a compatible phone or tablet with the free Nest app and Bluetooth 4.0. Nest Connect requires an indoor outlet. For more info, visit HERE - Remote access using the Nest app requires creation of a Nest Account and acceptance of Terms of Service, which can be found at HERE - Some features, including mobile alerts, remote control and custom schedules, require the Nest app, working internet and Wi-Fi, and a Nest Connect or Nest Guard. - Requires 4 AA non-rechargeable batteries (included). If batteries become depleted, you can unlock the door using a 9V battery for power.
CONNECTIVITY REQUIREMENTS
- The Nest × Yale Lock requires a Nest Guard or Nest Connect (not included with the standalone lock) to connect to the internet over Wi-Fi, enabling remote access with the Nest app. - Requires Wi-Fi 802.11b/g/n (WEP, WPA, WPA2 encryption supported).

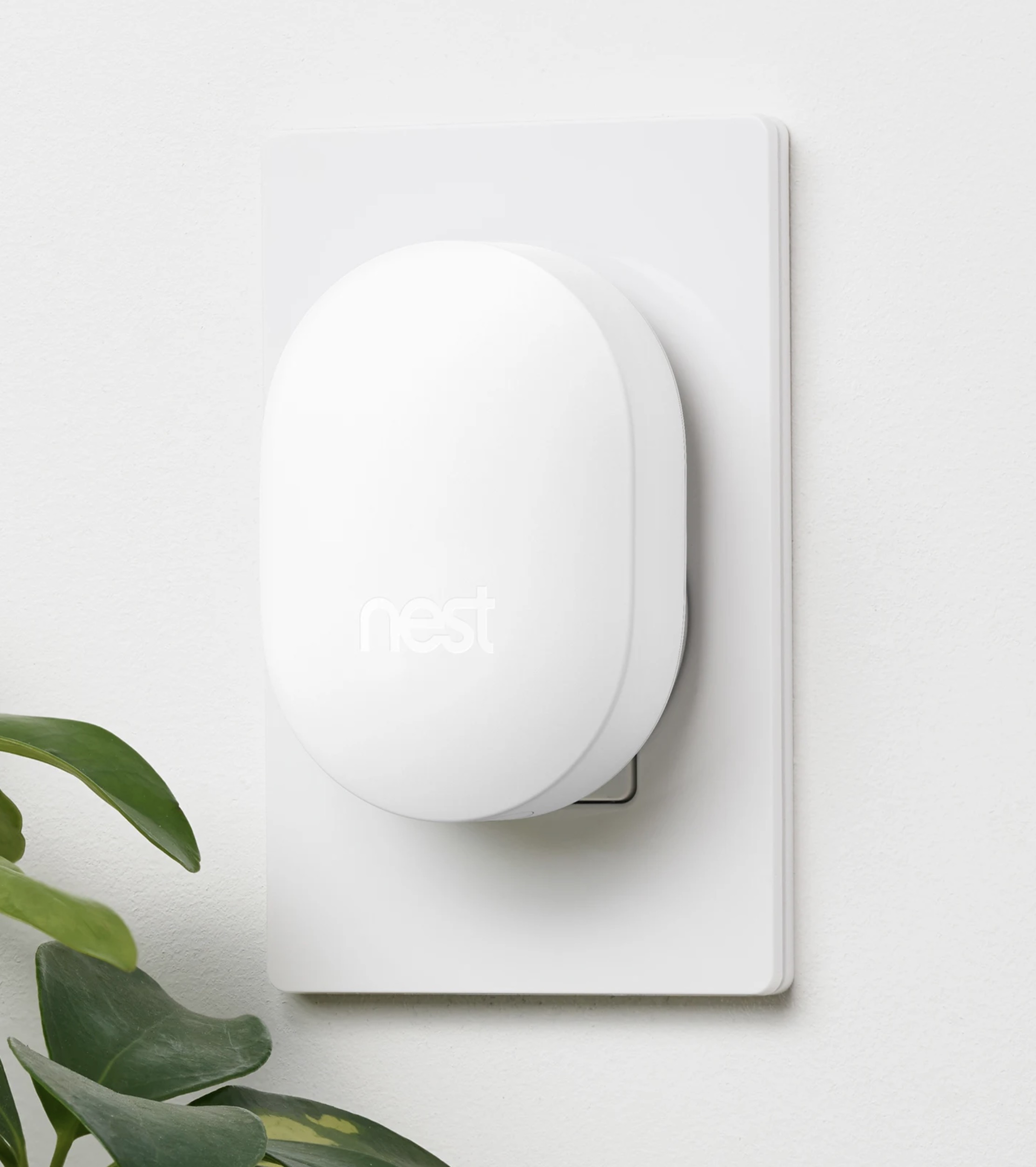

NEST CONNECT
DIMENSIONS
- Length: 3.1 in (7.9 cm)
- Width: 2.2 in (5.6 cm)
- Depth: 1.2 in (3.0 cm) without prongs, 1.8 in (4.6 cm) with prongs
WEIGHT
0.98 oz (27.78 g)
POWER
- Requirements: Built-in rechargeable lithium-ion battery
- Input: 100-240 V∼50-60Hz 0.12A
LIGHT
LED light
COLOUR
White
TEMPERATURE
32° to 104°F (0° to 40°C)
Indoor use only
CERTIFICATION
UL 60950-1, Information Technology Equipment
CAN/CSA-C22.2 NO. 60950-1, Information Technology Equipment
WIRELESS
- Wi-Fi 802.11 b/g/n, 2.4GHz (WPA-PSK, WPA2-PSK, WEP encryption supported)
- Bluetooth Low Energy (BLE)
- 802.15.4 @ 2.4GHz
WARRANTY
Comes with a 2-year limited warranty
GREEN
- Contains no hazardous substances
- RoHS compliant
- REACH compliant
- Recyclable packaging
REQUIREMENT
- Wi-Fi connection with internet access - Requires an indoor outlet and a compatible phone or tablet with the free Nest app and Bluetooth 4.0. For more info, visit nest.com/requirements.
