Asus Rog Strix Z390-e Gaming
ROG STRIX Z390-E GAMING
ROG STRIX Z390-E GAMING
Intel Z390 LGA 1151 ATX gaming motherboard with Aura Sync RGB, 802.11ac Wi-Fi, DDR4 4266z+, dual M.2 with heatsinks, SATA 6Gbps, HDMI, and USB 3.1 Gen 2
- LGA1151 socket for 9th/ 8th Gen Intel® Core™ desktop processors
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
- Comprehensive cooling: Dual onboard M.2 heatsink, water-pump header, fan-extension header and a MOS fan with bracket
- 5-Way Optimization: Automated system-wide tuning, providing AI overclocking and cooling profiles tailor-made for your rig
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C connectors
ROG Strix Z390-E Gaming amps the power delivery and stacks a comprehensive set of cooling options to tame Intel's latest CPUs. Together with a wealth of enhancements, including one-click optimization, the latest connectivity and futuristic styling with onboard illumination, ROG Strix Z390-E Gaming makes a formidable foundation for ATX gaming builds that go above and beyond.
DETAILS
DETAILS
SOLID HARDWARE SPECS FOR GAMING AND MORE
With comprehensive cooling options and upgraded power delivery to fuel CPUs with more cores, plus support for faster memory and storage, ROG Strix Z390-E Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.
COOLING
ROG Strix Z390 Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS
CPU
CPU FAN HEADER
AIO PUMP FAN HEADER
WATER PUMP HEADER
M.2
M.2 HEATSINK
M.2 FAN
CHASSIS
4-PIN PWM/DC FAN HEADER
FAN EXTENSION HEADER
VRM
MOS FAN WITH FAN HOLDER
VRM HEATSINK & THERMAL PAD
POWER DESIGN
Digital power control and an array of DrMOS power stages ensure the ROG Strix Z390 Gaming has the muscle to control Intel's latest CPUs.
HIGH QUALITY CHOKE AND CAPS
Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.
MEMORY AND STORAGE - DUAL PCIE 3.0 M.2
ROG Strix Z390-E Gaming features dual M.2 slots. One slot supports both SATA and PCIe 3.0 x4 modes, and the other slot supports PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.
DDR4 OC 4266MHZ+
To provide Intel's latest CPUs unfettered access to memory bandwidth, motherboard trace routing has been reimagined with the ROG Strix Z390-E Gaming. Integrated OptiMem II technology carefully maps memory signal pathways across PCB layers to reduce vias, and it also adds shielding zones that significantly reduce crosstalk. To further enhance overclocking headroom for fully stacked memory configurations, a highly customized T-Topology layout delivers time-aligned signaling.
NETWORKING
INTEL INTEGRATED ULTRA WI-FI SUPPORT
ROG Strix Z390-E Gaming features Intel 802.11ac Wi-Fi with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps.* In fact, its integrated Wireless-AC 9560 Wi-Fi adapter pushes wireless data up to 2X faster than other Wi-Fi solutions — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9560 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.
INTEL GIGABIT ETHERNET
ROG Strix Z390-E Gaming features Intel Ethernet (I219-V), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.
AUDIO
SUPREMEFX
Shielded Audio, Superior Sound, Immerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.
AUDIO COVER
Effective shielding against electromagnetic interference preserves the integrity of audio signals for the best sound quality.
AUDIO-LINE SHIELDING
Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
DUAL OP AMPLIFIERS
With two op-amps onboard you're able to pump exceptional audio to your favorite cans, with 32-600Ω-headphone impedance for great flexibility.
PREMIUM NICHICON™ AUDIO CAPACITORS
Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.
HARDWARE
SOLID HARDWARE SPECS FOR GAMING AND MORE
With comprehensive cooling options and upgraded power delivery to fuel CPUs with more cores, plus support for faster memory and storage, ROG Strix Z390-E Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.
POWER DESIGN
Digital power control and an array of DrMOS power stages ensure the ROG Strix Z390 Gaming has the muscle to control Intel's latest CPUs.
High Quality Choke and Caps : Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.
Digi+ Power Control: The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.
DrMOS: The ROG Strix Z390-E Gaming's CPU VRM utilizes DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that Intel's latest processors demand.
Thermal Solution: The Strix Z390-E Gaming uses high-quality thermal pads to help transfer heat from the inductor and phase array to a heatsink that has ample surface area to deal with the power demands of all Coffee Lake processors. And for those who want to push their rig to the limit, the ROG Strix Z390-E Gaming bundles an additional fan and bracket that helps keep temperatures under tight control.
High Quality Choke and Caps: Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.
COOLER BY DESIGN
ROG Strix Z390 Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS
CPU Fan Header: A dedicated pair of PWM/DC fan headers for CPU coolers.
AIO Pump Fan Header: A dedicated PWM/DC header for self-contained water-cooling setups.

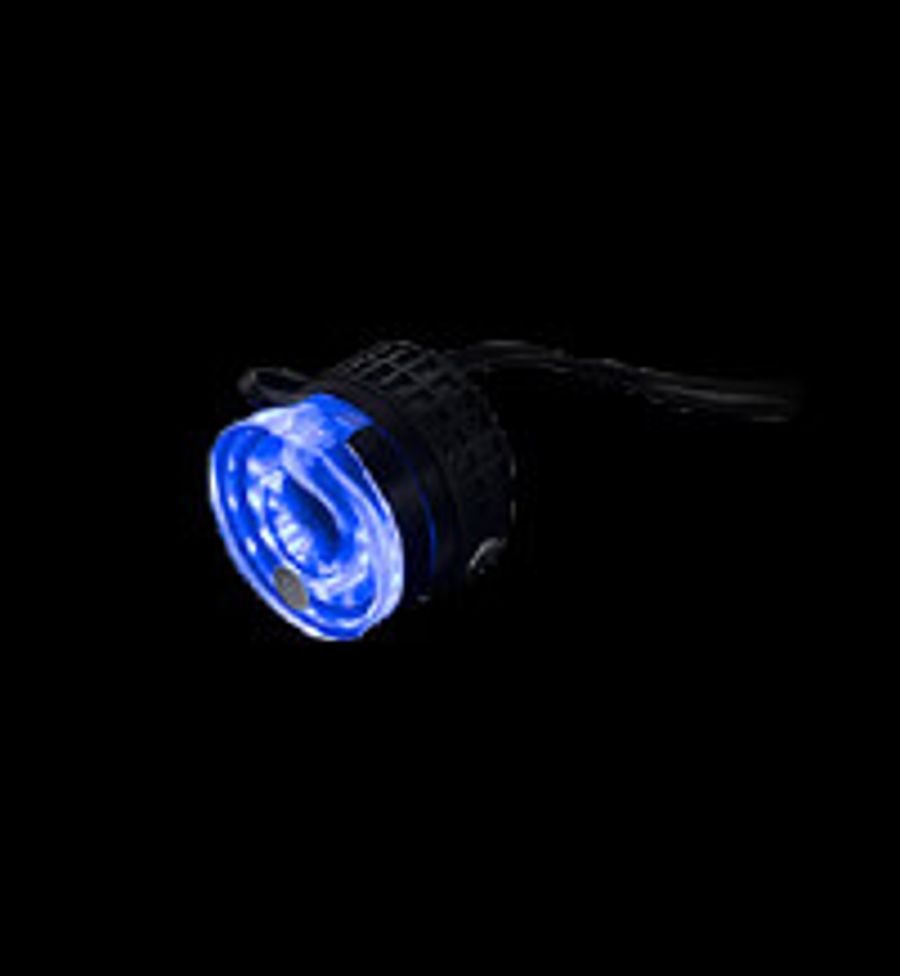

Water Pump Header: A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.
M.2 Heatsink: The M.2 heatsink perfectly chills an inserted M.2 SSD — for consistent performance and reliability.

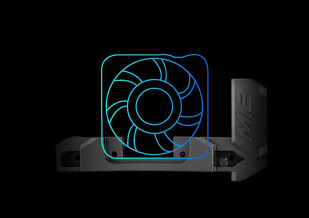

M.2 Fan: A dedicated M.2 fan header helps keeps temperatures low for improved performance and longevity.
4-pin PWM/DC
Fan Extension Header: Use the fan extension card to get three additional DC or PWM fan headers, plus three thermal-probe headers.* ASUS Fan Extension Card is a separate purchase.
MOS Fan with
VRM Heatsink & Thermal Pad: A high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink, and the heatsink's large cooling surface then chills the power phase.
MEMORY AND STORAGE
Dual PCIe 3.0 M.2: ROG Strix Z390-E Gaming features dual M.2 slots. One slot supports both SATA and PCIe 3.0 x4 modes, and the other slot supports PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.
DDR4 OC 4266MHz+: To provide Intel's latest CPUs unfettered access to memory bandwidth, motherboard trace routing has been reimagined with the ROG Strix Z390-E Gaming. Integrated OptiMem II technology carefully maps memory signal pathways across PCB layers to reduce vias, and it also adds shielding zones that significantly reduce crosstalk. To further enhance overclocking headroom for fully stacked memory configurations, a highly customized T-Topology layout delivers time-aligned signaling.
NETWORKING
Intel Integrated
Intel Gigabit Ethernet: ROG Strix Z390-E Gaming features Intel Ethernet (I219-V), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.
LANGuard: Featuring advanced signal-coupling technology and high-tolerance components, LANGuard provides consistent Ethernet performance and greater protection against static electricity and power surges.
CUSTOMIZATION
DESIGN, CUSTOMIZATION, AND SETUP
A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix Z390-E Gaming wonderfully easy.
ID DESIGN - CYBER FUSION
An illuminated ROG logo with a natural diffuse glow and onboard I/O shroud lighting with a futuristic cyber-text pattern gives ROG Strix Z390-E Gaming a unique and arresting design that communicates its gaming identity. The cyber outlook extends to the PCB and heatsink with subtle textures that contribute a premium look and feel.
THE ROG STRIX ECOSYSTEM AWAITS
Gear up with ROG Strix components, from graphics and sound cards, to mice and keyboards, and up your game with complementary aesthetics, control and compatibility — and enjoy more choice than any competing brand.
AURA SINC - OUTSHINE THE COMPETITION
ROG Strix motherboards deliver sterling performance and superior aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

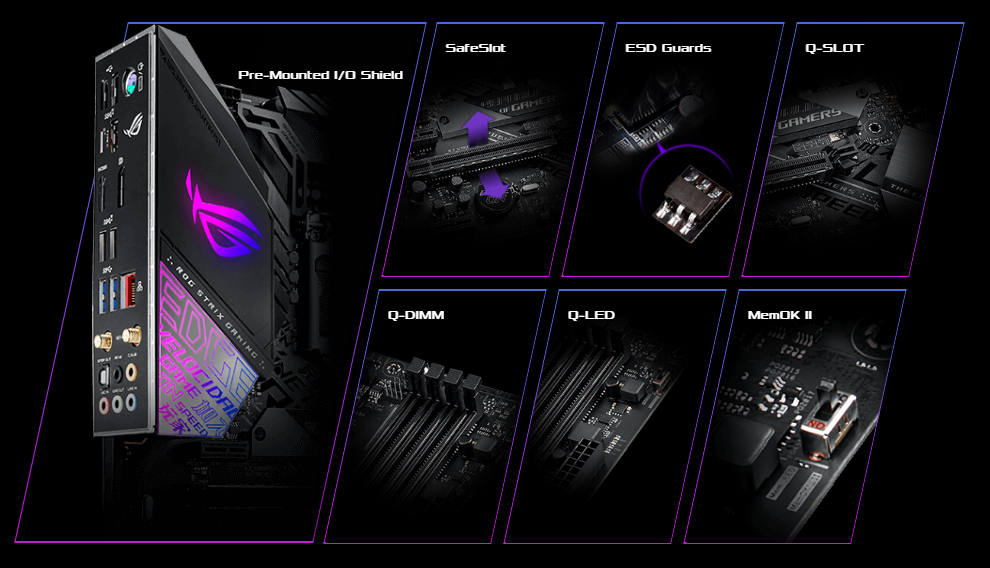

DIY FRIENDLY DESIGN

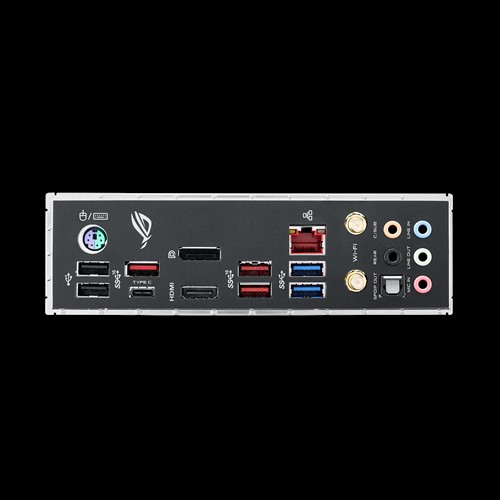

- Pre-mounted I/o Shield - Safeslot - - ESD Guards - Q-Slot - Q-Dimm - Q- Led - MemOk II
CERTIFIED COMPATIBILITY
Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. That's why ROG Strix undergoes an extensive certification program focused on providing the very best compatibility with the widest range of components and devices. Our extensive list of guaranteed-compatible components is an invaluable aid to building a ROG Strix gaming rig. It specifies thousands of compatible parts, and it includes a dedicated Qualified Vendor List (QVL) for memory — so you can build fuss-free.
THE POWER OF INTEL
INTEL Z390 CHIPSET
The Intel® Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
READY FOR SOCKET 1151 FOR 9TH / 8TH GEN INTEL® CORE™, PENTIUM® GOLD AND CELERON® PROCESSORS
This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
