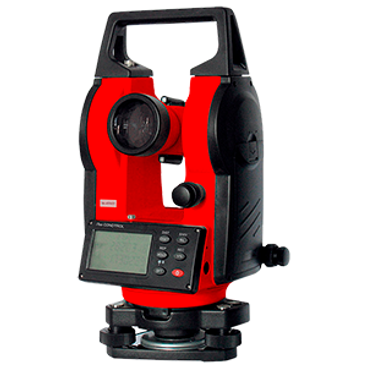

CONDTROL ITEO 10 — DIGITAL THEODOLITE

Introducing a trendsetting theodolite series iTeo CONDTROL (2"/5"/10"). Theodolites iTeo CONDTROL feature consistently high quality and easy operation. Therefore, the devices can be operated even by a non-professional. Thanks to a laser dot for fast and accurate self-leveling and 2 illuminated LCDs for indicating horizontal and vertical angles, the device ensures high precision measurements.

An integrated digital compensator provides vertical alignment within ±3'. Therefore, the user is relieved from constant monitoring and manual adjustment of the plate level. For greater convenience, the vertical angle readings are available in degrees or slope percentage.

Condtrol Condtrol Iteo 10

INFORMATION

ANGULAR FIELD OF VIEW OF THE TELESCOPE

1° 30

BATTERY

1500 mА

MINIMAL VIEWING DISTANCE

1.3 m

STORAGE TEMPERATURE

-30°....+60°C

ACCURACY OF ANGLE MEASUREMENT

10"

MAGNIFICATION

30х

MINIMUM READING OF ANGLE MEASUREMENT

1’’/5’’/10’’

OPERATING TEMPERATURE

-20°....+50°C

ANGLE MEASUREMENT RANGE

(0–360)

WEIGHT

4,4 kg

HEIGHT

160 mm

WIDTH

190 mm

DEPTH

324 mm
