Jamiepro Android Display
ANDROID DISPLAY
ANDROID DISPLAY - NON TOUCH + 3G
Our Android Displays are commercial models, specially designed and to use in a retail environment, online digital signage screens, info touch kiosk, etcetera. The Android has a standard some programm apps installed, like a browser, google play store, explorer, and some extra apps.
You can install your own application on it. For instance a digital signage app or kiosk web app, webstore, etcetera. We can also provide and help you with some retail app solutions, to help you to start your project. Find more about these apps at the software section.
INFORMATION
OPERATION SYSTEM
Android 4.4 - Rockchip RK3188 , Quad Core Cortex A9, 1.6G , Rooted
LCD PANEL RESOLUTION
1280*800
RESOLUTION INTERNAL VIDEOPLAYER
1920*1080
NETWORK OPTIONS
Wi-Fi , Mobile Network (3G-4G) , Bluetooth 4.0
MOUNTING OPTIONS

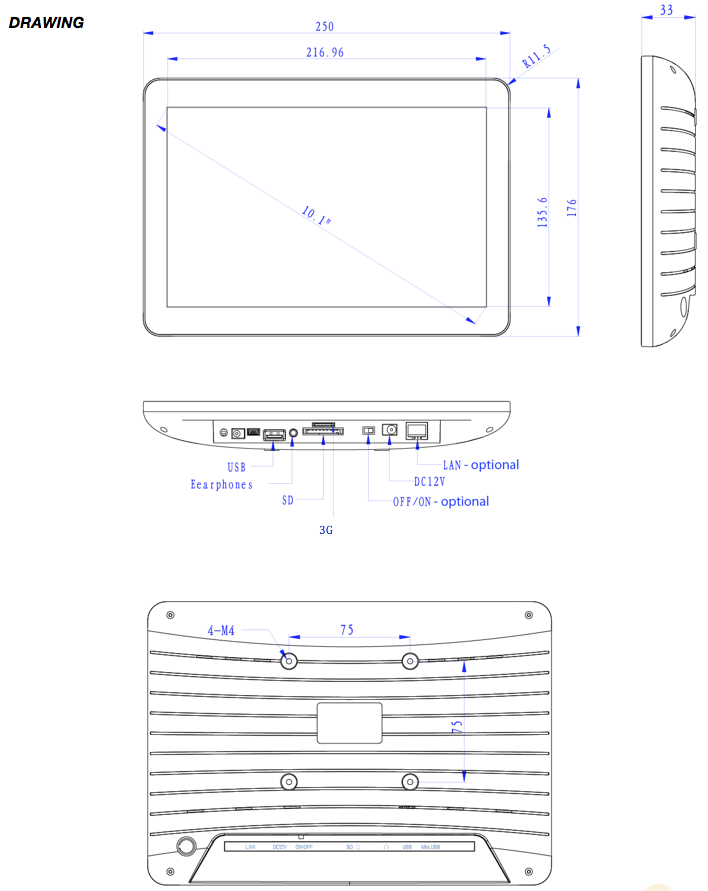

VESA 75x75mm - screwholes 4M
STARTUP
AutoStart by plug-in the power-adapter
MEMORY
RAM 1GB - Internal Memory 8GB (optional 2GB - 16GB)
POWER ADAPTER
AC 100/240V-50-60HZ, DC 12V/1A
SPEAKERS
Internal speakers: 2x 1W-8Ohm
BATTERY
N/A
USAGE
14/7
INTERFACE - CONNECTION PORTALS
SD/MMC Cardreader , USB Portal , SimCard Portal , Anttena for 3G , 3.5mm Jack
OPTIONAL FEATURES
Software Systems for Digital Signage & Kiosks , USB - LAN portal: LAN via USB-LAN adapter , Rockchip RK3288 , Capactive Touchscreen
KEY FETURES
- Touchscreen & Non-Touchscreen
- ROOTED ANDROID 4.4 sofware version
- WIFI network
- LAN (RJ45) input socket for a cable network connection (optional)
- 3G-4G connection
- This desk-model shape is available in: 10.1 / 13.3 / 15.6
SCREEN TYPE
LCD screen only - no touch
SCREEN SIZE
10.1inch
HOUSING TYPE
Closed Plastic Frame
PURPOSES
- Digital Signage Display
- Built-in ShopDisplays
- Advertisement Display
- Shelf-edge Display
- CounterDisplay
USAGE
Plug in the power adapter, and immediately the Android display will turn on (no need to push a ON-OFF button). You can hide the top and bottom bar in the Settings menu. Install your software easily and lets play!
FEATURES
- Auto Start when plug in the power adapter
- Rooted Android 4.4 / Chip RK3188 / RAM 1GB-IM 8GB / CPU Quad core cortex A9
- Non Touch
- 10.1" IPS LCD panel 1280x800 pixels (16:9 ratio)
- Internal HD videoplayer 1080P
- WIFI, Bluetooth, 3G/4G optional LAN
- SD cardreader and 1x USB portal
- Internal Speakers
- 3.5mm Jack Output
- Thin Closed Frame Plastic Housing
- Color housing standard Black, Optional white.
- 12V Power adapter with 2.5 meter long cable
- 14/7: Usage up to 14 hours a day
- Timer Clock Function (optional app)
HOW IT WORKS
Watch this video to have an more detailed explanation how these Android screens work.
