Lec Cf100l
CF100L
CF100L
Chest Freezer
100 Litre chest freezer with adjustable thermostat, counterbalanced lid & 30hr power cut safe time. Suitable for watertight outbuildings. A+ energy rating.
The appliance has a memory backup system. After about 20 minutes od operation when plugging the appliance into the mains socket, this memory function will be activated. When the power coms on again after a power failure, the appliance will recall the last setting and resume operation.
INFORMATION
FEATURES
- Total Gross Capacity (litres) : 99 Litres
- Total Net Capacity (litres) : 99 Litres
- Handle Type : Recessed
- Control Type : Electronic Control
DIMENSIONS
- Height (mm) Packed/Product : 885/850
- Width (mm) Packed/Product : 605/563
- Depth (mm) Packed/Product : 545/523
- Weight (kg) Packed/Product : 27/24
2FREEZER FEATURES
- Freezer Drawer Front Type : Moulded Basket
- No. of Drawers/Baskets : 1
- Digital Temperature Display : Yes
- Counterbalanced Lid : Yes
- Drainage Plug : Yes
- Ice Scraper : Yes
INSTALLATION
- Current (A) : 0.5
- Connection Rating (W) : 80
- Fuse Rating (A) : 13
- Total Power Load (kW) : 80
- Fitted 3 Pin Plug : Yes
- Lead Length : 1.7m
ADJUSTING THE TEMPERATURE AND FUNCTIONS
FREEZER SPECIFICATIONS
- Gross Capacity (litres) : 99 Litres
- Net Capacity (litres) : 99 Litres
- Freezing Capacity (kg/24 hrs) : 4.5
- Defrost Function : Manual
- Star Rating : 4*
- Fast Freeze : Yes
- Interior Light : LED
- Adjustable Thermostat :Yes
TECHNICAL SPECIFICATIONS
- CFC/HFC Free : Yes
- Refrigerant Type : R600a
- Energy Rating : A+
- Energy Consumption (Kwh/year) : 168
- Noise Level dB(A) : 41
- Replaceable Door Gaskets : Yes
- Power Cut Safe Time (hrs) : 30
- Mains Light : Yes
- Climate Class : N/SN/ST/T
- Ambient Temperature :10°C to 43°C

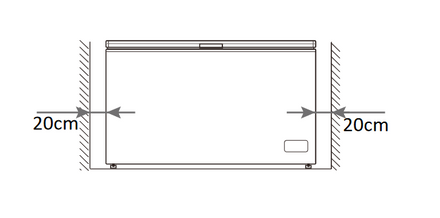

INSTALLATION DIAGRAM
DOWNLOADS
PARTS
1. Door Handle
2. Display and Control Panel
3. Basket
4. Drain Cover
5. Ice Scrapper
6. LED Light
