Divus. Art Of Visualisation For Building Automatio Divus Diva
DIVUS DIVA
DIVUS DIVA
Elegant design meets technology
With the elegant touch panel DIVUS DIVA you will experience the fusion of modern building visualization and media technology in a unique and stunning device - a true diva, just as the name promises.
The convincing accents of DIVUS DIVA, namely the sleek design, the fully flushed glass touch screen and the selectable design element in a variety of colors, stand for luxury, security and exclusivity
INFORMATION
SIZE
55,9cm (22").
MATERIAL
The panel body is milled from full aluminum, the multi-touch screen is made of glass.
LUMINOSITY / CONTRAST
400 cd/m² - 10.000 : 1
RESOLUTION
Full Hd 1920x1080
RESPONSE TIME / VIEWING ANGLE
3 ms - 170° H – 160° V
MTBF BACKLIGHT TUBES
20.000 h
RATING
IP20 according EN 60529
METHOD OF OPERATING
Resistive Window Touch with Multitouch function
PROCESSOR
Intel Celeron N2930 SoC, 1.83GHz - 2.16GHz burst, Quad-Core
CHIPSET
SoC
GURANTEE
24 Months*
OPERATING SYSTEMS
Multilanguage Windows 10 IoT
POWER COMSUMPTIONS
Max. 40 W
MEMORY
DDR3L-1333 up to 8GB total
LED STRIPES
Multi-Colour LED Stripes with radio control
WLAN / BLUETOOTH
WLAN or Bluetooth module via USB
DOWNLOADS
STORAGE MEDIUM
High speed MSATA Flash Module - 60GB capacity
LAN/ETHERNET
Realtek PCIe 10/100/1000 Mbit controller (ext)
USB
2 x USB 3.0 (1 x ext)
CPU TEMPERATURE
Surveillance onboard, WDT integrated
KEYBOARD/ MOUSE
No PS/2
FUNCTION

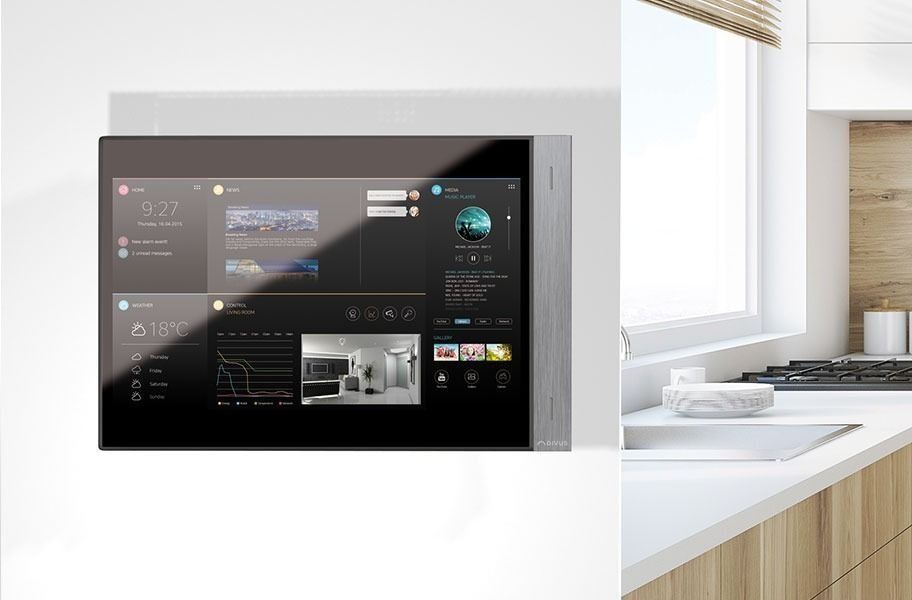

The 55.9 cm (22 ") Full HD LED display visualizes your building and allows you to control all functions via the flush-mounted multi-touch screen.
DESIGN
The convincing accents of DIVUS DIVA, namely the sleek design, the fully flushed glass touch screen and the selectable design element in a variety of colors, stand for luxury, security and exclusivity.
FEATURES
DIVUS DIVA combines design and technology at the highest level. The 22" Full HD LED display visualizes your building and controls all functions via the flush-mounted multi-touch screen.
