EXTERNAL ECOCOOLER
EXTERNAL ECOCOOLER – SMALL
With a maximum flow rate of 14,000m3/hr EcoCoolers contain an inbuilt fan and evaporative cooling pads. This evaporative cooler is designed to be externally mounted and should be used as part of a mechanical ventilation system with a paired extract fan.
The standard configuration is down flow, where air is supplied from the base of the cooler into the area that requires cooling.
INFORMATION
DOWN FLOW WEIGHT
Wet: 120kg
SIDE FLOW WEIGHT
Wet: 115kg
TOP FLOW WEIGHT
Wet: 115kg
DOWN FLOW SIZE
950mm x 1150mm x 1150mm
SIDE FLOW SIZE
950mm x 1290mm x 1150mm
TOP FLOW SIZE
1092mm x 1150mm x 1150mm
ELECTRICAL REQUIREMENTS
240v 50Hz. 12A start 8A running. External isolator fitted
CABINET
Injection moulded from polypropylene, UV stabilised and corrosion free
WATER REQUIREMENT
Water supply minimum 1 bar max 7 bar. Minimum supply 500L/hr
WARRANTY
Two years parts only warranty subject to the evaporative cooler being maintained by EcoCooling approved service engineers
VENTILATION MODE
In ventilation mode, the water circulation system is not in operation. The coolers supply fan is used to bring external ambient air into the building.
COOLING MODE
In cooling mode, the water circulation system is in operation and the cooling pads are wetted. The evaporation of water from the pads results in a reduction in air temperature.
ALTERNATIVE OPTIONS
External EcoCoolers are also available in a larger size (up to 18,000m3/hr), please see the ECP EcoCooler Large product page for more details. Alternatively, if you are looking at an installation where there is no outside plant space, call our installations team for advice about plant rooms or have a look at our ECT product ranges.
DOWNLOADS
INSTALLATION EXAMPLES

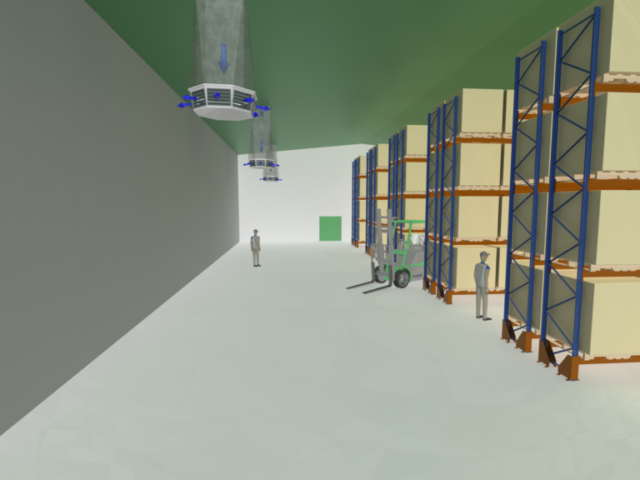

The external EcoCooler evaporative cooler range is ideal for industrial and commercial environments which require blanket or spot cooling.
