2N Access Unit M

2N ACCESS UNIT M

The 2N Access Unit M is the ideal reader for offices. Its controller is built-in and all you need to connect and power the device is a single UTP cable.

2N 2N Home Automation in Prague Apartment Building
2N 2N Home Automation in Prague Apartment Building

Thanks to its compact design, you can easily install the unit on a door frame. Choose from several versions – RFID, RFID combined with mobile access via Bluetooth, or RFID with a keypad, which is perfect for projects that require two-factor authentication.

- Slimline design
- Fastest mobile access
- Controller and reader in one

2N 2N Home Automation in Prague Apartment Building

INFORMATION

BRAND

2n

PRODUCTION

Made by Czech Republic

USE

Home automation

APPLICATIONS

Residential

APPLICATION AND USE IN CONSTRUCTION

Exterior / Outdoor, Interior

CHARACTERISTICS

- Reliable -Functional
- Innovative system control
- Easy configuration, and installation

POWER THE DEVICE

UTP cable

FEATURES & BENEFITS

SLIMLINE DESIGN

The reader’s slimline design is ideal for installation on the door frame at the entrance to a meeting room. However, it will come in handy wherever you’re short on space.

CONTROLLER AND READER IN ONE

Don’t worry about looking for a place to put the controller plus save on cabling. Our reader has full smart technology built in. In addition, it works without the need to communicate with a server.

QUICK INSTALLATION

Install the reader in 4 minutes. Drill three holes in the frame, feed through the UTP cable, connect the lock and screw it in place. It couldn’t be any quicker.

FASTEST MOBILE ACCESS

With our WaveKey Bluetooth technology, users only need 0.3 of a second to gain access. What’s more, this is the securest method of access on the market.

PERFECT FOR THE OFFICE OR OUTDOOR

The glass front panel will be scratch-free even after five years of daily use. With an IP55 protection coverage, you can install the reader outside. Despite all this, the units remain affordable.

ENCRYPTED TWO-WAY COMMUNICATION

The reader securely communicates with the web interface, with 2N® Access Commander administration software and the 2N® Mobile Key mobile application.

TECHNICAL PARAMETERS

TOUCH KEYPAD

- Technology: capacitive touch technology high touch layer sensitivity (0.1pF)
- Reliability: regular automatic calibration (SmartSence Auto-tunning) does not detect false touches on wet surface
- Signalling: configurable backlight intensity indication using multicoloured LEDs acoustic response for every keypad touch

INTERFACES

- Audio: buzzer, 1 W/8ohm
- PoE: 802.3af (Class 0–12.95 W)
- Power supply: PoE and/or 12 V/1 A DC
- Recommended cabling: Cat-5e or better
- Active switch output: 8 to 12 V DC/max 600 mA
- Tamper switch: native part of the 2N Access Unit M
- Passive switch: NO/NC contacts, up to 30 V/1 A AC/DC
- Supported protocols: DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog
- Inputs: 2 inputs - in passive/active mode (-30 V to +30 V DC) OFF = open or Uin> 1.5 V ON = short-circuit or Uin< 1.5 V

BLUETOOTH

- Version: compatible with Bluetooth 5.0 LE
- Range: (short - typically up to 9 ft*, long - typically up to 30 ft*) *distances should serve only as an approximate guide and may vary depending on the phone model and installation environment
- Security: RSA-1024 and AES-128 encryption
- RX sensitivity: up to 94.8 dBm
- Mode: up to 94.8 dBm  touch, tap in app

MOBILE APPLICATION SUPPORT

Android 6.0 and higher, iOS 12.0 and higher

MECHANICAL PROPERTIES

- Weight: max 1,1 pounds
- Cover rating: IP55 and IK07
- Storage temperature: -40°F to +158°F
- Operating temperature: -40°F to + 140°F
- Cover: tempered glass with durable plastic
- Operating relative humidity: 10%-95% (non-condensing)
- Dimensions (surface mounted): 1.969 (W) x 5.236 (H) x 1.063 (D) inch

RFID CARD READER

-Supported frequencies: 13.56 MHz variant 125 kHz and 13.56 MHz variant -125 kHz: EM4100, EM4102 -13.56 MHz: ISO14443A, ISO14443B, NFC support reads UID (CSN)

applications

2N® ACCESS COMMANDER

2N® Access Commander is available as a virtual machine. This makes it a highly scalable solution ideally suited to larger installations where a host server is already available. Being provided as a virtual machine means you can deploy 2N® Access Commander no matter what operating system is running on the server.

2N 2N Home Automation in Prague Apartment Building

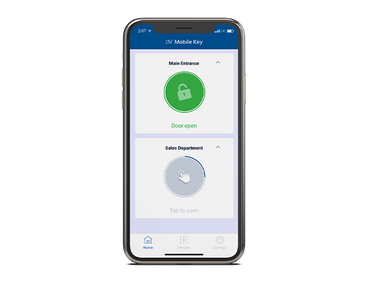

2N® MOBILE KEY

The 2N® Mobile Key application turns your mobile phone into an access card for passage through buildings. The application communicates with our selected 2N IP intercoms and access control units using NFC and Bluetooth technologies.

2N 2N Home Automation in Prague Apartment Building

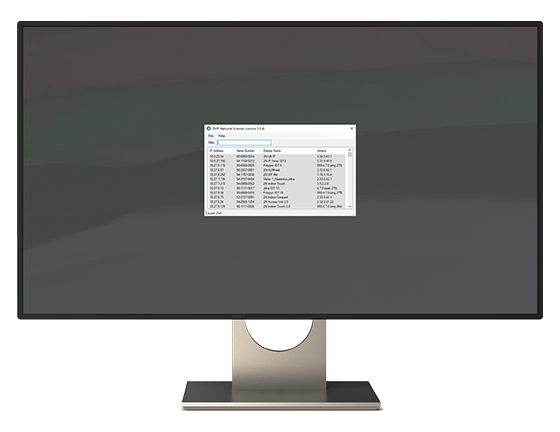

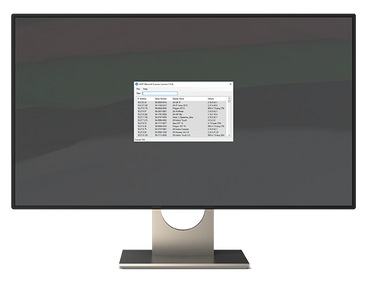

2N® NETWORK SCANNER

The 2N® Network Scanner is a simple, freely available application for locating 2N IP intercoms in the network. After searching the network, the application shows the type, firmware version and IP address of all intercoms found on a chart. This simplifies the administration and installation of intercom systems. Simply run the easy-to-use software to get immediate results.

2N 2N Home Automation in Prague Apartment Building

2N® REMOTE CONFIGURATION

Using the free 2N® Remote Configuration service, you quickly and easily set up and maintain 2N devices from the comfort of your office, without need to travel. Activate the service at My2N portal and use a VPN to remotely access a complete web interface of 2N intercoms and access units.

2N 2N Home Automation in Prague Apartment Building

2N® PARTNER API

Thanks to our detailed API documentation, the 2N® Partner API service allows you to integrate your systems and mobile applications with 2N services. Configure 2N devices and administer access credentials online, directly from your facility management system. Add the option of receiving video calls from the intercom, including the ability to open the door, to your own mobile application.
