Fisher&Paykel Integrated Single Dishdrawer™ Dishwasher
INTEGRATED SINGLE DISHDRAWER™ DISHWASHER
INTEGRATED SINGLE DISHDRAWER™ DISHWASHER
Tall, Sanitise
Place anywhere in your kitchen at bench height for easy loading and seamless integration. Features a premium stainless steel interior.
Eight wash cycles from Heavy to Light, including Auto, 60min and Glassware, Fits plates up to 310mm, with flexible racking to accommodate other large cookware, With soft-close drawers, and knock to pause convenience, Wi-Fi capability and a SmartHQ™ app for remote control and notifications
FEATURES
SEAMLESS INTEGRATION

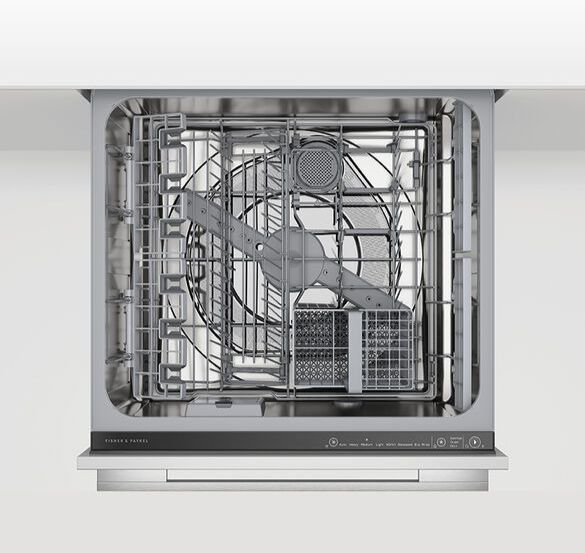

With the flexibility of ergonomic placement and function, single DishDrawer™ Dishwashers can be distributed throughout the kitchen to support patterns of use. The touch-sensitive control panel is located inside this Integrated model, leaving an uninterrupted exterior that blends seamlessly with surrounding cabinetry.
INFORMATION
BRAND
Fisher&Paykel
PRODUCTION
Made in Singapore
APPLICATIONS
Residential
USE
Kitchen appliances
MATERIAL
- Metal
- Wood
WASH PROGRAMS
-60 min -Auto -Eco -Glassware -Heavy -Light -Medium -Rinse
WATER CONNECTION
- Water pressure: 0.1 Mpa - 1 Mpa
- Water supply: 3⁄4" BSP (GB20)
INTERNAL TUB MATERIAL
Stainless steel
WASH CYCLES
Eight

PERFORMANCE
Noise on standard cycle top drawer : 43dBA
CHARACTERISTICS
- Modern design
- Seamless integration
- Easy-to-use functions
WARRANTY
2 Years
WASH PROGRAMS
8
CONSUMPTION
- Energy rating : 3 ticks
- Energy usage : 137kWh/year
- Water usage (per wash cycle) : 5.7L
DOWNLOADS
↓ Data Sheet
↓ Quick Reference guide
↓ User Guide
↓ Service & Warranty
↓ Installation Guide
TECHNICAL FEATURES
-Fan assisted drying -Flood protection -Flow through detergent dispenser -Quiet operation -SmartDrive™ technology -Soft close drawer
START OPTION
Up to 12 hours
SENSE
Spray arm sensing
POWER REQUIREMENTS
- Amperage : 4.2A
- Supply frequency : 50Hz
- Supply voltage : 240V
CONTROLS
- Child lock
- Electronic fault/Diagnostic indicator
- End of cycle beeps
- Energy saving delay start option of up to 12 hours
- Internal wash selector
- Intuitive capacitive touch controls
- Knock to pause
- Rinse aid indicator light
- Spray arm sensing
- Wi-Fi connectivity
WASH PROGRAM MODIFIERS
- Dry +
- Quiet
- Sanitise
- Wash modifiers : 3
ACCESSORIES
- Black stainless steel door panel : ADDD60STPB
- Contemporary round handle kit : AHS-OBDD-60S
- Contemporary square black handle kit : AHD3-OBDD-60B
- Contemporary square fine black handle kit : AHD5-OBDD-60B
- Contemporary square fine handle kit : AHD5-OBDD-60S
- Contemporary square handle kit : AHD3-OBDD-60S
- Cutlery basket
- Knife clip and multipurpose clip
- Stainless steel door panel : ADDD60STPX
CAPACITY AND LOADING
- Accommodates round plates up to : 310mm
- Adjustable height, foldable cupracks
- Fold down tines
- Pitch adjustable tines
- Place settings : 7
- Wine glass supports with stemware grippers
