Fisherpaykel Integrated Double DishDrawer™ Dishwasher, Tall, Sanitise
DISHDRAWER™ DISHWASHER, TALL ,SANITISE
DISHDRAWER™ DISHWASHER, TALL, SANITISE
Integrated Double DishDrawer™ Dishwasher, Tall, Sanitise
Integrates seamlessly into kitchen cabinetry. Each drawer features a premium stainless steel interior and operates independently, for flexible washing. With soft-close drawers, and knock to pause convenience
FEATURES & BENEFITS
SEAMLESS INTEGRATION
Install your DishDrawer™ Dishwasher into an existing kitchen space or integrate into kitchen cabinetry. The touch-sensitive control panel is located inside this Integrated model, leaving an uninterrupted exterior that blends seamlessly with surrounding cabinetry.
EASE OF USE

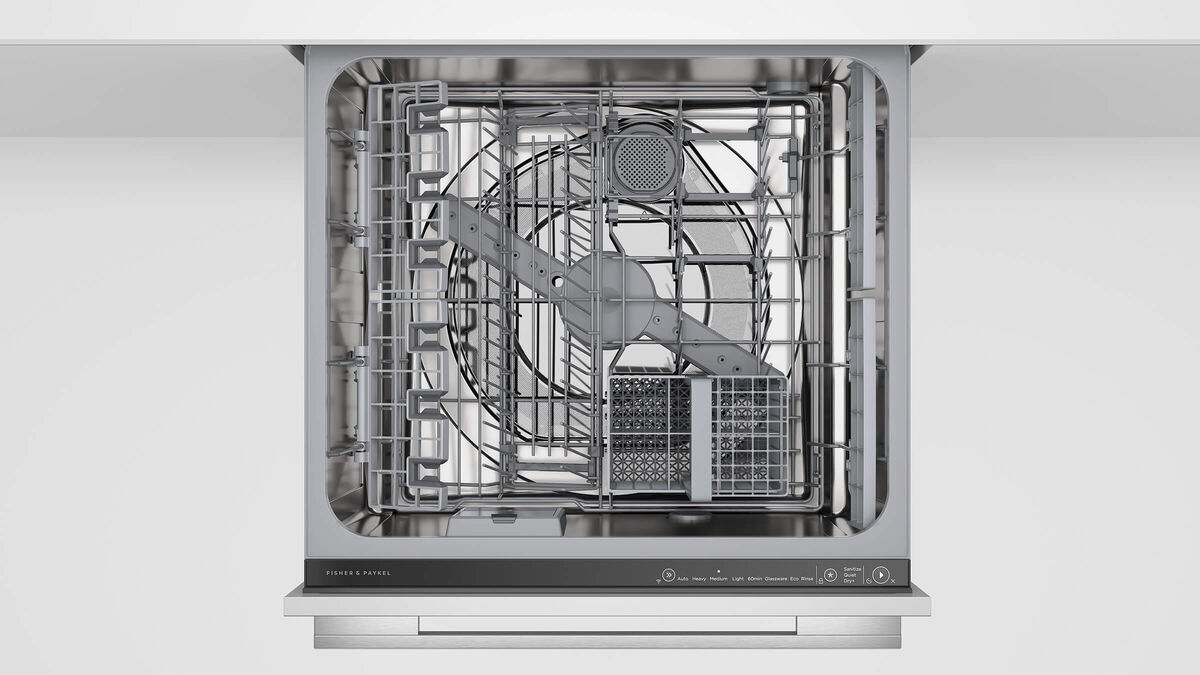

DishDrawer™ Dishwashers are beautiful to use with soft-close drawers. The tall top drawer fits your larger plates and dishes up to 310mm, while the bottom drawer is ideal for small washes. Flexible racking includes height-adjustable cup racks and wine glass supports.
TRUE HALF LOAD
Both drawers fit a true half load. Each drawer operates independently, so you can wash one load while stacking the other drawer, or wash simultaneously on separate cycles.
FLEXIBLE WASH OPTIONS
Eight wash programs including Auto, 60min and Glassware, while modifiers such as Sanitise, Dry+ and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance – perfect for late night washing.
DESIGN QUALITY
Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence.
KNOCK TO PAUSE
For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
EFFICIENT PERFORMANCE
With a 3 tick rating, this DishDrawer™ Dishwasher uses the water it needs without compromising on wash performance.
INFORMATION
BRAND
Fisherpaykel
PRODUCTION
Made in Singapore
MATERIAL
Matel
WARRANTY
Parts and labour(2 years)
PRODUCT TYPE
- Tall
- Sanitise
- Dishwasher
CONSUMPTION
- Energy rating(3 ticks)
- Energy usage(115kWh/year)
- Water usage (per wash cycle)(5.7L)
POWER REQUIREMENTS
- Amperage(8.5A)
- Supply voltage(240V)
- Supply frequency(50Hz)
PERFORMANCE
Noise on standard cycle top drawer
USE
- Dishwashing
- Kitchen Appliance
APPLICATIONS
-Residential -Hospitality -Commercial
CHARACTERISTICS
-Energy Efficient -Extra Cleaning Function -Flexibility Of Use -Easy Access -Low Decibel Rate.
DIMENSIONS
- Width : 599mm
- Depth : 571mm
- Height : 865 - 925mm
WASH PROGRAMS
-60 min -Auto -Eco -Glassware -Heavy -Light -Medium -Rinse
-Wash programs
WATER CONNECTION
- Water supply(3⁄4" BSP (GB20)
- Water pressure(0.1 Mpa - 1 Mpa)
WASH PROGRAM MODIFIERS
- Dry +
- Quiet
- Sanitise
- Wash modifiers
CAPACITY AND LOADING
- Fold down tines
- Place settings(14)
- Pitch adjustable tines
- Place settings per drawer(7)
- Adjustable height, foldable cupracks
- Accommodates round plates up to (310mm)
- Wine glass supports with stemware grippers
FEATURES
- Quiet operation
- Flood protection
- Soft close drawer
- Fan assisted drying
- SmartDrive™ technology
- Flow through detergent
- Internal tub material(Stainless steel)
INTEGRATED DOUBLE DISHDRAWER™ DISHWASHER, TALL, SANITISE
-Eight wash cycles from Heavy to Light, including Auto, 60min and Glasswar -Fits plates up to 310mm, with flexible racking to accommodate other large cookware -With soft-close drawers, and knock to pause convenience
CONTROLS
-Child lock -Electronic fault/Diagnostic indicator -End of cycle beeps -Energy saving delay start option of up to 12 hours -Internal wash selector -Intuitive capacitive touch controls -Knock to pause -Rinse aid indicator light -Spray arm sensing -Wi-Fi connectivity
ACCESSORIES
-Kickstrip -Cutlery basket -Stainless steel door panel(ADDD60DTPX) -Knife clip and multipurpose clip -Black stainless steel door panel (ADDD60DTPB) -Contemporary round handle kit(AHS-OBDD-60S) -Contemporary square black handle kit (Contemporary square black handle kit) -Contemporary square fine black handle kit(AHD5-OBDD-60B) -Contemporary square fine handle kit(AHD5-OBDD-60S) -Contemporary square handle kit(AHD3-OBDD-60S)
