Usm Haller Lock C - Modular Lockers
USM HALLER LOCK C - MODULAR LOCKERS
USM HALLER LOCK C - MODULAR LOCKERS

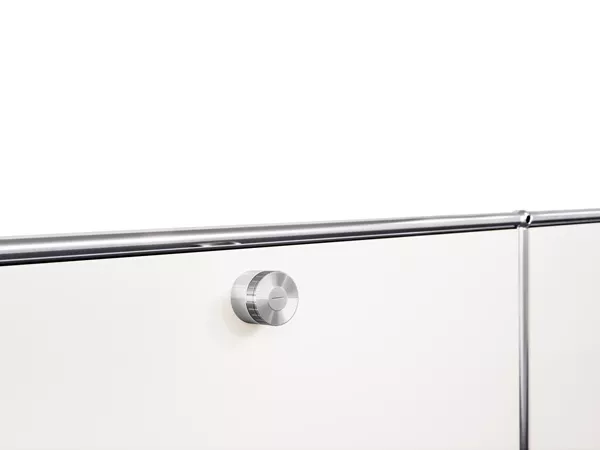

Lock C for USM Haller
With the new electromechanical lock C and the specially developed USM app, storage space and lock management take on a whole new dimension.
Thanks to its dual technology (RFID & Bluetooth), the lock can be operated easily using a key card or a smartphone, via the intuitive, user-friendly app.
INFORMATION
PUBLIC LOCKER MODE
A row of lockers is available to several users – they simply choose a free locker and lock it using the card or the app. Ideal for temporary usage in open spaces, for desk sharing or as a cloakroom in reception areas.
DIMENSIONS
- Diameter : Ø 43 mm
- Height : 34 mm
PERSONAL LOCKER MODE
The same locker is assigned to a certain person for a long time. As such, the locker owner can safely store their personal and confidential documents there.
RADIO FREQUENCY
- RFID 13.56 MHz
- Bluetooth 2.4 – 2.4835 GHz
SHARED LOCKER MODE
If one person is absent, access to the locker can be shared with selected individuals. For teams or project groups, one locker can be used as a shared storage location.
USE
- Lock System
- Interior Furniture
POWER SUPPLY
- 2 × ½ AA batteries, 3 V e.g. of the “Varta” brand with 950 mAh
- Already included in lock C on initial purchase.
- Service life: 15,000 locking cycles or 2 years
APPLICATIONS
-Residential -Hospitality -Commercial -Retail -Corporate -Office Spaces
FEATURES
Lock C is an electromechanical lock comprising the following components : a motor-driven lock mechanism, the mechanics, the battery supply, a circuit board with all electronic components and an antenna, LEDs for flashing signals, and a radio-permeable cap.
USM HALLER LOCK C
- Lock C
- Power User Kit
CLEAR AND SIMPLE MANAGEMENT
-With keys it’s always the same – you wonder where you last put them … or which key goes with which locker … and how to organise the management of lockers and their keys among employees… -The USM app gives users a clear overview and is easy to use. For the administrator, it serves as an intuitive tool not only for organising the locks, but also for keeping an eye on the battery level, updates and log files.
SPECIFICATIONS
USM Haller lock C takes storage space to a whole new level. Temporary, personal or with shared access. As such, existing storage space can be used in an even more versatile way.
EASY RETROFITTING
As with all USM system parts, the new lock C can be retrofitted into your existing USM furniture in keeping with the backward compatibility principle. The existing handle or lock handle can simply be replaced with the new lock C without having to replace the whole door.
