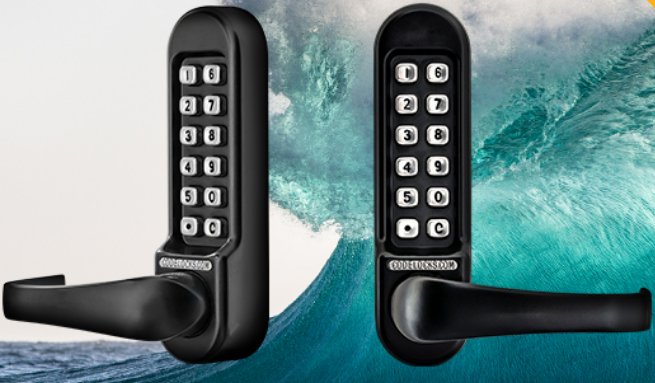

CL510 & CL515 Marine Tubular Mortise Latch

Marine Grade heavy duty mechanical locks with mortise latch, full size lever handles and code free option.

The Marine by Codelocks range features a selection of locks that have been specially enhanced to withstand harsh outdoor environments and coastal applications.

Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing for up to 1000 hours*.

Medium duty tubular mortise latch with ‘anti-shim’ plunger. Latch retracts by turning inside handle freely, or the outside handle after code input. The CL515 model provides a Code Free option. The outside lever will retract the latch freely until disabled.

INFORMATION

PRODUCTION

Made In USA

BRAND

Codelocks

BUTTONS

2 x 6

CODE CHANGE METHOD

Tumblers (Off Door)

CODE FREE OPTION

Yes

FINISH

Black

KEYPAD

12 stainless steel buttons

LATCH TYPE

Mortise Latch

LOCK MATERIAL

Zinc Alloy

HANDED

Non Handed - Locks will fit doors hung on the left or right

Codelocks Cl510 & Cl515 Codelocks

MARINE BY CODELOCKS

Marine by Codelocks

ORIENTATION

Vertical

KNOB

Ball Shape

SUITABLE FOR

- Internal
- External

RESISTANT AGAINST

- Moisture
- Salt spray

Codelocks Cl510 & Cl515 Codelocks

SPINDLE

Two part 516" (8mm) spring loaded spindle

CODES

Single Code - 2,047 non sequential code combinations available

DOOR THICKNESS

- 1 38" - 2 38"
- 35mm - 60mm

LOCK DIMENSIONS

- 7" x 1 78"
- 177 mm x 48 mm

DIMENSIONS

Codelocks Cl510 & Cl515 Codelocks
CL510 CL515
Codelocks Cl510 & Cl515 Codelocks
CL550 CL555

GUARANTEES

They’re the same tough, convenient, easy-to-use locks with a finish to match. Key benefits such as the limited lifetime guarantee** are still applicable to the Marine by Codelocks range, not to mention the renowned Codelocks technical support available

KEY FEATURES

- Salt spray tested 1000 hours*and Durable marine grade black finish
- Specially enhanced finish for harsh environments
- Large full size lever handles with return to door
- Ball shape knob available & Code Free access option
- Suitable for internal and external use
- Tumbler alignment for easy code change
- Large three coil lever return spring suitable for high traffic use
- Neoprene seals included
- Tested in accordance with BS EN 1634-1:2008
- Codelocks Fire Kit Packs can be fitted to latch locks for 30 or 60 minute fire doors.
