S Pure induction cooktop with integrated cooktop extractor - Recirculation / Minimalistic Design

Bora Pursu Cooktop Extractor

The BORA S Pure integrates seamlessly into any contemporary kitchen. Visually, it is characterised by the asymmetrical position of the air inlet nozzle, which gives the cooktop an extraordinary and modern appearance.

The operating panel is practically invisible in standby mode and scaled down to the essentials during operation through the use of intelligent lighting.

FEATURES

ULTRA-COMPACT DESIGN

The solution to all space issues: with its extremely compact dimensions, the BORA S Pure cooktop is the perfect choice for even the smallest of kitchens. It even fits in kitchen units with a width of just 60 cm. This opens up a whole new range of kitchen design options!

AUTOMATIC EXTRACTOR CONTROL

The extractor power level automatically adjusts itself according to current cooking conditions. There’s no need for constant manual adjustment, which means you can focus fully on your cooking.

OPTIMUM COOKTOP USE

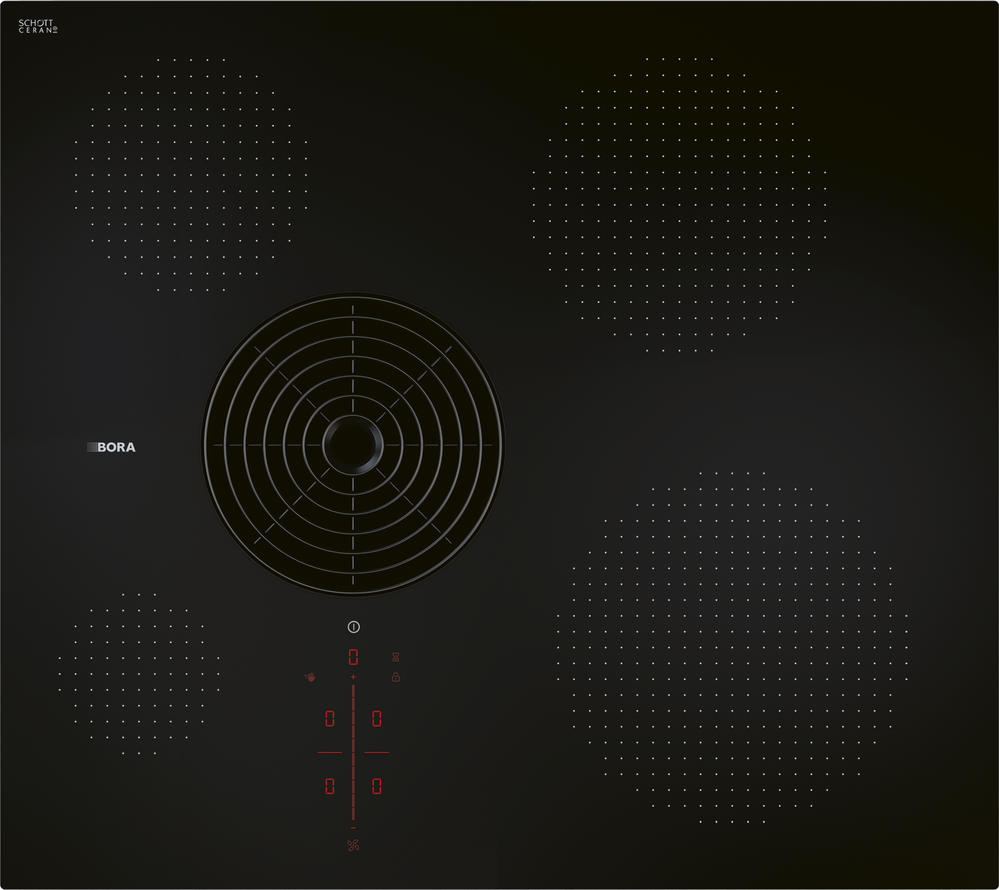

The BORA S Pure has four cooking zones of different sizes, suitable for accommodating pots and pans with all conventional dimensions. Two of the four induction coils have been specially developed for the BORA S Pure. This enables optimum use of the entire cooktop surface. Users can easily cook with up to four pots and pans of conventional sizes at the same time, no matter how large or small.

MINIMUM VOLUME

Always markedly quiet - even at high power levels: The reason lies in the optimal airflow and the use of an extremely low-noise fan. There are no distractions when cooking and no interruptions when entertaining.

MAXIMUM STORAGE SPACE

At under 200mm, the low installation height and integrated recirculation unit guarantee maximum storage space for pots and other kitchen utensils in the cupboard below. Even in 60-cm-deep kitchen units, no drawers need to be shortened in recirculation mode. A change from the norm.

EFFECTIVE ODOUR REMOVAL

Fresh, odourless ambient air in the whole kitchen:The air cleaning boxes and integrated filter solutions effectively remove unpleasant odours in recirculation mode - and for a long time.

SIMPLE CLEANING

All parts that come into contact with cooking vapours can be easily removed through the accessible, wide inlet opening. They can then be cleaned in the dishwasher, where they take up very little space.

INTUITIVE SCONTROL CONTROL

The unique vertical slider makes operation via the intuitive up and downwards movement of your finger or direct tapping with the fingertip even easier. All of the important functions are at your fingertips in a flash.

ESWAP - EASY FILTER CHANGE

In recirculation mode odours are neutralised by a highly efficient activated charcoal filter. To make life easier, the filter is changed from the top through the air inlet aperture – without having to remove drawers or plinth panels.

INFORMATION

PRODUCTION

Made In Austria

TYPE

S Pure

SALES TYPE

Pursa, Pursu

MANUFACTURER

BORA Vertriebs GmbH & Co KG

DOCUMENT ID

DoC-CE-SPURE-01

SURFACE MATERIAL

Glass ceramic

MULTIPHASE SUPPLY VOLTAGE

380 – 415 V 2N/3N

SINGLE-PHASE SUPPLY VOLTAGE

220 – 240 V

COOKTOP POWER LEVELS

1 – 9, P

MAXIMUM FILTER SERVICE LIFE

150 h (1 year)

FILTER MATERIAL

Filter panel with fine filter

SIZE OF EXHAUST OPENING

445 x 137 mm

REAR RIGHT COOKING ZONE SIZE

Ø 175 mm

FRONT LEFT COOKING ZONE SIZE

Ø 95 mm

FREQUENCY

50 – 60 Hz

Bora Pursu Cooktop Extractor

DIMENSIONS

- Height : 199 mm
- Width : 580 mm
- Depth : 515 mm

WEIGHT (INCL. ACCESSORIES/PACKAGING)

20,2 kg

SINGLE-PHASE POWER SUPPLY/FUSE PROTECTION

1 x 32 A (1 x 20 A / 1 x 16 A)

MAXIMUM POWER CONSUMPTION

7250 W (4200 W / 3600 W)

THREE-PHASE POWER SUPPLY/FUSE PROTECTION

3 x 16 A (standard connection)

FRONT RIGHT COOKING ZONE OUTPUT

2300 W

REAR LEFT COOKING ZONE SIZE

Ø 140 mm

FRONT RIGHT COOKING ZONE SIZE

Ø 210 mm

COOKTOP EXTRACTOR POWER LEVELS

1 – 9, P

TWO-PHASE POWER SUPPLY/FUSE PROTECTION

2 x 16 A

REAR RIGHT COOKING ZONE OUTPUT

1400 W

FRONT LEFT COOKING ZONE OUTPUT

400 W

REAR LEFT COOKING ZONE OUTPUT

900 W

PRODUCT DESIGNATION

Induction hob for building-in with down draft

FRONT LEFT COOKING ZONE POWER SETTING OUTPUT

600 W

FRONT RIGHT COOKING ZONE POWER SETTING OUTPUT

3000 W

REAR RIGHT COOKING ZONE POWER SETTING OUTPUT

2100 W

REAR LEFT COOKING ZONE POWER SETTING OUTPUT

1350 W

FILTER MEDIUM

Activated charcoal filter with ion exchanger
