Bora S Pure Induction Cooktop -Exhaust Air

S Pure induction cooktop -Exhaust air

S PURE INDUCTION COOKTOP -EXHAUST AIR

A surprising number of options – the ingenious space-saving solution for the kitchen

Bora S Pure Induction Cooktop  -Exhaust Air

features

SIMPLE CLEANING

All parts that come into contact with cooking vapours can be easily removed through the accessible, wide inlet opening. They can then be cleaned in the dishwasher, where they take up very little space.

LARGE OVERFLOW TRAY - COLLECTION VOLUME 3 LITERS

The large drip pan beneath the appliance can hold up to 3 litres of liquid with no risk of damaging the device. The drip pan can be easily removed from underneath without any need for specialised know-how.

ULTRA-COMPACT DESIGN

The solution to all space issues: with its extremely compact dimensions, the BORA S Pure cooktop is the perfect choice for even the smallest of kitchens. It even fits in kitchen units with a width of just 60 cm. This opens up a whole new range of kitchen design options!

MAXIMUM STORAGE SPACE

At under 200mm, the low installation height and integrated recirculation unit guarantee maximum storage space for pots and other kitchen utensils in the cupboard below. Even in 60-cm-deep kitchen units, no drawers need to be shortened in recirculation mode. A change from the norm.

COFFEE FUNCTION

The coffee function automatically controls the brewing of coffee in an espresso pot.

INTEGRATED GREASE DRIP PAN

If anything is spilled during cooking, the integrated drip tray safely catches both liquids and solids.

INTUITIVE SCONTROL CONTROL

The unique vertical slider makes operation via the intuitive up and downwards movement of your finger or direct tapping with the fingertip even easier. All of the important functions are at your fingertips in a flash.

OPTIMUM COOKTOP USE

The BORA S Pure has four cooking zones of different sizes, suitable for accommodating pots and pans with all conventional dimensions. Two of the four induction coils have been specially developed for the BORA S Pure. This enables optimum use of the entire cooktop surface. Users can easily cook with up to four pots and pans of conventional sizes at the same time, no matter how large or small.

AUTOMATIC EXTRACTOR CONTROL

The extractor power level automatically adjusts itself according to current cooking conditions. There’s no need for constant manual adjustment, which means you can focus fully on your cooking.

MINIMUM VOLUME

Always markedly quiet - even at high power levels: The reason lies in the optimal airflow and the use of an extremely low-noise fan. There are no distractions when cooking and no interruptions when entertaining.

SPACE-SAVING SOLUTION

BEST PERFORMANCE

Sophisticated technology for top performance: thanks to the induction coils specially developed for BORA, the entire cooktop surface can be optimally used. The four cooking zones of different sizes can accommodate pots and pans of all conventional dimensions. What’s more, with its quiet fan, the extractor is barely audible even on high power.

SIMPLE CLEANING

Thanks to the large, easily accessible extractor opening, all BORA S Pure parts that come into contact with cooking vapours can be simply removed for cleaning. What’s more, they take up little space in a dishwasher, so cleaning a cooktop extractor couldn’t be any more convenient!

SIMPLE OPERATION

Only with BORA can things be this simple: the BORA S Pure can be easily operated by tapping or swiping the touch slider up or down. All key operating functions can be effortlessly accessed in just a few touches.

DESIGN - ATTRACTIVE AND SOPHISTICATED

Minimalist design with flush integration: the BORA S Pure is a win for every kitchen! The asymmetrical position of the extractor opening is particularly eye-catching, giving the cooktop an extraordinary and modern look – further heightened by the discreet operating panel with intelligent lighting.

Product information

SURFACE MATERIAL

Glass ceramic

MULTIPHASE SUPPLY VOLTAGE

380 – 415 V 2N/3N

FREQUENCY

50 – 60 Hz

COOKTOP POWER LEVELS

1 – 9, P

REAR LEFT COOKING ZONE SIZE

Ø 140 mm

DUCT CONNECTION

BORA Ecotube

SINGLE-PHASE POWER SUPPLY/FUSE PROTECTION

1 x 32 A (1 x 20 A / 1 x 16 A)

FRONT LEFT COOKING ZONE OUTPUT

400 W

COOKTOP EXTRACTOR POWER LEVELS

1 – 9, P

MAXIMUM POWER CONSUMPTION

7250 W (4200 W / 3600 W)

COOKING ZONE SIZE

- Front Right Cooking Zone Size :Ø 210 mm
-Front Left Cooking Zone Size Ø 95 mm

REAR LEFT COOKING ZONE OUTPUT

900 W

REAR RIGHT COOKING ZONE SIZE

Ø 175 mm

SINGLE-PHASE SUPPLY VOLTAGE

220 – 240 V

FRONT RIGHT COOKING ZONE OUTPUT

2300 W

WEIGHT (INCL. ACCESSORIES/PACKAGING)

18,3 kg

THREE-PHASE POWER SUPPLY/FUSE PROTECTION

3 x 16 A (standard connection)

TWO-PHASE POWER SUPPLY/FUSE PROTECTION

2 x 16 A

REAR RIGHT COOKING ZONE OUTPUT

1400 W

FRONT LEFT COOKING ZONE POWER SETTING OUTPUT

600 W

REAR RIGHT COOKING ZONE POWER SETTING OUTPUT

2100 W

FRONT RIGHT COOKING ZONE POWER SETTING OUTPUT

3000 W

REAR LEFT COOKING ZONE POWER SETTING OUTPUT

1350 W

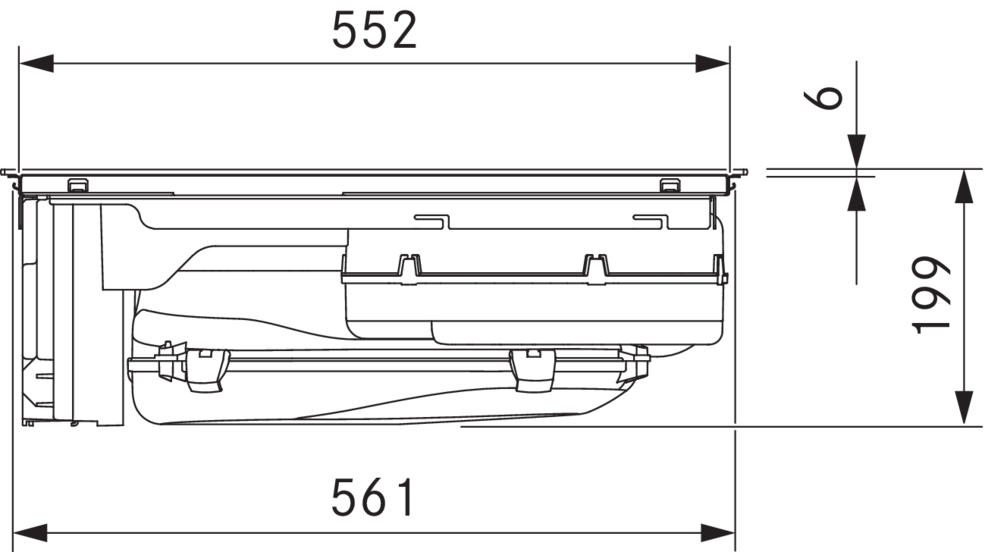

DIMENSIONS

-Width : 580 mm -Depth : 515 mm -Height : 199 mm
