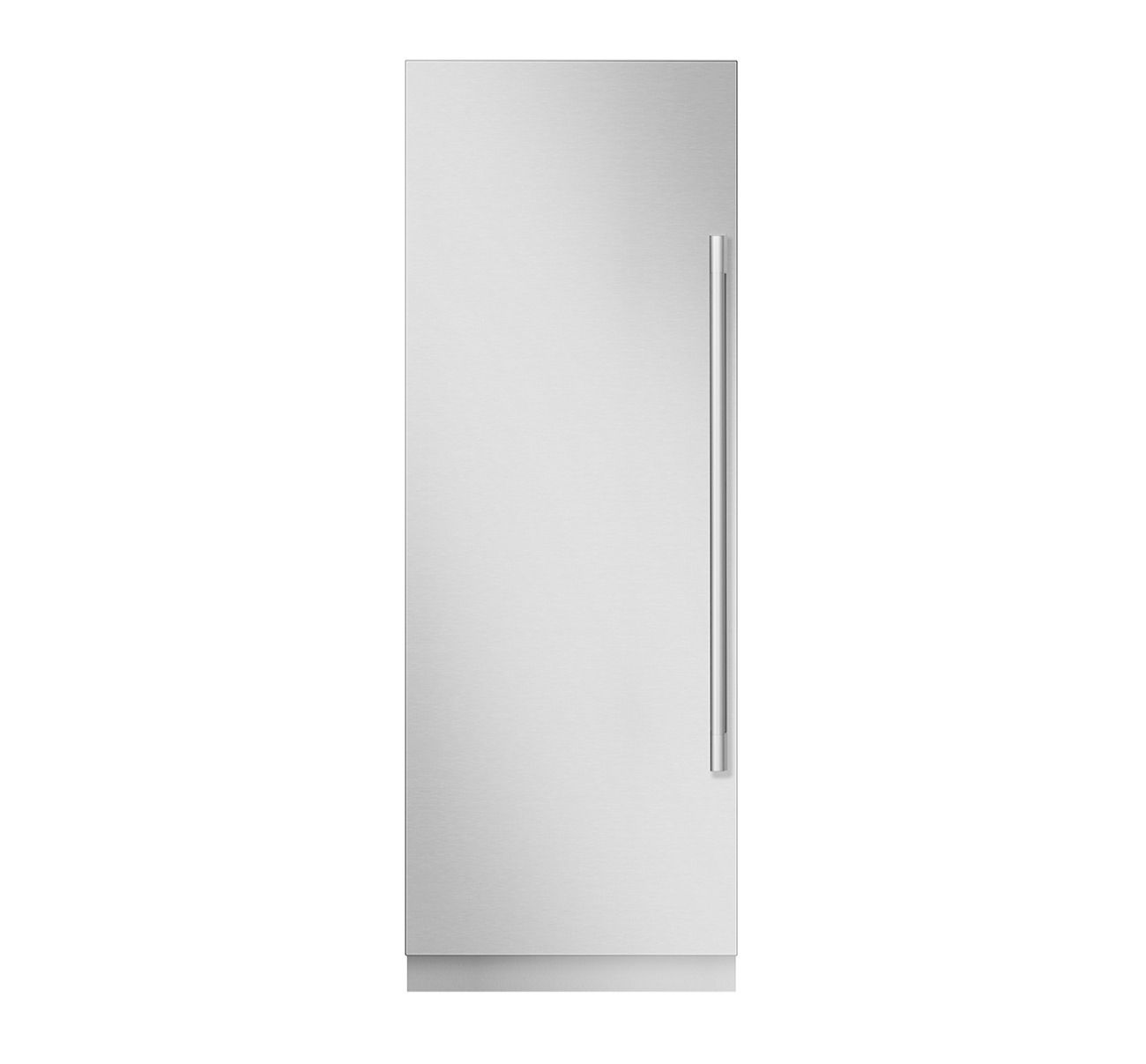

Signature Kitchen Suite 30-inch Integrated Column Freezer

30-INCH INTEGRATED COLUMN FREEZER

30-INCH INTEGRATED COLUMN FREEZER

Precise temperature control is the formula for keeping your favorite homemade soups and ice creams fresh and free of ice crystals. The unsurpassed capacity offers the opportunity to make as many of them as you want.

Signature Kitchen Suite 30-inch Integrated Column Freezer

FEATURES

Signature Kitchen Suite 30-inch Integrated Column Freezer

DISTINCTIVE ICE

The frustum ice shape gives an air of distinction while the removable clear bin holds up to 5.5 lbs., perfect for entertaining.

Signature Kitchen Suite 30-inch Integrated Column Freezer

BRILLIANT INTERIOR

The glass and engineered all-metal interior is not only beautiful, but designed to help the freezer stay within 1-degree of fluctuation of the set temperature by holding and transferring cold fast and efficiently.

Signature Kitchen Suite 30-inch Integrated Column Freezer

LARGEST CAPACITY IN THE INDUSTRY

As the love of good food grows, so grows the need for space. Fortunately, the Signature Kitchen Suite 30-inch Integrated Column Freezer is brilliantly engineered to provide the largest capacity column in the industry featuring 17.8 cu. ft. of storage capacity.

Signature Kitchen Suite 30-inch Integrated Column Freezer

SIGNATURE FIT INTEGRATED DESIGN

Paired together, the Signature Kitchen Suite 30-inch Integrated Column Refrigerator and 30-inch Integrated Column Freezer are brilliantly engineered to cleanly fit a 60-inch opening or an existing 59.5-inch opening – perfect for both new construction and replacement applications.

INFORMATION

PERFORMANCE

- Ice Plus : Yes
- Adaptive Defrost : Yes
- Water Filter (6 Months) : Yes
- Sabbath, Ice Plus, Demo, Icemaker On / Off, Power On / Off, Temp Control, Water Filter Reset, Smart Diagnosis, WiFi , Smart Grid

ECO FRIENDLY

Engineered to reduce environmental impact with HFC / HCFC free refrigerant, insulation and recyclable materials.

TECHNICAL DRAWING

- Front & Side View
- Door Open 90° & 115°

Signature Kitchen Suite 30-inch Integrated Column Freezer
Front & Side View
Signature Kitchen Suite 30-inch Integrated Column Freezer

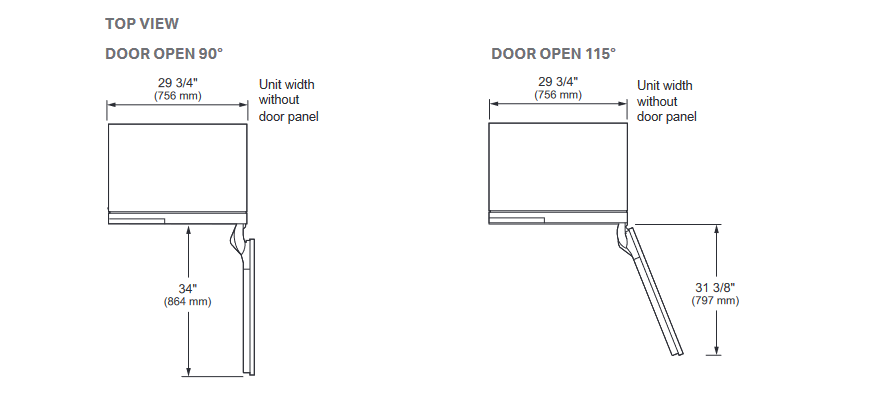

Door Open 90° & 115°

OPTIONAL ACCESSORIES

- Stainless Steel Panel / Handle / Toekick Kit : SKSPK305CS
- Retrofit Frame Kit : SKSFK800CS
- Replacement Water Filter : LT1000P-S
- Brushed Aluminum Handle Medium – 31 11/16" : SKSHK310HS
- Brushed Aluminum Handle Long – 48" (For Columns) : SKSHK480HS

BRAND

Signature Kitchen Suite

DOWNLOAD

↓ Data Sheet

Signature Kitchen Suite 30-inch Integrated Column Freezer

DIMENSIONS

- Height : Min. 83 1/2", Max. 84 1/2"
- Width : 29 3/4"
- Depth :  23 7/8"

WARRANTY

- Limited Warranty, Parts & Labor : 3 Years
- Limited Warranty, Sealed System and Compressor, Parts & Labor : 5 Years
- Limited Warranty Compressor, Parts Only : 10 Years

SIGNATURE FIT INTEGRATED DESIGN

24 -inch integrated Column Freezer

DISTINCTIVE ICE

Up to 505 lbs. Of Distinctive Ice

Signature Kitchen Suite 30-inch Integrated Column Freezer

 CAPACITY AND STORAGE

- Total Capacity (cu. ft.) ; 17.8
- Storage Shelves : 3 Adjustable w/LED Lighting, 1 Fixed
- Lift and Go™ Ice Drawer : 1 Soft Close / Self Close
- Lift and Go™ Storage Drawers : 3 Soft Close / Self Close
- Aluminum Framed Lift and Go™ Door Bins with Removable Inserts :  4 Adjustable
- Removable Ice Bucket Storage Volume : 5.5 lbs.


INNOVATION

- Remote Operations : Yes
- Inverter Linear Compressor : Yes
- Wi-Fi-Enabled for ThinQ® Control with iPhone / Android App : Yes

Signature Kitchen Suite 30-inch Integrated Column Freezer

STYLE

- Door Style : Panel Ready
- Interior Cabinet Finish : Metal

WEIGHT

- Net Weight : 403 lbs.
- Shipping Weight : 457 lbs.

 GENERAL FEATURES

- Digital Controls w/White LED Display : Yes
- Water Filter Indicator : Yes
- Ice Production (24 Hrs.) : 3.5 lbs.
- Ice On / Off : Yes
- Hidden LED Interior Lighting : Yes
- Operating Temperatures : -6° to 8° F
- Maximum Sound Level (dBA) : 39 dBA
- Star-K Certified Sabbath Mode : Yes
- ENERGY STAR® Certified : Yes

TECHNICAL SPECIFICATION

- Plug Type : 3-Prong
- Power Cord Length : 86 1/2"
- Required Power Supply : 115 V, 60 Hz, 15 Amp

INSTALLATION FEATURES

- Reversible Door : Yes
- Front Serviceable : Yes
- Anti-tip Bracket Included : Yes
- Four Point Front Adjustable with 8 Wheels : Yes
- Joining Kit for Dual Column Installation Included (SKSFJ800P) : Yes
- Attachment Method to Cabinetry : Top with No Visible Screws
