Signaturekitchensuite 36-inch Gas Cooktop

36-INCH GAS COOKTOP

36-INCH GAS COOKTOP

Solid Brass Burners

Even professional chefs would swoon over our Power Dual Burners at 18,500 BTUs. But these dynamic burners can also simmer gently.

Signaturekitchensuite 36-inch Gas Cooktop

FEATURES

Signaturekitchensuite 36-inch Gas Cooktop

RAPIDHEAT™ BURNER

This burner delivers 19,000 BTUs of power, allowing you to rapidly reach and maintain high temperatures for searing and stir-frying.

Signaturekitchensuite 36-inch Gas Cooktop

GRIDDLE PLATE

The non-stick coated griddle accessory provides an extra-large cooking surface for meats, pancakes or other food usually prepared in a frying pan or skillet.

Signaturekitchensuite 36-inch Gas Cooktop

WIFI-ENABLED

With burner monitoring and push notifications, you can make sure your cooktop is operating perfectly, even when you step away from the kitchen. You'll also be able to ensure everything is running smoothly with Smart Diagnosis.

INFORMATION

PRODUCT CODE

UPCG3654ST

COOKTOP SURFE

Stainless Steel

ENERGY SOURCE GAS

Natural Gas

NET WEIGHT

58.31 lbs.

ACCESSORIES

Griddle Plate

NUMBER OF BURNERS

5

DOWNLOADS

↓ Data Sheet

Signaturekitchensuite 36-inch Gas Cooktop

KNOB LIGHTING

Our knobs light up red when the burner is on so no simmer will go unnoticed.

INNOVATION

- Remote Monitoring : Yes
- WiFi-Enabled for ThinQ® Control with iPhone / Android App : Yes

Signaturekitchensuite 36-inch Gas Cooktop

WARRANTY

Limited Warranty : 3 Years

REQUIRED POWER SUPPLY

120VAC, 60Hz

REQUIRED POWER SUPPLY

- Left Rear : 9,100 / 9,100
- Right Rear : 5,000 / 5,000
- Center Rear (RapidHeat) : 19,000 / 15,000
- Left Front : 9,100 / 9,100
- Right Front : 12,000 / 9,500

COOKTOP FEATURES

- Sealed Gas Burners (Brass) : Yes
- Fuel Type : LNG / LPG
- Continuous Grates : 3
- Dishwasher Safe Grates  : Yes
- Cooktop Control Knobs with Red LED Back Lighting : Yes

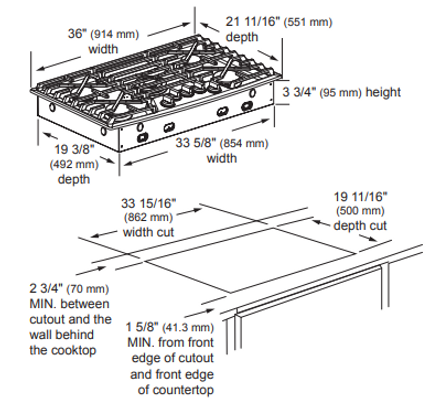

DIMENSIONS

- Overall Width : 914.4 mm
- Overall Depth : 550.9 mm
- Overall Height Including Grates : 104.8 mm

Signaturekitchensuite 36-inch Gas Cooktop

ENERGY SOURCE LP GAS

LP Gas

SHIPPING WEIGHT

83.89 lbs.
