Signature Kitchensuite PowerSteam Panel-Ready Dishwasher

POWERSTEAM PANEL-READY DISHWASHER

Signature Kitchensuite PowerSteam Panel-Ready Dishwasher

POWERSTEAM PANEL-READY DISHWASHER

While asserting itself as one of the most vital parts of your kitchen, our Panel-Ready Dishwasher easily disappears into your room’s design.

The paneled door is brilliantly engineered to safely slide away as you open it, allowing you to mount the dishwasher at any height while being fully hidden behind the panel.

And at 44 dBA it’s so quiet you’ll barely know it’s on. On the interior, you’ll find a water softening system and PowerSteam technology providing atomized water particles of steam produced by our patented steam generator. These particles reach the entire surface of items, making it gentle enough for delicate wine stems, but tough enough for stains and lipstick.

FEATURES

INTELLIGENT LIGHTING

LED lighting illuminates the interior while a beam of light shines information on the floor to let you know the status of the cycle.

POWERSTEAM® TECHNOLOGY

PowerSteam Technology offers maximum steam cleaning forfewer water spots, resulting in sparkling clean dishes.

WI-FI ENABLED FOR SMART CONTROL

Monitor cycle status and start cycles remotely, get notifications when a cycle is completed, and download and use specialized dishwasher cycles—all from a mobile device using the Signature Kitchen Suite™ app.

LODECIBEL™ QUIET OPERATION

Signature Kitchen Suite dishwashers are among the quietest on the market, so you can enjoy a powerful clean without disrupting your day.

EASY LOADING AND MAXIMUM FLEXIBILITY

The newly-enhanced EasyRack™ Plus system provides outstanding flexibility and convenience, adjusting to just about any load of dishes to help ensure optimal cleaning performance. The height adjustable 3rd rack provides more space and flexibility to fit virtuallyeverything from flatware to espresso cups.

INFORMATION

ENERGY USE

269 kWh/Year

WATER USE

2.9 (Gallons/Cycle)

BRAND

Signature Kitchensuite

NUMBER OF SPRAY ARMS

3 (Top, Upper, Lower)

DOOR STYLE

Panel Ready

ELECTRONIC CONTROLS

Top Control

TIME REMAINING INDICATOR

LED Light Beam

TUB MATERIAL

NeveRust™ Stainless Steel

TOTAL PLACE SETTINGS

14

FOLD DOWN TINES

Full Fold Upper & Lower

RACK HANDLE

Upper & Lower

LODECIBEL™ QUIET OPERATION

44 dBA

INLET WATER TEMPERATURE

120 °F min. - 149 °F max.

WATER PRESSURE

20 – 80 psi

DIMENSIONS

- Width : 23 1/2"
- Height : 32 1/16" – 34 7/16"
- Depth : 21 7/8"
- Depth with Door Open : 48"

WEIGHT

- Net Weight : 88 lbs approx
- Shipping Weight : 99 lbs approx

REQUIRED POWER SUPPLY

- 120 V
- 60 Hz
- 15 Amp

INSTALLATION CLEARANCES

Signature Kitchensuite PowerSteam Panel-Ready Dishwasher
Signature Kitchensuite PowerSteam Panel-Ready Dishwasher

WARRANTY

- Limited Warranty, Parts & Labor : 3 Years
- Limited Warranty on Control Board, Rack Parts, and Stainless Steel Door Liner or Tub, Parts Only : 5 Years
- Limited Warranty on Direct Drive Motor, Parts Only : 10 Years

TECHNICAL DRAWINGS

Signature Kitchensuite PowerSteam Panel-Ready Dishwasher
Back View
Signature Kitchensuite PowerSteam Panel-Ready Dishwasher

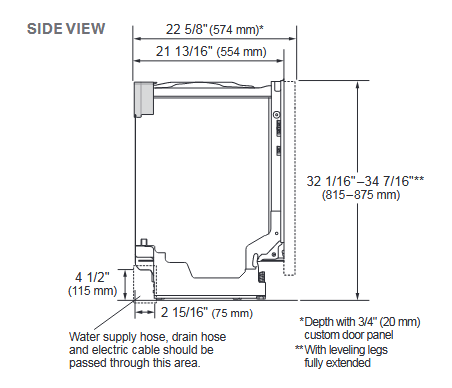

Side View
Signature Kitchensuite PowerSteam Panel-Ready Dishwasher
Custom Panel
