2N® IP STYLE SECURITY INTERCOM

2N® IP STYLE SECURITY INTERCOM

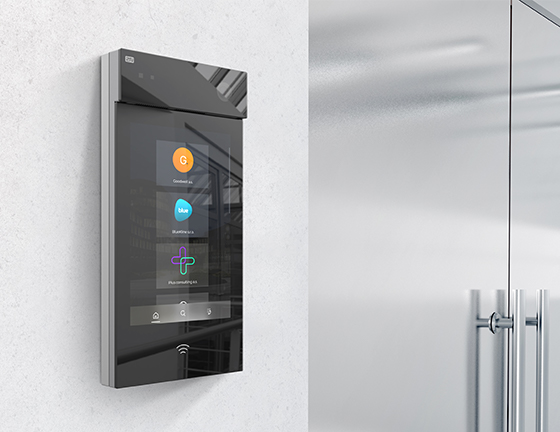

We’re proud of this one! Featuring a sleek 10’’ touch display and supercharged with the AXIS ARTPEC-7 processor, a full-HD camera and WaveKey technology - the 2N® IP Style is truly ground-breaking.

2n® Ip Style Security Intercom
2n® Ip Style Security Intercom
2n® Ip Style Security Intercom

FEATURES & BENEFITS

THE CAMERA OF THE FUTURE

Crystal clear colour images (even in low light), the ability to handle multiple simultaneous full HD streams, a 5 MPx chip and WDR capable? Why choose another bluetooth intercom?

LIGHTNING-FAST MOBILE ACCESS

Our WaveKey technology is so fast, blink and you’ll miss it! We should know, our developers tested it rigorously - they successfully opened a door 15,000 times using 100 different phones and in 98% of cases, the door was opened in less than 1 second.

FACE-TO-FACE COMMUNICATION

The 2N IP Style allows for bi-directional video: a truly future-proof feature that will only be standard in the years to come. It’s inclusive, too: it allows hearing-impaired visitors to communicate with the receptionist via sign language.

A PREMIUM, SELF-CLEANING 10’’ DISPLAY

The IP Style is not only a joy to use thanks to the bright display, smooth animation, and quick touch response time – it also comes with a unique self-disinfecting coating that kills 99+ % of all viruses and bacteria as standard.

IP65 AND IK08 CERTIFIED DURABILITY

More than just a pretty face – tough, too. The 2N® IP Style can easily resist heavy rain, a dusty environment, and even attacks by vandals.

A PLEASURE TO INSTALL

You spoke, we listened. The patented tilt-out system that we developed along with our customers is great for installation: tilt the device out, and you have both hands free to work with cables.

MULTIPLE ACCESS OPTIONS

Every user has different needs. Choose the 2N® IP Style and let yours decide how they provide authentication at the door: whether it’s using a mobile phone, an RFID card, a PIN code or a QR code

SERIOUSLY GOOD LOOKING – WITH CUSTOMISABLE UI

The 2N® IP Style can satisfy the needs of any project. Whether marble, brick, wood or metal - the IP Style looks great at any front door! Want to tailor user experience? Customise it by selecting from 2 different ways of displaying the intercom’s UI

INFORMATION

EXTENSION MODULES (OPTIONAL)

- I/o Module :external 1.693 (W) X 1.24 (H) X 0.059 (D) Inch
- Wiegand Module : External 1.693 (W) X 1.24 (H) X 0.059 (D) Inch

POWER SUPPLY POE

Poe+ Ieee 802.3at (Class 4–25.5 W)

DIMENSIONS

- Surface Mounting : 6.693 (W) X 13.976 (H) X 1.575 (D) Inch
- Flush Mounting : 6.693 (W) X 13.976 (H) X 0.866 (D) Inch

PRODUCTION

Made In Czech Republic

KEY FEATURES

- The Best Camera On The Market
- Lightning-fast Mobile Access Control
- Premium 10″ Display
- Now featuring an AntiBac coating & Bi-Directional video capabilities

DC POWER SUPPLY

12 V ±15 %/4 A

SIGNALLING PROTOCOL

SIP (UDP, TCP, TLS)

AUDIO

- Microphone : 2 Built-in Microphones
- Speaker : 2x4 W/4 Ω
- Sound pressure at 1kHz at 3.281 ft. distance (SPL max) : 85 dB
- Volume Control : Adjustable With Automatic Adaptive Mode
- Full Duplex : yes (AEC)
- Codecs : G.711, G.729, G.722, L16/16kHz

2n® Ip Style Security Intercom

TOUCHSCREEN

- Size : 10.1’’
- Resolution : 1280x800 TFT IPS
- Viewing angle : 170°
- Numeric keypad : Touch (On-screen)
- Directory : 2 modes: office/residential (10,000 users)

RFID CARD READER

- Supported Frequencies : 125 kHz and 13.56 MHz variant (optionally secured version)
- 125 kHz : EM4xxx
- 13.56 MHz : ISO14443A, ISO14443B, NFC support

2n® Ip Style Security Intercom

 CAMERA

- Resolution – JPEG : Max 2560x1920 (4:3); Max Qhd (16:9)
- Resolution – video call : Max 2560x1920 (4:3); Max Qhd (16:9)
- Frame rate : Max 30 fps
- Sensor sensitivity : 14000 e¯/lux-sec
- Infrared light : yes
- Forensic WDR : yes
- Codecs : H.264, MJPEG

INTERFACES

- LAN : 10/100BASE-TX with Auto-MDIX, RJ-45
- Switch Output : NC/NO contacts, max 30V/1A AC/DC
- Active Switch Output : 12 V/0.6 A DC
- Passive / Active Input : 3; (-30 V to +30 V)
- Tamper Switch : Mechanical, Part Of The Intercom
- Supported Protocols : SIP2.0, SIPS, DHCP opt. 66, SMTP, SNMP, TR069, 802.1x, RTSP, RTP, SRTP, TFTP, HTTP, HTTPS, Syslog, ONVIF

MECHANICAL PROPERTIES

- Cover : Hardened White Glass
- Operating Temperature : -22°F - 140 °F
- Storage Temperature : - 22°F - 158 °F
- Operating Relative Humidity : 10% - 95% (non-condensing)
- Weight : 4.299 lb
- Officially Certified Outdoor Coverage Level : IP65, IK08

2n® Ip Style Security Intercom

BLUETOOTH READER

- Bluetooth : Bluetooth 5.0 LE compliant
- Security : RSA-1024 and AES-128 encryption
- RX sensitivity : up to +19 dBm TX power
- Range : (short - typically up to 3m*, long - typically up to 10m*) *distances should serve only as an approximate guide and may vary depending on the phone model and installation environment
- Modes : Touch, Tap In App, Card, Motion
- Mobile app. support : 2N® Mobile Key (Android 6 and higher, iOS 12 and higher)
- WaveKey support : yes
