2N® INDOOR TOUCH 2.0 Video Door Communication
2N® INDOOR TOUCH 2.0
2N® INDOOR TOUCH 2.0 VIDEO DOOR COMMUNICATION

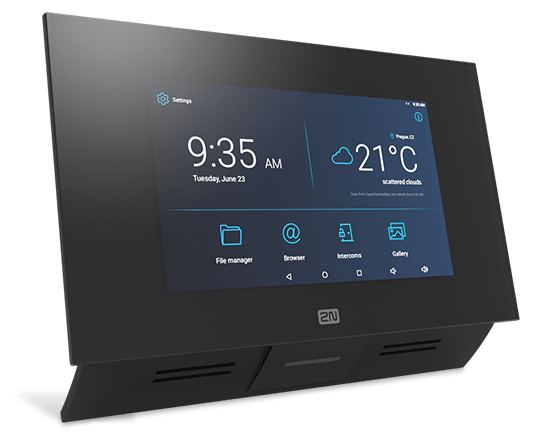

The 2N® Indoor Touch 2.0 indoor station guarantees reliable video door communication. The Android OS, more powerful hardware and simple user interface make it easy to integrate the 2N® Indoor Touch 2.0 with third-party applications.
For example, home automation systems can be comfortably operated on the 7“ touch screen made of tempered glass.
- Durable 7“ HD touch screen
- Integration with home automation systems
- Attractive, award-winning design
Features & Benefits
HIGH-QUALITY SOUND WITHOUT AMBIENT NOISE
No echoes and suppression of noise from the adjoining street. Thanks to a HD audio codec, this answering unit will provide high volume and intelligibility during conversations, even if your visitor was standing on a noisy environment.
SUPPORT OF A DOORBELL BUTTON
It’s easy to connect a doorbell button by the entrance door to a flat to the 2N® Indoor Touch 2.0. When the doorbell rings, the unit will start playing your pre-selected melody
DURABLE 7“ HD TOUCH SCREEN
The 7” colour touch screen display offers a detailed image of your visitors. You certainly don’t have to worry about scratching the 0.157 inch tempered glass by your shopping bag.
INTEGRATION WITH HOME AUTOMATION SYSTEMS
Android OS support and more powerful hardware allows easy installation of third-party applications, such as home automation systems. We’ve even pre-installed applications by Axis, because we belong to the same family/group.
ATTRACTIVE, AWARD-WINNING DESIGN
Fans of first-class design will also appreciate this product. Its design means that the 2N® Indoor Touch 2.0 will suit any household. We received the prestigious Red Dot Design Award for our answering unit’s design.
VIDEO MESSAGES ON AN ANSWERING MACHINE
The 2N® Indoor Touch 2.0 will answer visitors calls even when there’s no one home. It will play a recorded message to the outdoor intercom, asking your visitor to leave a message. The recorded message also includes a video from the door unit.
INFORMATION
MATERIAL
Tempered Glass
USE
Access control
POWER SUPPLY
- Type: 12V DC adapter or PoE 802.3af
- Recommended power supply: 12V/1A
- Reverse polarity protection: yes
VIDEOS
Codecs: H.264, MJPEG
OPERATING SYSTEM
Android 6.0
USER INTERFACES
- Controls : High-capacity touch screen
- Display size : 7" colour display
- Resolution : 1024x600px, 16:9
- Backlighting:LED with eco mode
- Status indicator:1x RGB LED (missed calls, eco mode, etc.)
AUDIO
- Microphone : Integrated
- Speaker : Integrated, 2W
- Codecs : G.711, G.722, G.729
MECHANICAL PARAMETERS
- Dimensions (W x H x D): 9,252 x 6,496 x 1,575 inch
- Weight : 1.874 lb
- Operating temperature : 32°F to 140°F
- Relative operating humidity : 10 to 90% (non-condensing)
- Storage temperature : -4°F to 158°F
- Recommended altitude : 0 to 6 561,7 ft
INTERFACE
- LAN : 10/100BaseT, RJ-45
- Recommended Cabling : Cat5e or Better 2x Relay2x GPIO (doorbell input, etc.)
- Memory Card : MicroSD Card (up to 16GB)
SW APPLICATIONS
2N® MEETING ROOM APPLICATIONS
The 2N® Meeting Room application for the 2N® Indoor Touch 2.0 offers users a full overview of scheduled occupancy for meeting rooms. Just install a 2N® Indoor Touch 2.0 with the uploaded application near the door to the meeting room. By checking the display, users can immediately see when the room is free. You can synchronise the application with a shared calendar on Microsoft Office 365, Microsoft Exchange, Google Gmail or Zimbra.
2N® NETWORK SCANNER
The 2N® Network Scanner is a simple, freely available application for locating 2N IP intercoms in the network. After searching the network, the application shows the type, firmware version and IP address of all intercoms found on a chart. This simplifies the administration and installation of intercom systems. Simply run the easy-to-use software to get immediate results.
2N® MOBILE VIDEO
You will always know what is happening outside your entrance with this service. The 2N® Mobile Video service allows you to communicate via your mobile phone with visitors through the 2N IP intercom installed at your door. You are available to your visitors at all times with continuous video monitoring of your house entrance.
Typical Usage
RESIDENTIAL VIDEO DOOR COMMUNICATION
Give your visitors a first class welcome
Welcome your visitors in style. Choose the stylish door intercom from 2N. You will see the benefit not only of increased security for your loved ones, but also the modern design, ground-breaking functionality and materials that are...
CONNECT SUPER-EASILY TO A HOME AUTOMATION SYSTEM
Discover Staggering Integration Into Smart Homes
2N products can be easily connected to third-party systems, for example, a home automation system. You can, of course, communicate with visitors, or have your 2N IP intercom automatically switch on a light after opening the door. The indoor unit can start...
HOW TO USE 2N PRODUCTS IN APARTMENT BUILDING?
Explore The Solution In 3d
In our model apartment building, you will discover all the places you can install our products. Offer your customers a comprehensive IP solution for access control and door communication.
