Fischer Vacuum Cleaner Fvc 35 M
VACUUM CLEANER FVC 35 M
VACUUM CLEANER FVC 35 M
The mains operated wet and dry vacuum cleaner is suitable for extracting hazardous dust in accordance to the dust class M certified for drilling holes with less dust by using the fischer hollow drill bit FHD.
The automatic filter cleaning means continuous non-stop operation without any interruption.
INFORMATION
AMOUNT
1 Pcs.
DIMENSIONS
530 x 400 x 560 mm
WEIGHT
15.5 Kg
VOLTAGE
220 - 240 V
APPLICATIONS
- Suitable For : Dry suction, Wet Suction
- As Suction System For : Hollow Drill Bits, Sawing Machines, Grinding Machines, Milling Machines
ART.-NO
551924
NEGATIVE PRESSURE
270 Mbar
NOISE (ACOUSTIC PRESSURE)
69 DB
CONTENTS
- 11 X Vaccum Cleaner Fvc 35 M
- 1 X Suction Hose Fvc Sh Ø 35 Mm, Length 5 M
- 2 X Folded Filter Cartridges Fvc Fc
- 1 X Polyethylenebag Fvc Pb
NOMINAL POWER
1400 W
MAX. VOLUME FLOW
73
APPLICATIONS
- Sawing
- Sanding
- Dry Suction
- Hollow Drilling
- Milling
- Wet Suctio
VARIANT - 35M UK
ART.-NO.
558177
VOLTAGE
110 - 120 V
NOMINAL POWER
1400 W
MAX. VOLUME FLOW
74
NEGATIVE PRESSURE
234 Mbar
NOISE (ACOUSTIC PRESSURE)
69 DB
GTIN (EAN-CODE)
4048962407587
DIMENSIONS
530 x 400 x 560 mm
AMOUNT
1 Pcs
CONTAINER VOLUME
- 35 Gross
- 25 Dust
- 22 Water l
CONTENTS
- 1 x Vaccum cleaner FVC 35 M,
- 1 x Suction hose FVC SH ø 35 mm, length 5 m,
- 2 x Folded filter cartridges FVC FC,
- 1 x Polyethylene Bag FVC PB
ADVANTAGES
ADVANTAGES AND FUNCTIONS
- Demand-driven filter cleaning by monitoring the negative pressure, guarantees a continuously high air flow.
- Electromagnetic shocks clean the filter cartridges alternately for perfectly clean filters.
- Filter Material Suitable For Dust Class M With A Dust Retention Capacity Of 99.9%.
- Large filter area for longer service life.
FUNCTIONALITY
- The power cable of the electrical device is plugged into the socket of the vacuum cleaner. This means that the vacuum cleaner only runs during the use of the device.The suction power can be adapted to the connected device by the left-hand switch.
- When the filter bag is full, the lamp to the right of the switches lights up. To change the bag, remove the upper part and replace the corresponding filter bag without creating dust.
ADVANTAGES AT A GLANCE
- Automatic filter cleaning during suction operation without any interruption enables non-stop suction.
- Vacuum cleaner filter with dust retention capacity of 99,9% according to dust class M, perfectly suited for use with the fischer hollow drill bit FHD.
- Extremely robust, double-walled container ideal for construction sites.
- Demand-driven filter cleaning by monitoring the suction.
- Integrated power socket with automatic on and off functioning controlled by the power tool.
- High performance motor for constantly high suction power.
- The matching cleaning set FVC AP enables dry and wet suction work.
- The sealable filter bags guarantee a dust-free disposal.
- The universal fischer service concept offers a seamless repair process worldwide.
Applications and assembly

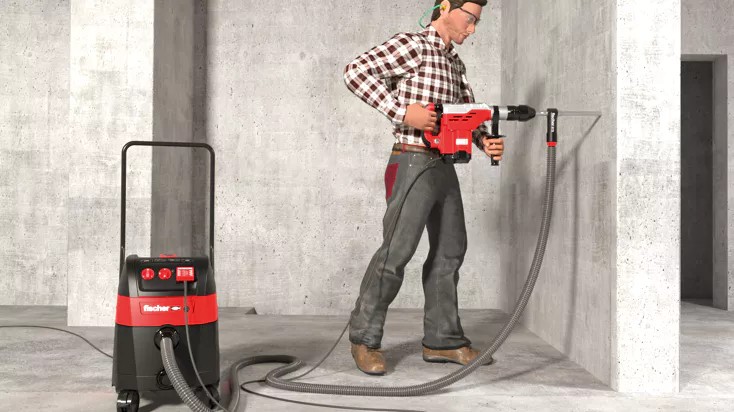

ASSEMBLY WITH FISCHER HOLLOW DRILL BIT FHD
- Drill hole creation with the fischer hollow drill bit FHD not only ensures a low-dust working environment, but also considerable time savings. The use of hollow drill bits compared to conventional hammer drills enables fast drilling progress due to their sharp carbide plates.
Additional time can be saved due to the omission of borehole cleaning during the assembly of mechanical and chemical anchors. In addition, the costs for the cleaning equipment are eliminated, like e.g. cleaning brushes, blowers or compressed air cleaning equipment.
UNIVERSAL WET AND DRY VAC FOR VIRTUALLY DUST FREE APPLICATIONS.
- Adjustment of the suction power to the connected device. (21 for fischer hollow drill bit FHD).
- Cable plug for automatic switch-on and switch-off coupling with the connected power tool.
- Easy access to the filter allows clean and uncomplicated replacement of filter cartridges.
- Robust, double-walled container ideal for use on construction sites.
- Powerful vacuum motor for high suction performance.
- High volume flow and negative pressure at the end of the hose for maximum dust extraction.
MAIN SWITCH
- 0 = vacuum cleaner switched off
- I = vacuum cleaner switched on, automatic filter cleaning off
- IR = vacuum cleaner switched on, automatic filter cleaning on
- AR = vacuum cleaner switched on by connected electrical device, automatic filter cleaning on
