Gaggenau Warming Drawer 200 Series
WARMING DRAWER 200 SERIES
WARMING DRAWER 200 SERIES
WSP221102
- Flush installation
- Handleless drawer
- Push-to-open system
- Hygienic stainless steel interior with glass bottom
- For slow cooking, dough proofing, herbs and fruits drying, chocolate melting and defrosting
INFORMATION
HANDLING
Touch Key Operation
TIME CONTROL
No
CODE
WSP221102
VARIANTS
Fully Integrated
VOLTAGE
220-240
FUSE PROTECTION
10
POWER LEVEL
0.820

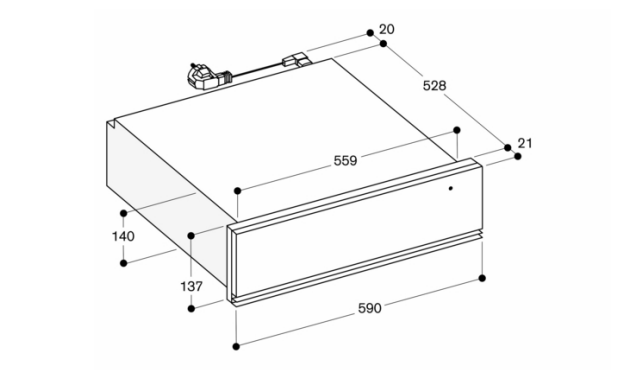

DIMENSIONS
140 x 590 x 518
FREQUENCY
50; 60
OVEN
Warming
DIMENSIONS OF THE PACKED PRODUCT
260 x 650 x 700 (HxWxD)
CHARACTERISTICS
- Built-in
- Free-standing
PLUG TYPE
- Gardy plug w
- Earthing
MIN. REQUIRED NICHE SIZE FOR INSTALLATION
140 x 560 x 550
DIMENSIONS
-Width 60 cm -Height 14 cm
-Culinary warming drawer 200 series
LENGTH ELECTRICAL SUPPLY CORD
175
GROSS WEIGHT
47.000
NET WEIGHT
43.000
LENGTH OF ELECTRICAL SUPPLY CORD (IN)
71 ''
MAXIMUM NUMBER OF PLATES
6
COLORS /MATERIAL FRONT
- Anthracite
DOWNLOADS
↓ Instruction Manual
↓ Installation Instruction
↓ Product Spec Sheet
↓ Home Connect Leaflet
↓ Eu Declaration Of Conformity
↓ Cad Files
DIMENSIONS OF THE PACKED PRODUCT (HXWXD)
260 x 650 x 700
REQUIRED CUTOUT/NICHE SIZE FOR INSTALLATION (IN)
x x
DETAILS
FEATURES
- Net volume 20 litres.
- Volume capacity : Dinner service for 6 people including ø 27 cm plates and soup bowls, additional bowls and a serving dish depending on size. Capacity load max. 25 kg.
- Capacity load max. 25 kg.
- Usable interior dimensions W547 mm x H 91 mm x D 410 mm.
- Heating system for even heat distribution and stable cavity temperature.
- Status display, visible in the glass front. Glass bottom made of safety glass.
- Glass bottom made of safety glass.
SELECTED DIGITAL SERVICES (HOME CONNECT)
- Additional programmes and recipes. Remote control and monitoring. Timing function.
- Remote control and monitoring.
- Timing function.
- Home network integration for digital services (Home Connect) wireless via WiFi.
- The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: homeconnect.com.
PLANNING NOTES
- Necessary lateral gap between appliance front and furniture panel of min. 5 mm.
- The door panel surface of the appliance extends 21 mm from the furniture cavity.
- Installation of BSP/BMP/CMP directly above WSP in 59 cm niche without intermediate floor.
- The socket can be planned behind the appliance.
HEATING METHODS
- Slow cooking.
- Keeping meals warm.
- Warming ovenware.
- Cups and plates warming.
- Direct temperature control.
- Personalisation function via Home Connect.
- 16 additional programs via Home Connect.
CONNECTION
- Total connected load 0.82 KW.
- Connection cable 1.8 m, pluggable.
