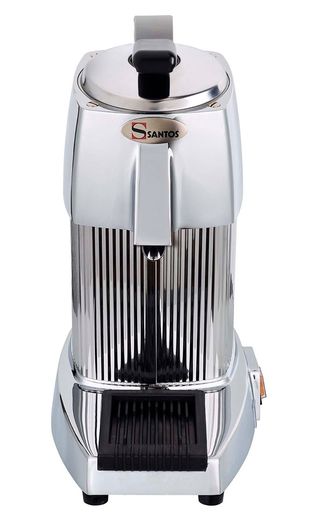

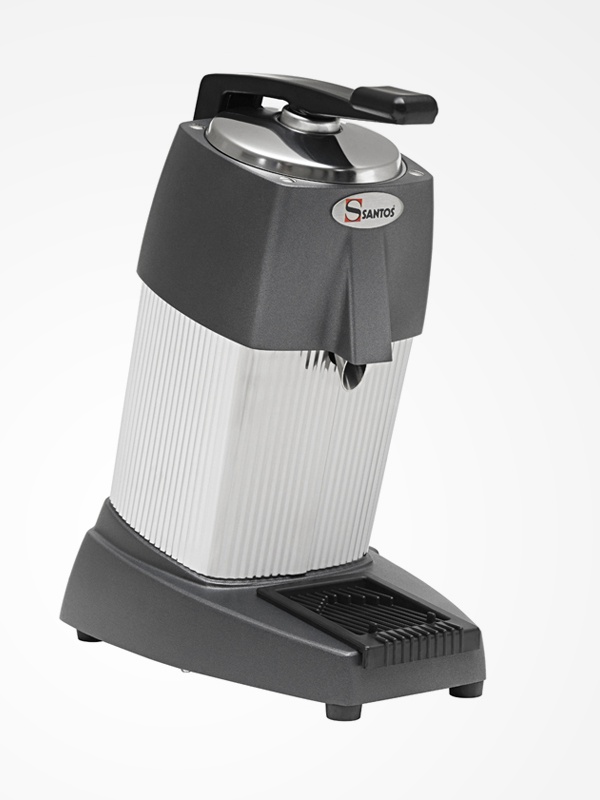

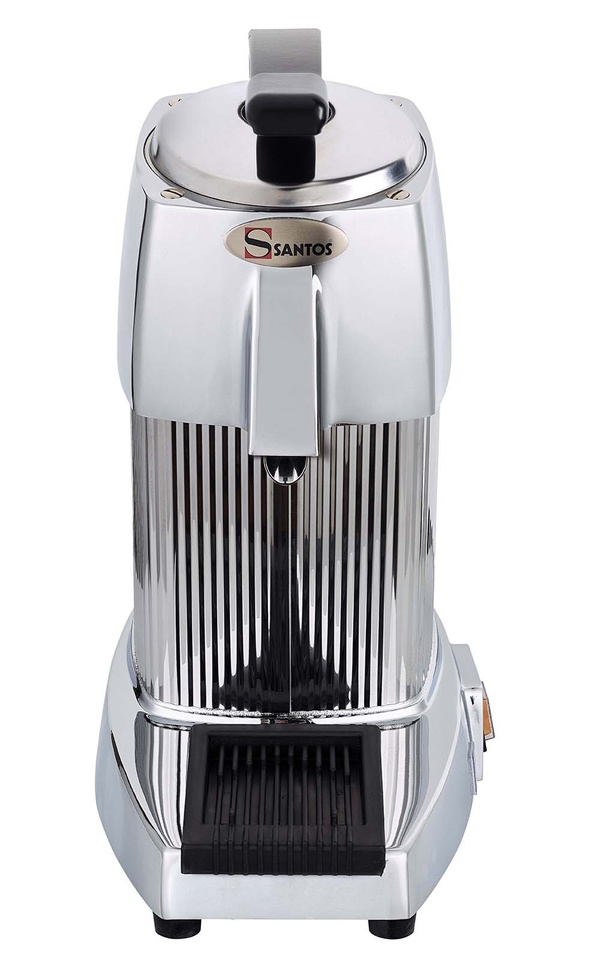

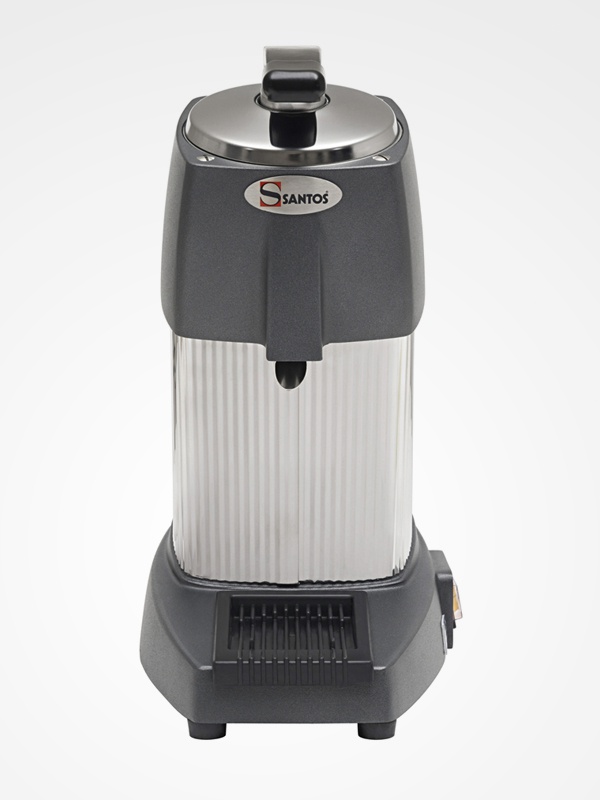

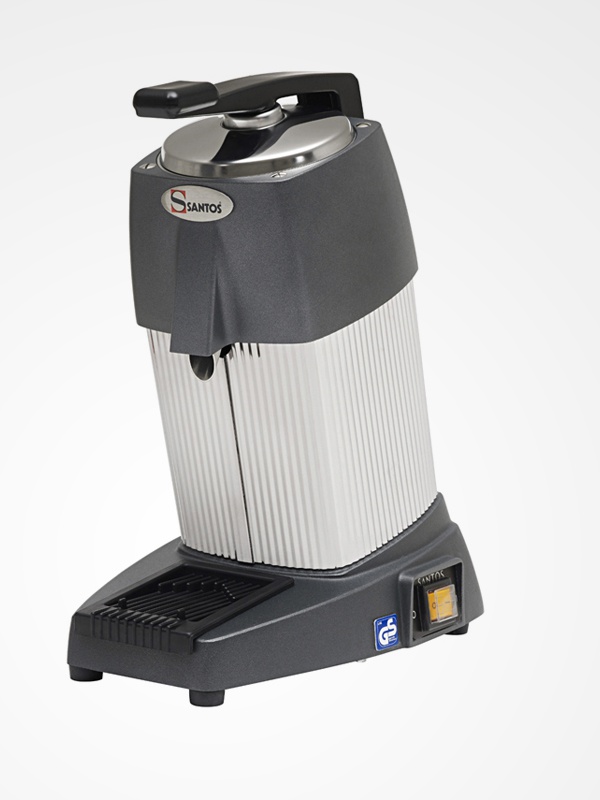

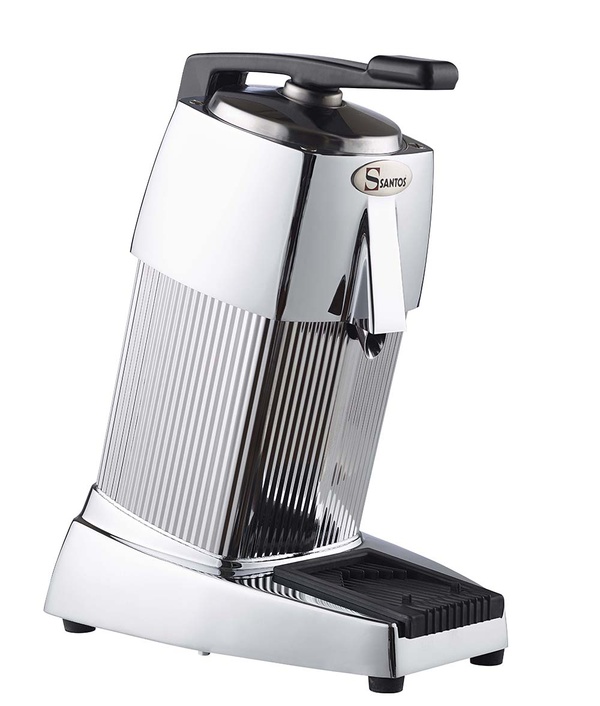

Santos Citrus juicer with lever 10

Citrus juicer with lever 10

CITRUS JUICER WITH LEVER 10

This citrus juicer with lever is the ideal product to use everywhere you need a freshly squeezed citrus juice.

Santos Citrus juicer with lever 10
Santos Citrus juicer with lever 10

juice bars, health food stores, bars, restaurants, ice cream shops, institutions.

INFORMATION

INTRODUCTION

68 Mm Diameter.

OUTPUT

30l/h

MAXIMUM JUICE EXTRACTION

Excellent Yield.

ELECTRICAL CONNECTION

The appliance's power supply is available in two single-phase voltages: - 110-120 V 50/60 Hz: - 220-240 V 50/60 Hz

MAXIMUM JUICE EXTRACTION

Excellent Yield.

EASY TO USE

Automatic start when we push the lever (special clutch system).

SPOUT HEIGHT

135 mm (5"), to make juice in a glass.

SPEED

- 1500 rpm (50 Hz)
- 1800 rpm (60 Hz)

MOTOR SINGLE PHASE

- 100 - 120 V - 50/60 Hz - 260 W
- 220 - 240 V - 50/60 Hz - 230 W

WEIGHT

- Net: 9,2 kg (20,3 lbs)
- Shipping: 9,6 kg (22 lbs)

DIMENSION

- Depth : 300 mm (19")
- Width : 280 mm (13")
- Height : 380 mm (23")

Santos Citrus juicer with lever 10

SHIPPING BOX

- Width :340 mm (15")
- Depth :  250 mm (26")
- Height : 450 mm (23")

STANDARDS

- Versions 10 & 10C (220-240V - 50/60Hz) : CE, RoHS.
- Versions 10V1 & 10CV1 (100-120V - 50/60Hz) : CE, UL, NSF, BSMI, RoHS

PREPARING THE APPLIANCE FOR USE

- Thoroughly clean all parts in contact with the food. 1
- Raise the pressing lever right up .
- Remove the cone by hand .
- model n°70: remove the juice container by hand .
- model n°70: remove the pressing cup (3) by rotating it ¼ turn 5. - Wash with a standard dish washing product: the cone (2), the pressing cup (3), the splash guard (4) and the inside of the juice container (5).

MADE

100% manufactured in France since 1954

COLORS

-Silver -Black

PERFORMANCE

- Continuous juice production, automatic pulp ejection
- High Output: 100l/h
- Maximum juice extraction : High quality juice without pulp, even for intensive use

PREPARATION AND USE

- Cut the orange into two halves ready for squeezing. 2.
- Place the On/Off switch (6) at On.
- In this position the electric motor operates but the cone (2) is not rotated. 3.
- Position the half-orange on the cone (2). 4.
- Apply increasing pressure to the lever (1) for about 5 seconds. In this position, it is the pressure on the lever that (1) engages the clutch for the cone (2). 5."
- Release then lift the lever (1) and remove the orange skin from the cone. 6.
- Proceed in the same fashion for all the half-oranges to be squeezed. 7. Take care:When you have finished using the citrus fruit squeezer, stop it using the On/Off switch (6):

DESCRIPTION OF THE APPLIANCE

- The Citrus Juicer with lever is designed especially for bars, cafés, hotels, restaurants, cocktail bars, canteens, stores selling fresh fruit juices, ice cream parlors, etc •
- The apparatus comprises the following elements (Fig. A): o cast aluminium motor unit (7), o stainless steel juice container (5), o stainless steel rotating cone (2), o a lever to press the fruit down (1), o mechanical clutch. •
- Citrus Juicer n°10 is designed for extracting juice from oranges and lemons. •
- Citrus Fruit Squeezer n°70 is designed for extracting juice from oranges, lemons and grapefruit. • It is ideal for making: drinks (fruit cocktails, punches, syrups, …)
