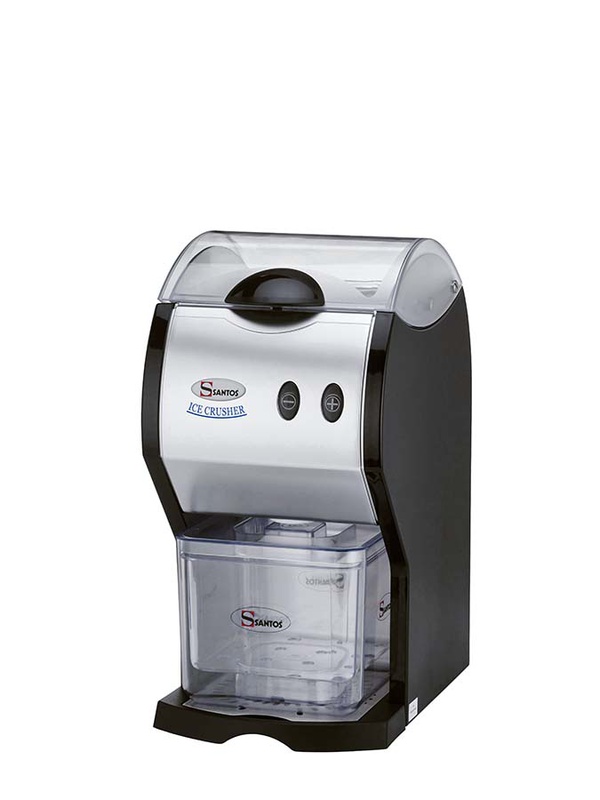

Santos Ice Crusher 53
ICE CRUSHER 53
ICE CRUSHER 53
To use everywhere you need crushed ice: cocktail bars, hotels, restaurants, bars and night clubs. Ideal to prepare cocktails (mojitos, frozen margaritas, daiquiris...).
It is equipped with a heavy duty and quiet induction motor. It makes both fine and coarse ice in just one touch of a button.
INFORMATION
SPEED
- 73 rpm (50 Hz)
- 89 rpm (60 Hz)
MOTOR - SINGLE PHASE
- 100 - 120 V - 50/60 Hz - 130 W
- 220 - 240 V - 50/60 Hz - 130 W
EXCEPTIONAL OUTPUT
Simply and quickly makes 1,2 kg of crushed ice in 30 seconds.
DIMENSIONS
- Depth : 353 mm (12")
- Width : 236 mm (8")
- Height : 474 mm (19")
SHIPPING BOX
- Width : 415 mm (16,3")
- Depth : 375 mm (14,7")
- Height : 520 mm (20,5")
WEIGHT
- Net : 23,65 kg (52 lbs)
- Packed : 26,4 kg (58 lbs)
NORMES
- Versions 53 : CE, RoHS.
- Versions 53V1 : CE, cETLus, RoHS.
DOWNLOADS
↓ Data Sheet
↓ User Manual
2 FUNCTIONING MODES
Automatic (automatically crushes all the ice placed in the tank) and manual (crushes the ice as long as you push the button).
COLOUR
Grey
FEATURES
1. Ice cube tank capacity 1,2kg
2. Heavy duty and quiet asynchronous motor
3. Non-slip rubber feet for high stability
4. Top cover
5. Ergonomic handle
6. Front panel
7. Lighting of crushed ice
8. Standard ice bucket
9. Removable drip tray
POWERFUL AND EFICIENT
- Powerful and quiet asynchronous motor. Heavy duty appliance adapted to intensive use.
- Exceptional output : 150kg/h.
TWO OPERATING MODES
- Long touch on the button: Manual function. It crushes the ice as long as you push the button
- Quick touch on the button: Automatic function. It automatically crushes all the ice placed in the tank (hands-free use)
HYGIENE
All removable parts can be put in a dishwasher or easily cleaned with hot soapy water
IN ACCORDANCE WITH THE FOLLOWING REGULATIONS
- Machinery directive 2006 / 42 / EC
- Electromagnetic compatibility 2014 / 30 / EU
- ‘‘Low voltage’’ directive 2014 / 35 / EU
- RoHS directive 2011 / 65 / EU
- Regulation 1935 / 2004 / EC (contact with food)
- Regulation 10 / 2011 / EU (Plastic in contact with food)
ACOUSTIC SAFETY
Very silent and powerful asynchronous motor
THERMAL SAFETY
Motor protected by internal thermal detector
WARRANTY
- Product: 2-year Warranty
- Motor: 5-year
ELECTRICAL SAFETY
- Waterproof Electric Control Unit. Overload safety
- All mechanical parts are ground connected
- Appliances are 100% tested after assembly
TWO SIZES OF CRUSHED ICE
1. Fine crushed ice
2. Coarse crushed ice
HARMONIZED EUROPEAN STANDARDS
- EN ISO 12100 : 2010
- EN 60204-1 + A1 : 2009
- EN 60335-2-64 : 2004 Commercial electric kitchen machines
- CE Marking, ETL
