Santos Shop Coffee Grinder With Bag Holder 04
Shop Coffee Grinder With Bag Holder 04

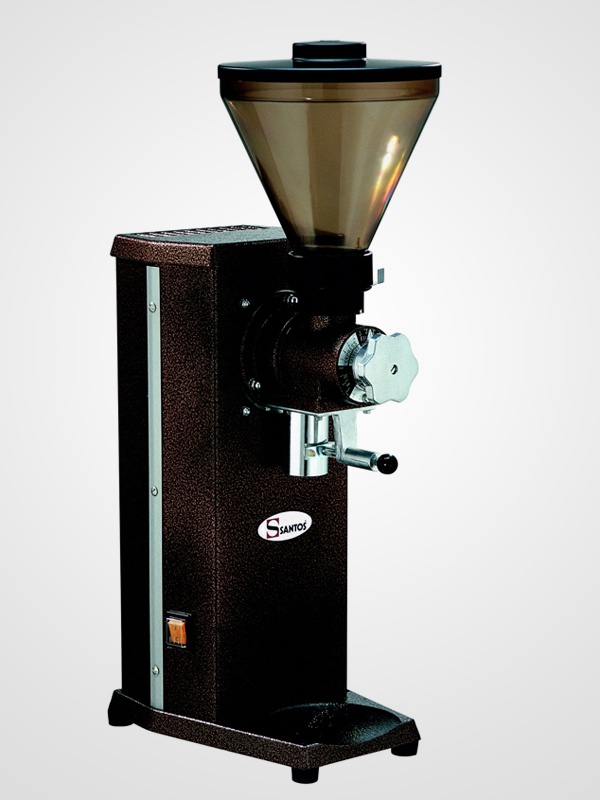

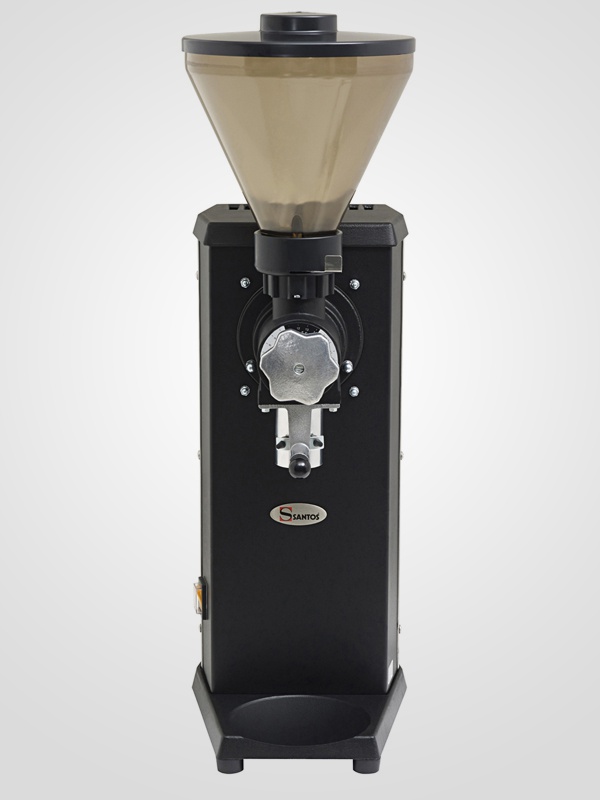

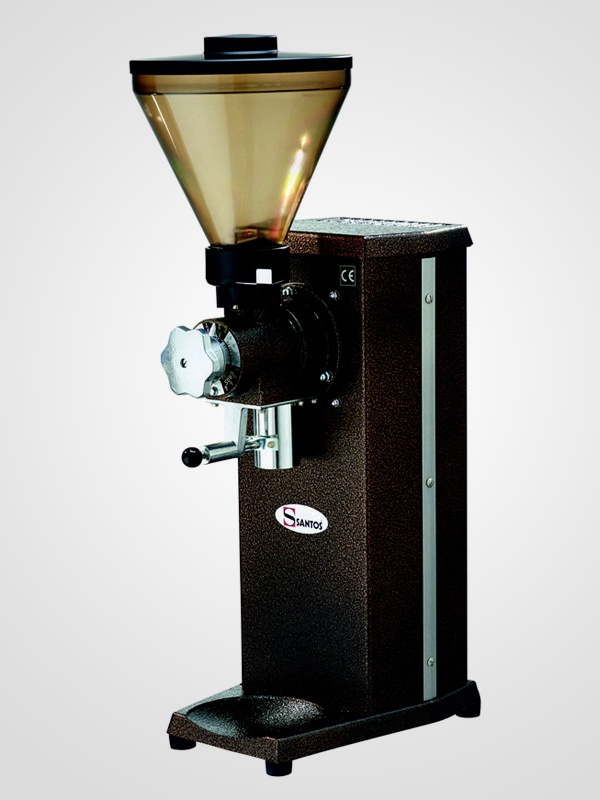

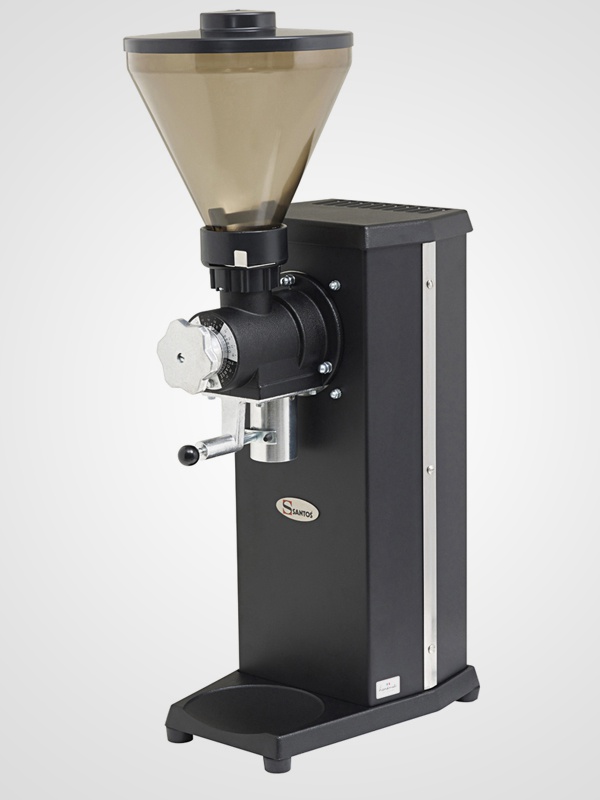

SHOP COFFEE GRINDER WITH BAG HOLDER 04
Traditional sturdy and powerful shop coffee grinder with bag holder.
Ideal for shops, supermarkets, coffee roasters, bakeries...Easy to use and efficient, this coffee grinder will give you a high quality grinding.
INFORMATION
PRODUCT TYPE
Coffee Grinder 04
BRAND
Santos
PRODUCTION
Made by France
AVERAGE OUTPUT
8 kg/h
PACKED WEIGHT
19,7 kg (43 lbs)
COLOR
-Black -Brown
BAG HOLDER
280 mm (11") high.
HOPPER CAPACITY
1 Kg
GRINDING ADJUSTMENTS
From extra fine to extra coarse.
SINGLE PHASE
- 100 - 120 V - 50/60 Hz - 310 W
- 220 -240 V - 50/60 Hz - 360 W
SPEED
- 1500 rpm (50 Hz)
- 1800 rpm (60 Hz)
DOWNLOADS
↓ Data Sheet
↓ User Manual
POWERFUL
Commercial reliable induction motor.
REFERENCE
Version with mobile coffee tamper: Ref. 40A PPM
HORIZONTAL AXIS
Grinding discs, with feeding screw.
DIMENSIONS
- Depth : 320 mm (16")
- Width : 220 mm (8")
- Height : 770 mm (23")
PACKGING DIMENSIONS
- Width : 450 mm (10")
- Depth : 300 mm (18")
- Height : 600 mm (26")
NET WEIGHT
17,7 kg (39 lbs)
USE
Easy to use and efficient, this coffee grinder will give you a high quality grinding.
STANDARDS
EN 60335-2-64: 2004 Commercial electric kitchen machines
PRECISION GRINDING
Ø 63,5 mm grinding discs which are designed and manufactured by Santos for a high quality grinding, precise and fine.
NORMES
- Versions 4 (220-240V - 50/60Hz) : CE, RoHS.
- Versions 4V1 (100-120V - 50/60Hz) : CE, RoHS
AVERAGE OUTPUT
14 Kg / hour
ADJUSTING THE GRIND
Turn the grinding-wheel gap adjuster button 6 clockwise for a coarser grind and anticlockwise for a finer grind. The factory setting is for the finest grind, the grindingwheels nearly touching each other.
ACOUSTIC SAFETY
Very silent and powerful asynchronous motor
MAINTENANCE
Before carrying out any work on the appliance, it must in all cases be unplugged from the mains power supply and the motor start capacitor discharged:
SIMPLE DIRECT DISPENSING OF THE COFFEE
Fresh ground coffee.
QUALITY GRINDING
- Easily adjustable grinding settings: precise setting of the grinding fineness for all types of filtration.
- Santos manufactures its own grinding discs to give you a perfect grinding, constant and fine
THERMAL SAFETY
Motor protected by internal thermal detector
HYGIENE
All removabe parts can be put in a dishwasher or easily cleaned with hot soapy water
ELECTRICAL CONNECTION
The electric power supply for the machine is available in 3 single-phase voltages: - 110-120 V 50/60 Hz: - 220-240 V 50 Hz: - 220-240 V 60 Hz:
