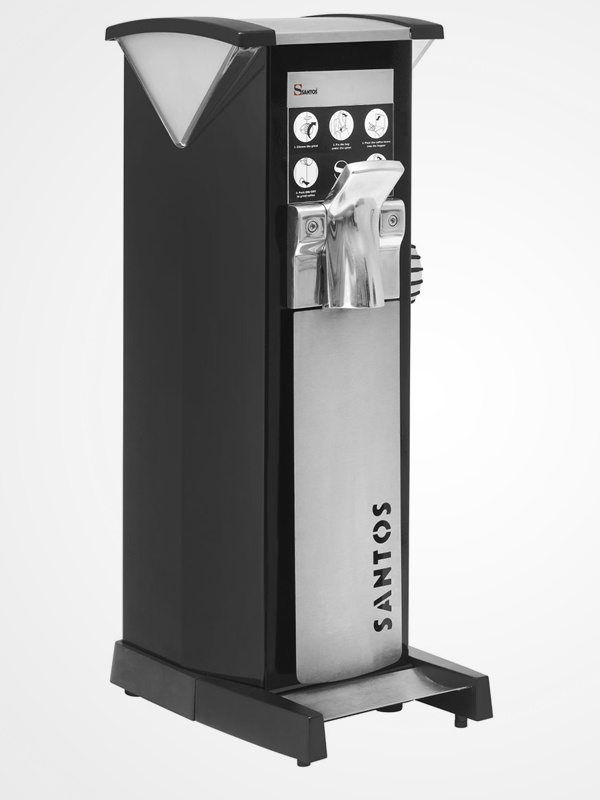

Santos Coffee Shop Grinder 63
COFFEE SHOP GRINDER 63
COFFEE SHOP GRINDER 63
This is the ideal appliance for all stores which distribute large quantities of ground coffee: coffee shops, supermarkets and roasting establishments.
Fast, precise and reliable, this coffee grinder will give you a high quality grinding. It is adapted to intensive use.
INFORMATION
PRODUCTION
Made In France
PRODUCT TYPE
Coffee Shop Grinder 63
MAKE
Perfect To Make Turkish Coffee
NET WEIGHT
40 kg (88 lbs)
PACKED WEIGHT
49 kg (108 lbs)
COLOR
Black
SILENT
65 dBA
HOPPER
1.2 Kg
OUTPUT
up to 120 Kg / hour
SINGLE PHASE
- 100 - 120 V - 50/60 Hz - 1500 W
- 220 - 240 V - 50/60 Hz - 600 W
SPEED
- 1500 rpm (50 Hz)
- 1800 rpm (60 Hz)
POWERFUL
Commercial Reliable Induction Motor.
DISPENSING
Simple Direct Dispensing Of The Coffee: Fresh Ground Coffee.
BAG HOLDER
400 mm high. Accepts bags from 250gr to 1 kg
VIBRATING PLATE
For A Better Distribution Of Ground Coffee Into The Bag
DIMENSIONS
- Depth : 329 mm (13")
- Width : 279 mm (11")
- Height : 677 mm (27")
PACKGING DIMENSIONS
- Width : 500 mm (20")
- Depth : 660 mm (26")
- Height : 880 mm (35")
ELECTRICAL SAFETY
On/Off interlock switch is waterproof All mechanical parts are ground connected Appliances are 100% tested after assembly
ACOUSTIC SAFETY
Very silent and powerful asynchronous motor
PRECISION GRINDING
Equipped with triple cut grinding discs (Ø120 mm) designed and manufactured by Santos. High resistance, long lasting. Can be resharpened.
STEPLESS MICROMETRIC GRINDING ADJUSTMENTS
From Extra Fine To Extra Coarse
NORMES
- Versions 63 (220-240V - 50/60Hz) : CE, RoHS.
- Versions 63V1 (100-120V - 50/60Hz) : CE, RoHS, UL.
DOWNLOADS
↓ Data Sheet
↓ User Manual
DETAIL
- 1 1,2 kg (2,6lbs) hopper
- 2 Instructions for use
- 3 Hopper shutter
- 4 Bag holder accepting coffee bags from 250g to 1kg Maximum bag height: 400mm
- 5 Triple cut Ø 120mm grinding discs: high resistance, long lasting
- 6 Micrometric adjusting button Extremely precise: from very fine to extra coarse
- 7 Vibrating plate: better distribution of ground coffee into the bag
- 8 Powerful and reliable commercial motor
- 9 On/Off switch
- 10 Removable drip tray
IN ACCORDANCE WITH THE FOLLOWING REGULATIONS
- Machinery directive 2006 / 42 / EC
- Electromagnetic compatibility 2014 /30 / EU
- ‘‘Low voltage’’ directive 2014 / 35 / EU
- RoHS directive 2011 / 65 / EU
- Regulation 10/ 2011 / EC (contact with food)
- Regulation 1935 / 2004 / EC (Plastic in contact with food)
ACOUSTIC SAFETY
The very quiet direct drive asynchronous motor guarantees optimal user comfort
HARMONIZED EUROPEAN STANDARDS
- EN ISO 12100: 2010
- EN 60204-1 + A1: 2009
- EN 60335-2-64: 2004 Commercial electric kitchen machines
- CE Marking, UL (USA) et cUL (Canada), KC (Korea)
THERMAL SAFETY
Motor protected by internal thermal detector
HYGIENE
All removable parts can be put in a dishwasher or easily cleaned with hot soapy water
