Vortice Punto Filo MF 100/4″ T Bathroom Fan
PUNTO FILO MF 100/4″ T BATHROOM FAN
PUNTO FILO MF 100/4″ T BATHROOM FAN
High airflow rate, low operating noise level and low power consumption due to the wing profile blade and motor support
information
BRAND
Vortice
PRODUCT TYPE
Bathroom Fan
CODE
11127
ULTRA SLIM GRILLE
17mm
ABSORBED CURRENT
Max. 0.09 A
ABSORBED POWER
Max. 15 W
FREQUENCY
50 hz
VOLTAGE
220-240 V
WEIGHT
0.51 kg
IP
X4
RPM
2400
USE
Bathroom
NOMINAL DIAMETER
100 mm
Ø DISCHARGE HOLE
98 mm
MAX AMBIENT TEMPERATURE
For continuous operation 50 °C
PRESSURE MAX
- 3 (mmH2O)
- 29 (Pa)
DELIVERY MAX
- 24 (l/s)
- 85 (m³/h)
SOUND PRESSURE LEVEL LP
31 dB (A)] 3m
DESIGN
Attractive Design
CERTIFICATIONS
-IMQ -CE
IMQ PERFORMANCE
-CCC -EAC
MATERIAL
UV resistant plastic (prevents ageing caused by exposure to
sunlight).
MOTOR PROTECTED
Motor protected against thermal overload, with shaft turning in self- lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
INSULATION CLASS
II°
MAXIMUM AIR FLOW
85 m3/h.
INSTALLATION
Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).

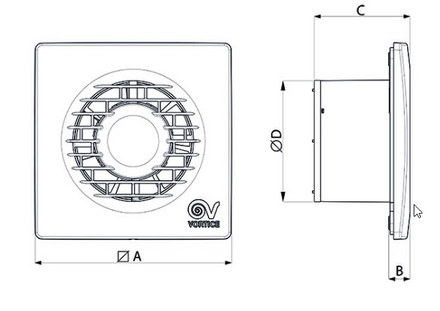

DIMENSIONS
| SIZE | NO. |
|---|---|
| Size A (mm) | 159 |
| Size B (mm) | 17 |
| Size C (mm) | 77 |
| Size D (mm) | 98 |
DETAIL
- Vortice speed controller.
- Non-return damper fitted to outlet port.
- IMQ SAFETY and IMQ PERFORMANCE certifications.
FEATURES
- Suitable for wall installation
- IPX4 splash proof protection on all models
- Timer models are adjustable from 3 to 20 minutes
- Not suitable for ducting up to roof tile ve nts
- Not suitable for flat ducting
- For intermittent extract of bathrooms, shower rooms, en suites, w.c’s
