Vortice Punto Evo Me100/4″ Bathroom fans

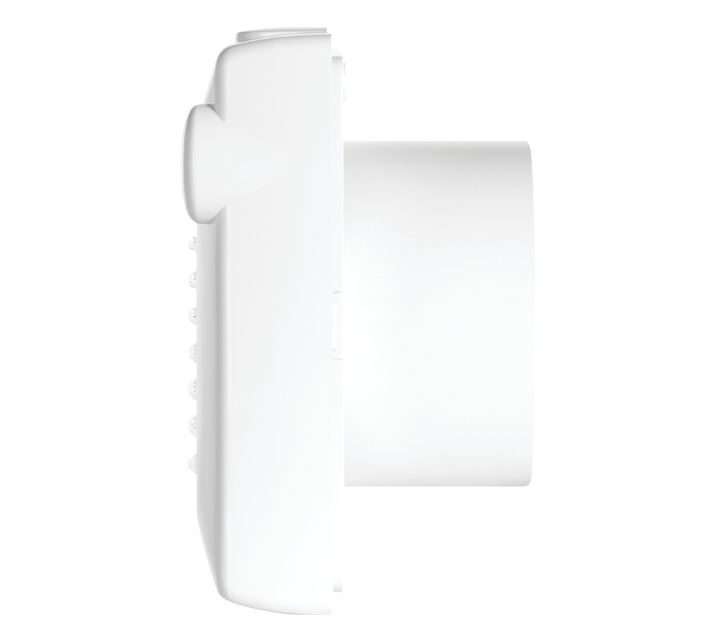

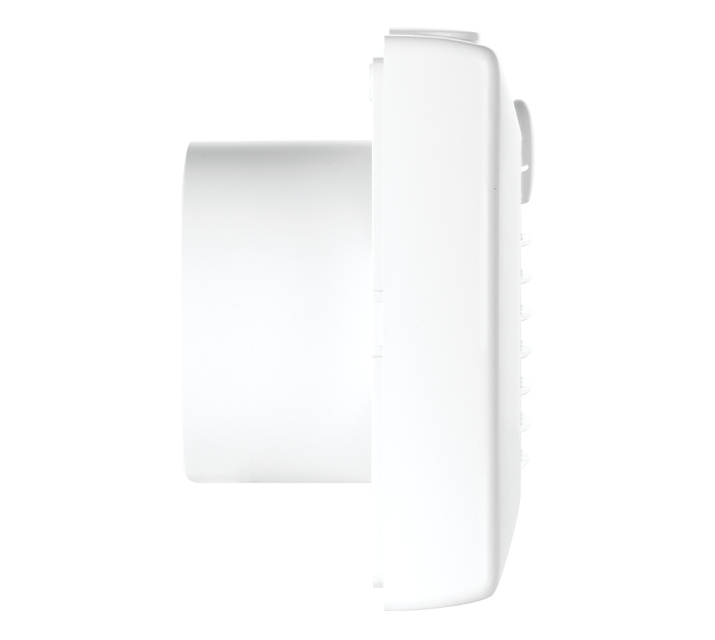

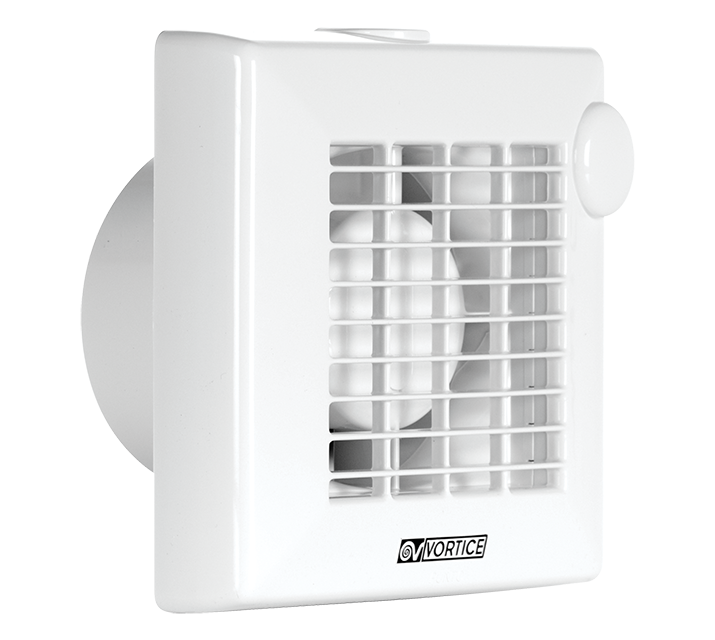

PUNTO EVO ME100/4″ BATHROOM FAN
PUNTO EVO ME100/4″ BATHROOM FAN
CODE: 11201OM
For intermittent extract of bathrooms, shower rooms, en suites, w.c’s .
information
BRAND
Vortice
PRODUCT TYPE
Punto Evo Me100/4″
MATERIAL
Yellow Gold Uv Resistant Plastic
TAG
Bathroom Fans
CODE
11201OM
FREQUENCY (HZ)
50
RPM
2300
TYPE
Wall/window axial fans
PRESSURE MAX (MMH2O)
3
PRESSURE MAX (PA)
29
MAX. ABSORB ED POWER AT MAX SPEED
18
MAX AMBIENT TEMPERATURE FOR
CONTINUOUS OPERATION (°C)
50
VOLTAGE (V)
230-240
ABSORBED CURRENT MAX(A)
0,1
Ø DISCHARGE HOLE (MM)
99
SOUND PRESSURE LEVEL LP
3M 37,5
DELIVERY MAX (M³/H)
90
WEIGHT (KG)
0,6
SUITABLE FOR
Wall Installation
DIMENSIONS
Etichetta Energetica NO
-Size A (mm) 159 -Size B (mm) 160 -Size C (mm) 100 -Size D (mm) 47 -Size E (mm) Ø 99
