Vortice Quadro Micro 100 I Fan
QUADRO MICRO 100 I FAN
QUADRO MICRO 100 I FAN
Suitable for use with 100mm diameter rigid ducting, flat ducting (FD200 – 204×60), flexible aluminium and flexible insulated aluminium ducting
information
BRAND
Vortice
PRODUCT TYPE
Fan
CODE
12017
FREQUENCY
50 hz
VOLTAGE
220-240 V
WEIGHT
1.91 kg
RPM
- Max : 1450
- Min : 1010
DELIVERY 1ST SPEED
- 21 (l/s)
- 75 (m³/h)
ABSORBED POWER
- 1st speed : 20 W
- Max Speed : 27 W
SOUND PRESSURE LEVEL SIDE EXTRACTION
- Max : 33.5 dB (A)] 3m
- Min : 25.9 dB (A)] 3m
MATERIAL
- Material used for parts not recessed into wall: white ABS plastic.
- Material used for parts recessed into wall: talc-filled black plastic (PP) giving added strength.
IP
X4
Ø DISCHARGE HOLE
73.5 mm
NOMINAL DIAMETER
100 mm
MAX AMBIENT TEMPERATURE
For continuous operation 50 °C
PRESSURE 1ST SPEED
- 20 (mmH2O)
- 196 (Pa)
PRESSURE MAX SPEED
- 25 (mmH20)
- 245 (pa)
INSTALLATION
- Wall
- Ceiling
AIR FLOW
- Max : 110 m3/h.
- Min : 75 m3/h.
USE
Indoor
SPEED CONTROLLER
Vortice Speed Controller.
INSULATION CLASS
II°
PRODUCTION
Made in Uk
SOUND PRESSURE LEVEL LP
- Max : 34.3 dB (A)] 3m
- Min : 26.3 dB (A)] 3m
CERTIFICATIONS
-IMQ -CE
IMQ PERFORMANCE
-CCC -EAC
ABSORBED CURRENT
- Max Speed : 0.12 A
- Min Speed : 0.10 A
DOWNLOADS
↓ Technical Data Sheet
↓ Instruction Manual
↓ Energy Data Sheet
↓ Wiring Diagram
↓ Certification
CURVES
CAPACITOR
Capacitor start 2-speed induction motor coupled to a forward bladed centrifugal impeller, with thermal overload cutout and self-lubricating bushings.
FEATURES
- Stylish centrifugal extractor fan
- Recessed version requires additional ceiling kit code 22491 for ceiling installation
- For intermittent extract of bathrooms, shower rooms, en suites, w.c’s
- Suitable for ducting up to roof tile vents
- Air extraction on four sides of the appliance
- High extraction to overcome pressure loss when long ducts are used
- IPX4 splash proof protection on all models
- The standard models can be speed regulated

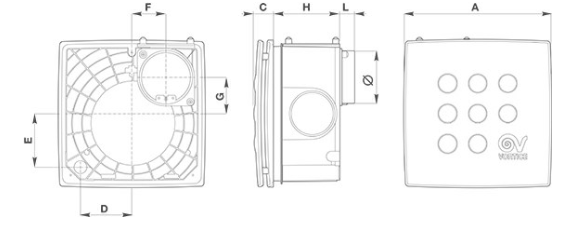

DIMENSIONS
| SIZE | NO. |
|---|---|
| Size A (mm) | 258 |
| Size C (mm) | 34 |
| Size D (mm) | 92 |
| Size E (mm) | 90 |
| Size F (mm) | 64 |
| Size G (mm) | 60 |
| Size H (mm) | 118 |
| Size L (mm) | 26 |
