PUNTO EVO ME100/4″ LL BATHROOM FAN
PUNTO M 100/4″ LL BATHROOM FAN
Protection rating of IP45 suitable for installation in Zone 1
information
BRAND
Vortice
PRODUCT TYPE
Bathroom Fan
CODE
11260
INSULATION CLASS
II°
ABSORBED POWER 1ST SPEED
5 W
ABSORBED POWER
Max. 18 W
FREQUENCY
50 hz
VOLTAGE
220-240 V
WEIGHT
0.6 kg
RPM MAX
2240
RPM MIN
1700
USE
Bathroom
DELIVERY 1ST SPEED
- 18,1 (l/s)
- 65 (m³/h)
MAX. ABSORBED CURRENT
- 0,052 (A) at max. speed
- 0,039 (A) at min. speed
NOMINAL DIAMETER
100 mm
MAX AMBIENT TEMPERATURE
50 °C
PRESSURE 1ST SPEED
- 2,5 (mmH2O)
- 24,52 (Pa)
SOUND PRESSURE LEVEL LP
- 26,9 dB (A)] 3m max speed
- 20,8 dB (A)] 3m min speed
SOUND POWER LW
- 41,3 dB (A)] min speed
- 47,4 dB (A)] min speed
PRESSURE MAX
- 4,7 (mmH2O)
- 46,09 (Pa)
DELIVERY MAX
- 18,1 (l/s)
- 65 (m³/h)
IP
45
MAXIMUM AIR FLOW
90m3/h.
CERTIFICATIONS
-IMQ -CE
IMQ PERFORMANCE
-VDE -EAC
MATERIAL
UV resistant plastic (prevents ageing caused by exposure to sunlight).
MAX. ABSORBED POWER
9 (W) at max speed
MOTOR PROTECTED
Motor protected against thermal overload, with shaft turning in ball bearings; 2 operating speeds controlled electronically from pcb.

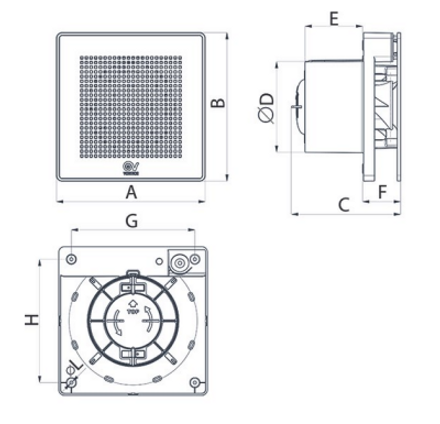

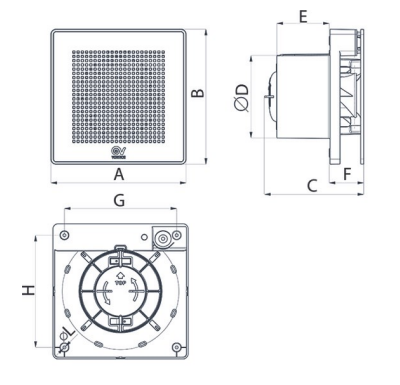

DIMENSIONS
| SIZE | NO. |
|---|---|
| Size A (mm) | 159 |
| Size B (mm) | 159 |
| Size C (mm) | 116,5 |
| Size D (mm) | ø 98 |
| Size E (mm) | 61,5 |
| Size F (mm) | 40,5 |
| Size G (mm) | 132 |
| Size H (mm) | 132 |
| Size L (mm) | ø 3,5 |
DETAIL
- Equipped with non-return damper preventing unwanted backdraught when the fan is off.
- IMQ safety certification.
FEATURES
- Low decibel rating of 21 dB(A)
- Power consumption at low speed of only 5 Watts
- For intermittent extract of bathrooms, shower rooms, en suites, w.c’s
- Long Life bearings
- 2 speeds
- Integrated backdraught shutters
DOWNLOADS
↓ Technical Data Sheet
↓ Instruction Manual
↓ Energy Data Sheet
↓ Wiring Diagram
↓ Certification
