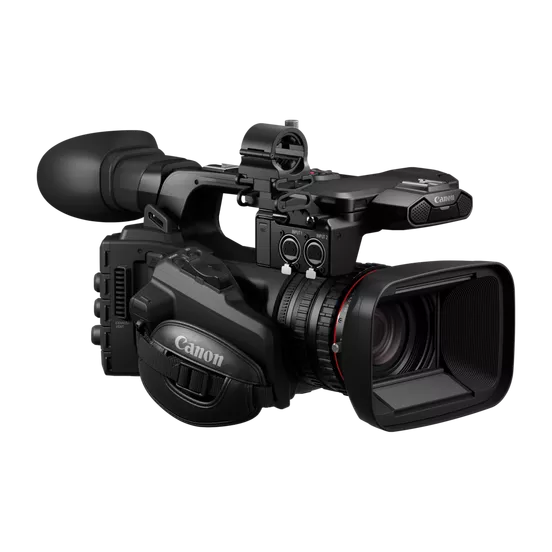

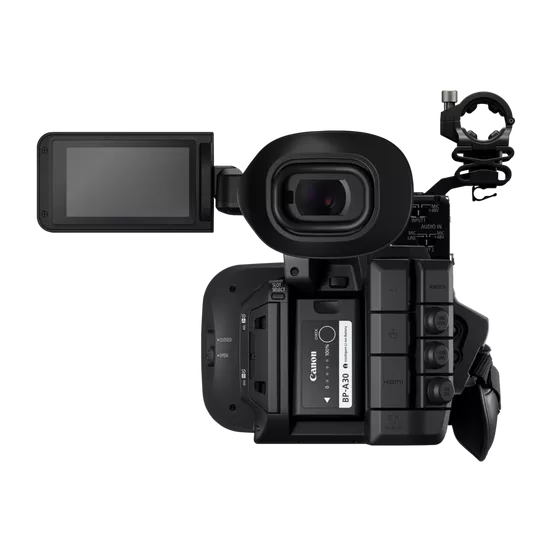

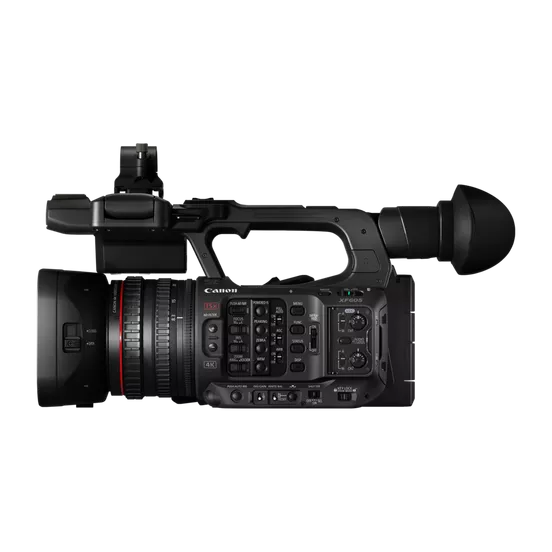

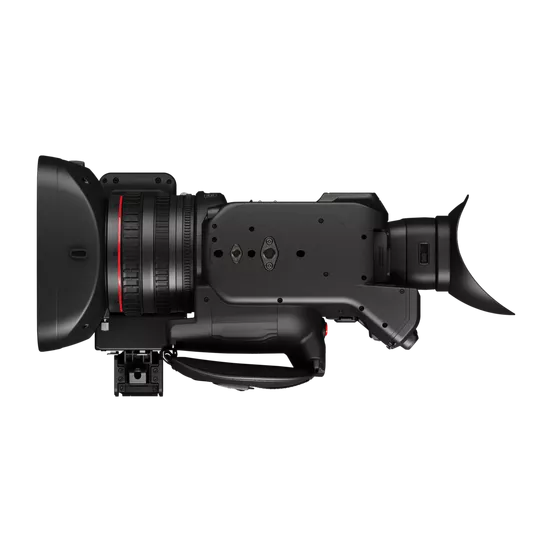

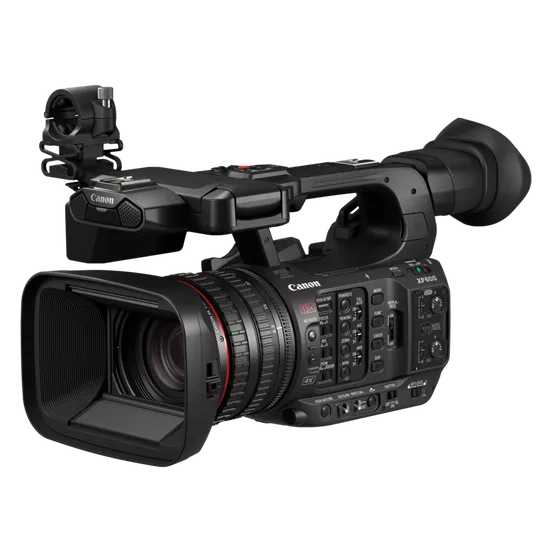

CANON XF605 PROFESSIONAL VIDEO CAMERAS
A versatile broadcast quality 4K camcorder, offering advanced AF, connectivity and streaming for demanding productions.
A VERSATILE 4K CAMCORDER TO GET YOUR SHOT AND TELL YOUR STORY
XF605 delivers a new level of performance and control for solo shooters. With 15x optical zoom, professional connectivity and advanced autofocus including Eye Detection AF and intelligent Head Tracking for the first time in the XF Series, it’s a versatile camcorder that fits comfortably in the studio or in the field.
FEATURES
BROADCAST-QUALITY VIDEO
The large 1.0-inch Type CMOS sensor and DIGIC DV7 processor work in harmony to deliver 4K UHD 60P/50P in 4:2:2 10-bit XF-AVC and MP4, as well as FHD 120P HFR for exceptional image quality and flexibility in post-production.
PROFESSIONAL OPTICS AND CONTROL
Resolve fine details with the 4K ready L-Series lens offering 15x optical zoom, and equipped with independent rings for Zoom, Focus and Iris control. Also featured are three Image Stabilisation modes, as well as built-in ND filters and Infrared mode, offering even greater control.
ADVANCED AUTOFOCUS
Acquire pin-sharp focus on your subject’s eyes with Eye tracking AF*, and intelligent head tracking via EOS iTR AF X, an innovative ‘deep learning’ technology to track a subject's head, even when looking away.-Eye Tracking AF also supported in S&F modes.
RECORDING VERSATILITY
Capture an expanded dynamic range in Canon Log 3 for flexibility in post-production or shoot directly in broadcast-ready PQ or HLG HDR formats. Simultaneous recording to dual SD cards in a variety of formats (incl. All-I & Long GOP) offers maximum flexibility for your production needs.
CONTENT TRANSFER MOBILE APP
Content Transfer Mobile is an app for iPhone designed to enable the editing of News ML-G2 standard compliant metadata pre/post capture, as well as the ability to import footage from the camera to the phone, including instant transfer to FTP servers.
SHARED COLOUR SCIENCE
XF605 supports the same colour matrices as Canon's Cinema EOS and EOS R System product ranges, reducing the time needed in post-production to match colour in footage from multiple camera ranges.
DURABLE AND LIGHTWEIGHT
With its notably compact size and body weight of approximately 2,010g, XF605 is the perfect ‘carry-on’ companion. Despite its small dimensions, it’s a highly capable workhorse camcorder, with a durable dust and drip-proof design.
PROFESSIONAL CONNECTIVITY AND STREAMING
XF605 seamlessly integrates into live and offline environments, with 12G-SDI, Wi-Fi and Ethernet for IP streaming.
The Content Transfer Mobile app enables the editing of News ML-G2 compliant metadata, transferring of footage to your iPhone, and direct uploading to FTP servers.Canon’s XC Protocol for multi-camera control solutions are also supported.
INTUITIVE CONTROLS AND CUSTOMISATION
Stay in control and customize the XF605 to your needs with independent controls and 11 assignable buttons.
An enhanced touchscreen interface allows for quick and intuitive control of on-screen settings, menu navigation and playback control. A new multi-function accessory shoe opens the door for additional accessories with expanded capabilities.
Specifications
CANON LOG 3 AND HDR
Dynamic range capability
1.0-TYPE CMOS SENSOR
Stunning image quality
WIDE-ANGLE 15X OPTICAL ZOOM
L-Series lens
4K 60P/50P 4:2:2 10-BIT AND FHD 120P
High bit depth
DUAL PIXEL CMOS AF
Eye Detection AF and intelligent head tracking
PROFESSIONAL I/O CONNECTIVITY
Wi-Fi, Ethernet, 12G-SDI and USB-C
INFORMATION
SENSOR SENSOR SIZE
1.0 type (3.2μm)
IMAGING ENGINE
DIGIC DV7
LENS CONTROL RINGS
3 (Focus / Zoom / Iris)
CONNECTIVITY SDI
x1 (12G-SDI)
CONNECTIVITY XLR
x2
CONNECTIVITY HDMI
x1 (Type-A)
ETHERNET (WIRED LAN
Yes
INCLUDED CHARGER
CG-A20
INCLUDED BATTERY
BP-A30
INCLUDED POWER ADAPTER
CA-CP200L
INFRARED COMPATIBILITY
Yes
WI-FI
2.4GHz/5GHz 11a/b/g/n/ac MIMO
AUTO FOCUS
Dual Pixel CMOS AF Eye Detection AF EOS iTR AF X Face Priority AF Face Only AF Tracking AF
LENS MAGNIFICATION, FOCAL LENGTH, APERTURE
Optical 15x 25.5 - 382.5 mm F/2.8 - 4.5
LCD MONITOR
3.5-inch Approx. 2.76 million dots Capacitive Touch Panel
EVF
0.36-inch (Approx. 1.77 Million Dots)
MEDIA MEMORY CARD
x2 SD Card (UHS-II Compatible)
CONNECTIVITY USB
x1 Type-A (Host), x1 Type-C (Device)
OTHER TERMINALS
BNC x2 / Headphone / Mic / Remote A, B / DC
LENS IMAGE STABILIZATION
Optical (Powered IS / Dynamic Mode)
SENSOR EFFECTIVE PIXELS
8.29 million (Approx.) (Total Pixels: Approx. 13.20 million)
ACCESSORY SHOE
Cold Shoe + Multi-Function Shoe
LENS ND FILTER
3 - Density (ND 1/4, ND 1/16, and ND 1/64)
IMAGE PROCESSOR
-Type : DIGIC DV7 -Colour Sampling : XF-AVC: 4:2:2, MP4: 4:2:2 or 4:2:0 H.265 / 4:2:0 H.264. XF-AVC / MP4 Proxy files: 4:2:0 -Bit Depth : XF-AVC / MP4 H.265: 10-bit, MP4 H.264: 8-bit ,XF-AVC / MP4 Proxy files: 8-bit
EVF
- Size : 0.36-inch type, approx. 1.77 million dots
- EVF Auto -Off : Yes, function enabled/disabled via menu
- Correction Lens : +2.0 to -5.5 dioptre
AUDIO
- Recording Format: MP4: MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch) XF-AVC: LPCM (24-bit 4ch)
- Audio Control: Manual or Auto Independent 2ch Line/Mic/Mic+48V input; Independent level control per channel (-∞ to +18 dB); Independent audio limiters (2-Ch.); Input mic trimming
- Audio Control: 1KHz, -12dB / -18dB / -20dB / Off
- Microphone Attenuation: On / Off (20dB)
- Microphone Level Meter: Yes
MISCELLANEOUS
- Tally Lamp : Yes
- Colour Bars (PAL) ; Yes. SMPTE, ARIB or EBU, with 1KHz Tone
- Accessory Shoe : Yes, Accessory and Cold shoe
- Assignable Buttons : Total of 11 Assignable Buttons with over 100 Assignable Functions
- Custom Dial " Av / Tv / M / AGC Limit / Exposure Compensation / Off
TIME CODE
- Count Up System : Regen / Rec Run / Free Run / Preset. Drop frame / Non Drop Frame selectable
- Start Value Setting :
Yes, Via BNC or HDMI
IMAGE SENSOR
- Sensor : 1.0 Inch-Type CMOS
- Filter : RGB Primary Colour Filter
- Total Pixels : Approx. 13.4 MP
- Effective Pixels per Sensor : Approx. 8.29MP (3840 x 2160)
- Gain Boost Function : Yes, increases gain to 36dB, activated via user assigned button
- Sensitivity (PAL): f/13, 50.00P, 2000 lux, reflectance 89.9%
- Minimum Illumination (PAL):
50.00P / 50.00i Approx. 2.5 lux (1/50 second shutter speed)
25.00P Approx. 1.3 lux (1/25 second shutter speed)
SYSTEM
-Display Type : LCD Electrotstatic Touch Panel. -Size : 3.5-inch type Approx 2.76 million dots
-W ave Form Monitor : Yes
- Focus Assist : Dual Pixel Focus Guide (MF mode) / Peaking / Magnify
- Peaking Selectable Peaking Colour: Red / Blue / Yellow / White
- False Colour Display : Yes, also via EVF, SDI and HDMI output
- Zebra : 70% or 100% reference level, selectable
- Markers : Center, horizontal, vertical, grid, aspect, safety zone, and user marker.
Each item can be displayed in yellow, blue, green, red, black, gray, or white.
EXPOSURE CONTROL
Exposure Metering : Centre-weighted average or segment evaluative (determined by shooting mode)
Fixed exposure (1/50 sec.)
- Exposure Compensation: Highlight AE, Exposure lock, Auto backlight compensation, Exposure compensation amount shown as ±3 when locked or ±2 in AUTO (±8 increments).
-Exposure Lock : Yes
- ISO Range/Setting : ISO200 - ISO12,800. 1 Stop or 1/3 Stop increments
- Gain Range Setting : -6.0dB - 21.0dB. Normal or Fine setting. Fine setting in 0.5dB steps.
- Auto Gain Control Setting : Auto / Manual. Auto Gain set when shooting in IR mode
- Auto Gain Control Limit : Yes, selectable from -6dB to 21db, 1dB increments
SHUTTER
- Control Modes: Auto, P, Tv, Manual
- Shutter Speed (PAL)l : Max 1/2000 Sec.
- Shutter Angle : Yes, 360° to 11.25°
- Slow Shutter (SLS) : 50.00i/50.00P: 1/3, 1/6, 1/12, 1/25 sec 25.00P: 1/3, 1/6, 1/12 sec
- Clear Scan (PAL) :
Yes, 24.00Hz to 2003.17Hz
WHITE BALANCE
- Auto : Yes. Shockless WB, AWB Response, AWB Hold (via assignable button)
- Preset : Daylight (Approx. 5,600K), Tungsten (Approx. 3,200K)
- Manual Setting : Colour Temperature range: 2,000–15,000K Default value for Set 1 and Set 2: 5,600K
STREAMING, WI-FI, & GPS SPECIFICATIONS
- IP Streaming Protocols Supported :Canon XC2, UDP, RTP, RTP+FEC, RTSP+RTP priority/White priority), Daylight,
- News Metadata : Yes, compliant with NewsML-G2 standard
- Browser Remote Control : YYes
- GPS Information (Optional Accessory) : Location (Latitude / Longitude / Altitude), Coordinated Universal Time (UTC), Satellite reception (requires the optional GPS Receiver GP-E2)
- Supported Wi-Fi : IEEE 802.11b/g/n (2.4GHz) IEEE 802.11a/n/ac (5GHz)3
SHOOTING MODES
- Exposure Control : AUTO Mode Manual Mode: P, Tv, Av, M (manual exposure)
- Custom Picture Menu : CP Files: C1: BT.709 Normal,C2: BT.709 Wide DR C3: BT.709 Standard .C4: Canon Log 3 C5: PQ (BT.2020) C6: HLG (BT.2020) C7: EOS Standard C8: EOS Neutral C9 - C20: User Defined
- Viewing Angle (Horizontally/Vertically) : Approx. 170° vertically and horizontally
- Look File : User defined. Cube format Look File. Created on third-party software
- Colour Matrix Settings : Neutral, Video, Production Camera
- Infrared Shooting Mode : Yes
- Built-in IR Lamp : Yes, in Handle Unit. Wavelength: 850nm (near-Infrared)
ACCESSORIES
- Supplied : Lens hood with barrier, Lens Cap, Mic holder unit, Eye Cup, AC Cable, Compact Power Adapter (CA-200L) Battery Charger (CG-A20), Battery Pack BP-A30
- Optionals : Canon Battery Pack BP-A30 / BP-A60 Canon Battery Charger CG-A10 / CG-A20 Canon Compact Power Adapter CA-CP200L Canon 8 Pin Remote Cable RR-10 / RR-100 Canon Teleconverter TL-U58 Canon Wide Attachment WA-U58 Canon
PROTECT Filter 58mm Canon ND4L Filter 58mm Canon ND8L Filter 58mm
Canon GPS Receiver GP-E2 Canon Remote Controller RC-V100 Canon Remote Camera Controller RC-IP100 Canon Interface Cable IFC-150AB III
POWER SOURCE
- Power Supply (Battery) : Canon Battery Pack BP-A30 (supplied), BP-A60 (optional)
- Power Supply (Mains): 24V- RAW+JPEG Simultaneous Recording : Image Size
- Power Consumption : Approx 13.6W (50.00P UHD, Long GoP 260 Mbps) Approx 12.1W (25.00P UHD Intra 410 Mbps)
- Recording Time: With supplied BP-A30 Approx 185 mins.(50.00P UHD, Long GoP 260 Mbps) Approx 210 mins. (25.00P UHD Intra 410 Mbps)
PHYSICAL SPECIFICATIONS
- Dimensions (Main Body Only) : Approx. 168 x 173 x 333 mm (Body Only) Approx. 200 x 219 x 385 mm (Including lens hood, eye cup, microphone holder unit)
- Weight (Body Only) : 2010g (Approx.)
- Weight (Accessories) : 2460g (Approx.)
- Canon Log : Not supported
- Operating Temperature Range : Approx. 0 to 40 °C, 85 % (relative humidity) Approx. -5 to 45 °C, 60 % (relative humidity)
INPUTS / OUTPUTS
- Audio Input: XLR 3-pin jack (x2) with 48V phantom power, Line and Mic, Additional inputs via third-party accessory attached to shoe.
3.5mm microphone input jack (Supply Voltage 2.4V DC), Built-in Mic.
- Headphone Output: 3.5mm stereo mini jack
- Speaker: Yes, built-in
- HDMI Output : HDMITM Type A
- USB: 1 x Type A. Type A power output 5V/900mA 1 x Type C. Type C compliant with PTP and UVC
- SDI Output: I12G-SDI, BNC connector
- Time Code):Yes, BNC connector
- Genlock:Yes
- LAN: Yes
- DC Input : 3.4mm jack
- Remote Control Terminal: Type A (2.5mm jack), Type B (8-pin connector, RS422-type)
LENS
- Zoom Ratio : 15x optical, (30x Advanced Zoom Full HD)
- Focal Length (35mm Equivalent) : Approx. 25.5 to 382.5 mm Standard IS/IS Off
- Minimum Focus Distance : 10 mm at wide end, 60 cm across entire zooming range
- Max. Aperture : f/2.8
- Aperture Blades :9 blade
- Filter Diameter : 58mm
- Image Stabilization System :Optical system (lens shift) + electronic stabilization
- Dynamic, Standard, Powered, Off : 3 densities: turret switched, motor-driven. ND 1/4, ND 1/16, and ND 1/64.
- Zoom Control ': Zoom rockers on body and handle; Selectable manual zoom/focus ring on lens; Wireless controller via Browser Remote. Via RC-IP100 Canon Camera Controller1 Selectable High Speed mode available.
- Zoom Speed : Variable or Constant speed Fast/Normal/Slow, 16 speed level settings
- Focus Control : MANUAL: Lens ring and touchscreen point selection (Focus Guide and Peaking assist functions), Focus Preset.
AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Face Only AF, Face Priority AF.
(Continuous AF, AF-Boosted MF, AF Speed, AF Response, AF Frame size)
- Focus System : Dual Pixel CMOS AF, Contrast AF, Eye AF, EOS iTR AF X
- Iris Control : Touchscreen, Auto, Lens ring
- Digital Zoom/Teleconverter : 300x Digital Zoom, Digital Teleconverter (x1.5/x3/x6. Not available when optical teleconverter used)
RECORDING
- Video Storage Media : SD / SDHC / SDXC card (2 card slots)
- Type: Class U3 cards recommended
- Recording Time : 128GB Card, approx times. XF-AVC: 410Mbps. 39 mins. 310Mbps, 51 mins. 260Mbps, 61 mins. MP4 / H.265: 225 Mbps, 71 mins. 170Mbps, 94 mins. 135 Mbps, 118 mins MP4 / H.264: 150 Mbps, 107 mins. 35 Mbps, 458 mins. 8Mbps, 2006 mins
- Recording File System : FAT32/exFAT
- Internal Recording Format (PAL) : XF-AVC (MXF): ALL-I/Long GOP. Proxy Files: Long GOP MP4: Long GOP
- Simultaneous Recording : Yes. Simultaneous recording, relay recording. Different recording options possible on each memory card.
- Recording Frame Rate (PAL) : XF-AVC 422 10bit: (3840 x 2160) 59.94P / 50.00P / 29.97P / 25.00P / 23.98P (1920x1080) 59.94P / 59.94i / 50.00P / 50.00i / 29.97P / 25.00P / 23.98P
- MP4 (HEVC / H.264) 422 10bit: (3840 x 2160/1920x1080) 59.94P / 50.00P / 29.97P / 25.00P / 23.98P
- MP4 (HEVC) 420 10bit: (3840 x 2160/1920x1080) 59.94P / 50.00P / 29.97P / 25.00P / 23.98P (1280 x 720) 59.94P / 50.00P
- MP4 (H.264) 420 8bit: (3840 x 2160/1920x1080) 59.94P / 50.00P / 29.97P / 25.00P / 23.98P (1280 x 720) 59.94P / 50.00P
- External Recording Output : 3840 x 2160: 59.94p / 50.00p / 29.97p / 25.00p / 23.98p 1920 x 1080: 59.94p / 50.00p / 29.97p / 25.00p / 23.98p / 29.97PsF / 25.00PsF / 59.94i / 50.00i 1280 x 720: 59.94p / 50.00p 720 x 480: 59.94i (SDI Only) 720 x 576: 50.00i (SDI Only)
- External Monitoring : Yes, 12G-SDI or HDMI. Simultaneous output available
- High Frame Rate : Yes, Up to 120P (FHD, 4:2:2/8-bit or 10-bit) including in 50.00Hz mode. Simultaneous Audio Recording
- Pre-Record FunctionPre-Record Function -Special Recording FunctionsFrame Recording, Interval Recording -- Still Photos : JPEG up to 3840x2160 (Still image resolution is dependent on the video resolution)
- Photo Storage Media :
SD Card (Slot B)
