Canon Eos R3 Mirrorless Cameras
CANON EOS R3 MIRRORLESS CAMERAS
CANON EOS R3 MIRRORLESS CAMERAS
Fleeting moments in time, captured on camera in ways that you never thought were possible. Welcome to the future of action photography.
FEATURES

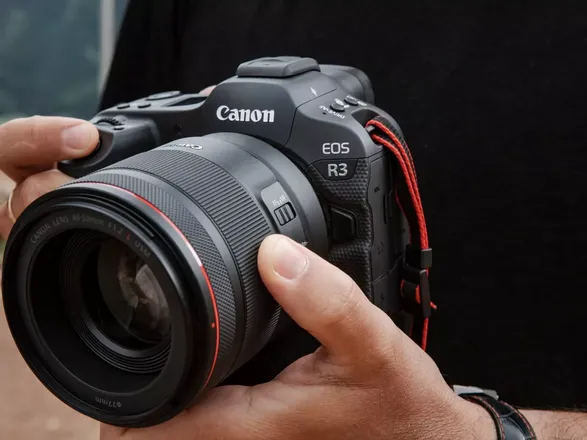

INTRODUCING THE NEXT CHAPTER IN EOS
The EOS R3 will change the way you think about mirrorless cameras. A back-illuminated stacked sensor can freeze action at 1/64,000 and powers continuous shooting at 30fps which extends up to 195fps1. Eye-controlled AF intelligently recognises and tracks subjects as you shoot – superb for sports, news and wildlife photography.
OUR BEST SUBJECT TRACKING YET
-Using deep-learning artificial intelligence and thousands of real-world images, we’ve taught the EOS R3 to recognise people, animals and vehicles accurately and confidently – wherever they move in the frame. -People can be tracked even if they are wearing a mask helmet or sunglasses. When photographing motorsports, the EOS R3 can recognise motorbikes and racing cars, even distinguishing between closed and open cockpits, pinpointing a driver’s helmet when this is visible.
A FUSION OF VIDEO AND STILL-PHOTO PERFORMANCE
-The EOS R3 is a professional hybrid, able to capture cinematic, broadcast-quality video and sensational still photography. Bristling with features that empower filmmakers to new levels of creativity, the camera can capture oversampled 4K as well as 6K RAW footage internally to a CFexpress card. Canon Log 3 provides greater dynamic range and colour-grading possibilities. -Crucially, the same object recognition available to stills photographers is also available to videographers, so you can track moving objects around the frame, keeping them in sharp focus even when working.
CONNECTED TO THE WORLD
-Connectivity is vital for sports and news photographers. The EOS R3 uses its wired LAN socket and 2.4/5GHz Wi-Fi to talk to computer networks, laptops and mobile devices for fast, easy image sharing and remote camera control. The EOS R3 is also compatible with our Mobile File Transfer app, which lets pro photographers add metadata and transmit images from a smartphone, using either Wi-Fi or mobile phone data. -The EOS R3 also features a new multifunction accessory shoe that provides data communication and power for new accessories, as well as acting as a hotshoe for existing Speedlites and triggers.
OUTPACE. OUTPERFORM
A camera that lets you photograph sport, wildlife and news like never before. Identify subjects just by looking at them – a truly intuitive experience – and stay ahead of the competition with 30fps continuous shooting and advanced connectivity that lets you smash your deadline.
MASTERING MOVEMENT
- The EOS R3 captures fleeting moments at 30fps which extends up to 195fps1, revealing details that are missed with the naked eye. -The camera’s back-illuminated stacked sensor is so fast it lets photographers use an electronic shutter to freeze fast movement without worrying about ‘rolling shutter’ distortion. Enjoy a top shutter speed of 1/64,000sec plus 30fps shooting with simultaneous AF/AE tracking for up to 420 frames when shooting Raw files.
-Want more? With custom high-speed continuous shooting, the EOS R3 can shoot customisable frame rate bursts up to 195fps, capturing exquisite detail in fast-moving subjects. Up to 50 frames can be captured in single burst with images stored as JPEG, HEIF or RAW.
ADVANCED EYE-CONTROL AF
Ever used a camera that feels like it’s reading your mind? With our next-generation Eye Control autofocus technology, the EOS R3 focuses wherever you are looking. This unparalleled control over AF allows the camera to react as quickly as you do – allowing you to respond fast to ever-changing scenes.
DESIGNED AND BUILT FOR THE PROS
- he EOS R3 is built to withstand the demands of day-to-day professional use, and whatever life throws at you. -From dust storm to downpour, a tough, magnesium-alloy body is dust-and-water sealed to the same level as our legendary EOS-1D series cameras. Have the confidence to keep shooting whatever the conditions throw at you.
FITS RIGHT INTO YOUR EXISTING SYSTEM
-The EOS R3 fits right into your existing system, working alongside your other mirrorless or DSLR cameras. -It’s powered by a high-capacity LP-E19 battery – the same as you’ll find in our EOS-1DX series bodies. Your EF lenses will work exactly as they should too, thanks to a range of high-quality mount adaptors, which can also add extra functionality, like a Control Ring or drop-in filters
RESPONSIVE CUSTOMISABLE CONTROLS
-The EOS R3 is a professional thoroughbred. It’s shape and form are informed by our EOS-1DX series cameras, but is smaller and lighter, incorporating the design principles of the mirrorless EOS R system for superb handling. -The camera offers a choice of controls, with both a multi-controller and smart controller falling instinctively within reach of your thumb. Three customisable dials on the camera body, plus a Lens Control ring on each RF mount lens, allow shutter speed, aperture, ISO and exposure compensation to be adjusted with the camera at your eye. An instant 1.6x digital teleconverter is also available at the touch of a button for extended reach – particularly useful for on-the-spot cropping with reduced need for post processing.
The EOS R3 is also equipped with a four-million-dot high-resolution Vari-Angle screen, that is clear and brilliant, even in bright conditions. It lets you compose easily from creative perspectives. Dual card slots allow image files and video footage to be written to widely available SD cards (with support for UHS-II) or super-fast, next-generation CFexpress media.
CANON AIMS TO ACHIEVE NET-ZERO CO2 EMISSIONS FROM ITS BUSINESS ACTIVITIES BY 2050
We will achieve this by delivering an average improvement of 3% per year in the lifecycle CO2 emissions improvement index per product. Which if sustained would mean roughly a 50% reduction from 2008 levels by the year 2030. We recognise this to be in line with the level of reduction called for by the Paris Agreement.
THE EOS R3 IN A SNAPSHOT
INFORMATION
PHYSICAL SPECIFICATIONS
-Operating Environment : 0 – 40 °C, 85% or less humidity
-Dimensions (W x H x D) : 150x 142.6 x 87.2mm
-Weight (Body Only) Approx. 822 g (1015g with card and batt
-Body Materials : Magnesium Alloy body and polycarbonate with glass fibreery)
POWER SOURCE
-Power Saving
-Battery Indicator : 6 levels + percentage
-Batteries : Rechargeable Li-ion Battery LP-E19 (supplied)
-Power turns off after 15 seconds, 30 seconds, 1, 3, 5, 10 or 30 mins
-Battery Life : With LCD Approx.860 shots (at 23°C), With Viewfinder Approx. 620 shots (at 23°C)
-Power Supply & Battery Chargers : Battery charger LC-E19E (supplied), AC Adapter AC-E19 and DC Coupler DR-E19, PD-E1 USB power adapter
SOFTWARE
-Image Processing : Digital Photo Professional 4.15 or later Digital Photo Professional Express mobile app (iOS only)
-Other : EOS Utility 3 (incl. Remote Capture), Picture Style Editor, WFT Utility, EOS Lens Registration Tool, EOS Web Service Registration Tool, Canon Camera connect app (iOS/Android), Mobile File Transfer app (iOS/Android),
STORAGE
Type : 1x CFexpress type B maximum capacity 2TB, 1x SD/SDHC/SDXC and UHS-II
INTERFACE
-Computer : SuperSpeed USB 3.2 Gen 2 USB C connector
-Wi-Fi : Wireless LAN (IEEE802.11a/b/g/n/AC) (5 GHz /2.4 GHz)13, with Bluetooth 5.0 support Features supported - EOS Utility, Smartphone, Upload to image.canon, Wireless printing, FTP, FTPS
-Other : HDMI Micro out (Type D, HDMI-CEC compatible), External Microphone In (Stereo mini jack), Headphone socket (Stereo mini jack), N3-type terminal (remote control terminal)
SUPPORTED OPERATING SYSTEM
-PC : Windows 10 and Windows 11 (tablet mode not supported)
-Macintosh : 10.15. OS 11, OS 12, OS 13
LENS
-Lens Mount : RF / RF-S (EF and EF-S lenses can be attached using EF TO EOS R ADAPTER, EF TO EOS R ADAPTER WITH CONTROL RING, EF TO EOS R Drop in filter ADAPTER. EF-M lenses not compatible)
-Focal Length : Equivalent to 1.0x the focal length of the lens with RF and EF lenses 1.6x with EF-S/RF-S
IMAGE PROCESSOR
Type : DIGIC X
DIRECT PRINT
PictBridge : Not supported
WHITE BALANCE
-Settings : White balance compensation: 1. Blue/Amber +/-9, 2. Magenta/Green +/-9
-Custom White Balance Yes, 5 setting can be registered : +/-3 levels in single level increments
-WB Bracketing : 3, 2, 5 or 7 bracketed images per shutter release, Selectable Blue/Amber bias or Magenta/Green bias
-Type : Auto white balance with the imaging sensor AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting
LCD MONITOR
-Type : 8.01 cm (3.2") Clear View LCD II, Approx. 4.15 million dots
-Coverage : Approx. 100%
-Viewing Angle (Horizontally/Vertically) : Approx. 170° vertically and horizontally
-Coating : Anti-smudge.
-Brightness Adjustment : Manual: Adjustable to one of seven levels, Colour Tone Adjustment: 4 settings
-Touch Screen Operations : Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in still and Movies, touch shutter is possible in still photo shooting.
-Display Options : (1) Basic Camera settings
(2) Advance Camera settings
(3) Camera settings plus histogram and dual level display
(4) No info
(5) Quick Control Screen
(6) Display off
FLASH
-Flash Exposure Lock : Yes
-Modes : E-TTL II Auto Flash, Metered Manual
-External Flash Control : via camera menu screen
-Second Curtain Synchronisation : Yes, via Speedlite
-Flash Exposure Bracketing : Yes, with compatible External Flash
-Flash Exposure Compensation : +/- 3EV in 1/3 increments with EX series Speedlite flashes
-External Flash Compatibility : E-TTL II with EX/EL series Speedlite, wireless multi-flash support
-X-Sync : 1/200th sec mechanical shutter / 1/250th electronic 1st curtain, 1/180th sec Electronic shutter
IMAGE SENSOR
-Aspect Ratio : 3:2
-Type : 36 x 24 mm CMOS
-Low-Pass Filter : Built-in/Fixed
-Colour Filter Type : Primary Colour
-Total Pixels : Approx. 26.7 megapixels
-Effective Pixels : Approx. 24.1 megapixels
-Sensor Cleaning : EOS integrated cleaning system
-Sensor Shift-IS : Yes, up to 8-Stops advantage depending on the lens used1
SPECIFICATIONS
-Stacked sensor : Stacked, back-illuminated sensor
-4K 120p : Record slow motion video in ultra-high detail
-Full HD 240p : Record ultra slow motion video in high detail
-Up to 195fps high-speed burst1 : Shoot with a customisable burst rate
-Vari-Angle screen : Fully articulated, 8.2cm, 4,200,000-dot touch screen
-WiFi & Bluetooth : Wireless connectivity for remote control and image transfer
-Max ISO 102,400 : Sensitivity from ISO 100 to ISO 102,400 (expands to ISO 204,800)
-Eye control AF : Select focus points or subjects to track simply by looking at them
-24 megapixel resolution : The ideal balance of image quality, high ISO performance and file size
-Up to 8-stop IS : Rock steady In-body Image Stabiliser that works in tandem a lens’s own IS
-Subject tracking : Automatically tracks people, animals and vehicles in both photo and video modes
-6K RAW : 60 fps with the greatest flexibility to change settings like white balance in post-production
-30fps burst rate : Continuous shooting up to 30fps, or 12 fps with mechanical shutter, with AE and AF tracking
-Electronic viewfinder : Blackout-free 5,760,000-dot electronic viewfinder with 120fps refresh rate and 100 per cent coverage
FOCUSING
-Type : Dual Pixel CMOS AF II
-AF Modes : One Shot,Servo AF
-Manual Focus : Selected on lens
-AF Working Range : EV -7.5 – 20 (at 23°C & ISO100)3
-AF Assist Beam : Emitted by built in LED or optional dedicated Speedlite (flash)
-AF Tracking : Humans, Animals (Dogs, Cats and Birds) or Vehicles (Racing cars or Motor bikes)
-AF System / Points : With Area 100% horizontal and 100% vertical (Auto selection) 100% horizontal and 90% vertical (manual selection)2
-AF Lock : Locked when shutter button is pressed halfway or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo
-AF Point Selection : Automatic selection: 1053 Available AF areas when automatically selected
Manual selection: 1-point AF (AF frame size can be changed) 4779 AF positions available stills ( 3969 Movies)
Manual selection: AF point Expansion 4 points (up, down, left, right)
Manual selection: AF point Expansion surrounding
Manual selection: Flexible Zone AF 1-3 (all AF points divided into minimum 9 to 999 maximum focusing zones)
SHUTTER
-Shutter Release : Soft touch electromagnetic release
-Type : Electronically controlled focal-plane shutter and Electronic shutter function in sensor
-Null : Mechanical: 30-1/8000 sec (1/2 or 1/3 stop increments), Bulb Electronic: 30-1/64000 (1/2 or 1/3 stop increments up to 1/16000 then 1 stop until 1/64000) (Total shutter speed range. Available range varies by shooting mode)
EXPOSURE CONTROL
-AEB : +/-3 EV in 1/3 or 1/2 stop increments
-Manual: By AE lock button in P, Av, Fv, Tv and M modes
-AE Lock : Auto: AE lock takes effect when focus is achieved
-Metering Brightness Range : EV -3 – 20 (at 23°C, ISO100, with evaluative metering)
-Exposure Compensation : +/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB)
-ISO Sensitivity : Auto 100-102400 (in 1/3-stop or whole stop increments), ISO can be expanded to L:50, H1:2048004
-Anti-flicker Shooting : Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. Maximum continuous shooting speed may decrease available with both electronic and mechanical shutter
High Frequency anti flicker shooting for M and TV mode
-Metering Modes : Real-time with image sensor, 384-zone metering.
(1) Evaluative metering (linked to All AF points)
(2) Partial metering (Approx. 5.9% of viewfinder at centre)
(3) Spot metering: Centre spot metering (Approx. 2.9% viewfinder at centre) AF point-linked spot metering not provided
(4) Centre weighted average metering
VIEWFINDER
-Magnification : Approx. 0.76x5
-Type : 0.5- inch OLED colour EVF
-Dot Count : 5.76 Million dots (1600x1200)
-Coverage (Vertical/Horizontal) : Approx. 100%
-Dioptre Correction : -4 to +2 m-1 (dioptre)
-Depth of Field Preview : Yes, via customised button
-Eyepoint : Approx. 23mm (from eyepiece lens centre)
-Display Performance : Power saving: 59.94 fps Smooth 119.98 fps , supress low frame rate 60 -119.8fps6
-Viewfinder Information : AF point information, Eye Control pointer, Exposure level indicator, Shooting mode, ISO speed, Shutter speed, Aperture, Number of remaining multiple exposures, Exposure compensation, HDR shooting, Highlight tone priority, Multiple-exposure shooting, Multi Shot Noise Reduction, Number of self-timer shooting, Digital Lens Optimizer, Maximum burst, AF method, Battery level, AF operation, Exposure simulation, Drive mode, AEB, Metering mode, FEB, Anti-flicker shooting, Still photo cropping, Aspect ratio, Auto Lighting Optimizer, AE lock, Picture Style, Flash-ready, White balance, Flash off, White balance correction, FE lock, Image Quality, High-speed sync, Bluetooth function, Wi-Fi function, Multi-function lock warning, Histogram, Electronic level, Lens information, focus distance scale, vertical exposure scale, Grid.
FILE TYPE
-File Naming : 2 User Presets
-Folders : New folders can be manually created, named and selected
-File Numbering : (1) Consecutive numbering (2) Auto-reset (3) Manual reset
-RAW+JPEG Simultaneous Recording : Yes, any combination of RAW + JPEG or RAW + HEIF possible,, RAW/ C-RAW:
3:2 ratio 6000x4000, 1.6x (crop) 3744x2496. JPEG/ HEIF:
-Image Size : 3:2 ratio (L) 6000x4000, (M) 3984x2656, (S1) 2976x1984, (S2) 2400x1600
1.6x (crop) (L) 3744x2496, (S2) 2400x1600
4:3 ratio (L) 5328x4000, (M) 3552x2664, (S1) 2656x1992, (S2) 2112x1600
16:9 ratio (L) 6000x3368, (M) 3984x2240, (S1) 2976x1680, (S2) 2400x1344
1:1 ratio (L) 4000x4000, (M) 2656x2656, (S1) 1984x1984, (S2) 1600x1600
-Still Image Type : RAW 14 bit: RAW and C-RAW (Canon original RAW 3rd edition)
JPEG 8 bit: 10 compression options
HEIF 10 bit: 10 compression options
Complies with Exif 2.31 and Design rule for Camera File system 2.0
Complies with Digital Print Order Format [DPOF] Version 1.1
ACCESSORIES
-Wireless File Transmitter : None
-Lenses : All RF lenses (EF & EF-S via Lens adapters)
-Lens Adapters : EF TO EOS R ADAPTER, EF TO EOS R ADAPTER WITH CONTROL RING, EF TO EOS R Drop in filter ADAPTER
-Remote Controller / Switch : Remote control with N3 type socket, Speedlite 600EX-II-RT. Speedlite EL-1 and BR-E1 Bluetooth remote
-Other : Eyecup ER-h, Eyecup ER-hE, Multi-Function Shoe Adapter AD- E1, Multi-Function Shoe Directional Stereo Microphone DM-E1D (Mic), Multi-Function Shoe Adapter for Smartphone Link AD-P1 for Android, Stereo Microphone DM-E1 / DM-E100, Tascam CA-XLR2d-C XLR microphone adapter
-Flash : Canon Speedlite (EL-115, EL-5 EL-100, 90EX, 220EX, 270EX, 270EX II, 320EX, 380EX, 420EX, 430EX, 430EX II, 430EX III 470EX-AI, 550EX, 580EX16, 580EX II17, 600EX18, 600EX-RT19, 600EX-II-RT20, Macro-Ring-Lite MR-14EX, Macro Ring Lite MR-14EX II, Macro Twin Lite MT-24EX, Macro Twin Lite MT-26EX Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT21, Speedlite Transmitter ST-E3-RT V222, Speedlite Transmitter ST- E10)
EOS MOVIE
-Dual Card Recording : Yes
-Dual Card Recording : Yes
-Microphone : Built-in mono microphone (48 KHz, 16-bit x 2 channels)
-Movie Type : MP4 Video: 4K DCI/ UHD (17:9 / 16:9), Full HD (16:9)
4K/ Full HD: AVC/H.265 variable (average) bit rate, Audio: Linear PCM / AAC
4K/ Full HD: MPEG4 AVC/H.264 variable (average) bit rate, Audio: Linear PCM / AAC
6K RAW: 12-bit CRM Audio: Linear PCM / AAC
-ISO : Manual Focus, Auto: 100-25600, H: up to 102400, Manual: 100-25600, H: up to 102400.
-Colour Sampling (Internal Recording) : 6K RAW 12bit, 4K/ Full HD - YCbCr4:2:0 8-bit or YCbCr4:2:2 10bit
-Movie Length : Max duration 6 hours. (excluding High Frame Rate movies). No 4 GB file limit with exFAT formatted card.9
-High Frame Rate Movie : MOV Video: 4K – DCI 4096x2160 / UHD 3840x2160/ Full HD 1920 x1080 at 240 / 200fps or 100 / 119.9 fps10, Recorded as 1/4-speed slow motion movie
-Frame Grab : 8.8-megapixel JPEG still image frame grab from 4K DCI movie possible, 8.3-megapixel JPEG still image frame grab from 4K UHD movie possible (HEIF only possible when HDR PQ is set)1
-Focusing : Dual Pixel CMOS AF II with Eye/Face Detection and Tracking AF (people, animals and vehicles) , Movie Servo AF
-HDMI Display : Output to external monitor only (output of images and shooting information, images are recorded to the card) Camera screen and External Monitor output (Simultaneous recording to camera and external recorder, camera screen shows images with shooting information)
-HDMI Output : 4K (DCI) 59.94p / 50.00p/29.97p /25.00p/24.00p/ 23.98p, 4K (UHD) 59.94p / 50.00p/ 29.97p / 25.00p / 23.98p, Full HD 59.94p / 59.94i, 50.00p / 50.00i 480p 59.94p 576p 50p Uncompressed YCbCr 4:2:2, 8-bit or 10-bit, sound output via HDMI is also possible

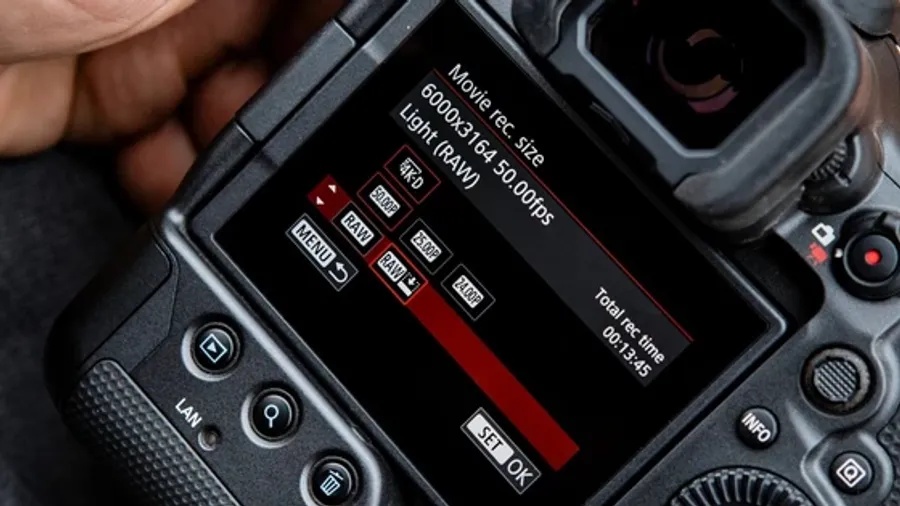

-Movie Size : 6K DCI (17:9) 6000 x 3164 (59.94, 50, 29.97, 25, 24, 23.98 fps) RAW
4K DCI (17:9) 4096 x 2160 (59.94, 50, 29.97, 25, 24, 23.98 fps) intra or inter frame / light inter frame
4K UHD (16:9) 3840 x 2160 (119.9, 100, 59.94, 50, 29.97, 25, 23.98 fps) intra or inter frame8
Full HD (16:9) 1920 x 1080 (240, 200, 119.9, 100, 59.94, 50, 29.97, 25, 23.98 fps) intra or inter frame
Full HD (16:9) 1920 x 1080 HDR (29.97, 25 fps) inter frame
SHOOTING
-Image straightening
-Interval Timer : Built in
-Image Processing : Resize to M, S1, S2
-Switch between vertical and horizontal cropping orientation
-Diffraction correction, Digital Lens Optimizer (during/after still photo shooting
-Movie: Program AE, Shutter priority AE, Aperture priority AE, Manual, and Custom (x3)
-Cropping: JPEG images can be cropped (Aspect ratios 3:2, 4:3, 16:9, 1:1), Cropping of images
-Picture Styles : Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
-Modes : Stills; Flexible priority AE, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (x3)
-Cropping frame can be moved using touch screen operation, RAW image processing, Multiple exposure, HDR, HEIF to Jpeg conversion (inc Batch conversion), Focus Bracketing and in camera compostition
-Drive Modes : Single, Continuous High+, Continuous High, Continuous Low, Custom High Speed Continuous, Self-timer (2s+remote, 10s+remote)
-Peripheral illumination correction, Chromatic aberration correction Distortion correction (during/after still photo shooting, during video only)
-Continuous Shooting : Max. Approx. 12 fps. with Mechanical shutter/1st curtain electronic speed maintained for 1000+ JPEG or 1000 RAW images or 30 FPS with electronic shutter speed maintained for 540 JPEG or 150 RAW images7. Custom High Speed Continuous option with Electronic shutter selectable for 30-195fps for 2-50frames
-Colour Space : sRGB and Adobe RGB, Highlight Tone Priority (2 settings), Auto Lighting Optimizer (4 settings), Lon exposure noise reduction, Clarity, High ISO speed noise reduction (4 settings) (still and video)
Lens optical correction
OTHER FEATURES
-Self Timer : 2 or 10 sec.
-Voice Memo : Yes
-Highlight Alert : Yes
-Water/Dust Resistance : Yes
-Intelligent Orientation Sensor : Yes
-Playback Zoom : 1.5x - 10x in 15 steps
-LCD Panel / Illumination :Yes/Yes
-Histogram : Brightness: Yes, RGB: Yes
-Firmware Update : Update possible by the user (Camera, Lens, External Speedlite, BLE remote control, Lens adapter
-SlideShow : Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating, Playback time: 1/2/3/5/10 or 20 seconds, Repeat: On/Off
-Image Erase : Erase protection of Single image, Folder or Card all found images (only during image search), Images transmitted via FTP
-Image Erase Protection : Erase protection of Single image, Folder or Card all found images (only during image search)
-Network Options : Via Wi-Fi: FTP, FTPS, Image-canon ( inc Cloud Raw Processing), Via Ethernet: FTP, FTPS, SFTP, Browser remote
-Metadata Tag : User copyright information (can be set in camera), Image rating (0-5 stars) , IPTC data (registered with EOS Utility), IPTC data (via MFT app), Image transfer with caption (Caption registered with EOS Utility)
-Menu Categories : (1) Shooting menu, (2) AF Menu, (3) Playback menu, (4) Network, (5) Setup menu, (6) Custom Functions menu, (7) My Menu
-Menu Languages : 29 Languages, English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesia and Japanese
-Display Formats : (1) Single image (2) Single image with information (2 levels) Basic - Shooting information (shutter speed, aperture, ISO and Image quality) Detailed - Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information,Brightness and RGB histogram, White balance, Picture Style, Color space and noise reduction, Lens optical correction, GPS information, IPTC information (3) 4 image index, (4) 9 image index, (5) 36 image index, (6) 100 image index (7) Jump Display (1, 10 or 100 images, start of burst sequence Date, Folder, Movies, Stills, Protected images, Rating), (8) Movie edit, (9) RAW processing, (10) Rating
BITRATE / MBPS
- CRM : 6K RAW (59.97p/50p): Approx. 2600 Mbps
- 6K RAW (29.97p/25.00p/): Approx. 2000 Mbps
- 6K RAW (24.00p/23.98p): Approx. 1600 Mbps
- 6K C-RAW (59.97p/50p): Approx. 1800 Mbps
- 6K C-RAW (29.97p/25.00p): Approx. 900 Mbps
- 6K C-RAW (24.00p/23.98p): Approx. 720 Mbps
- MOV: MP4 H.264 Canon Log off:
- 4K DCI/UHD (119.9p / 100p): Approx. 1880 Mbps
- 4K DCI/UHD (59.94p/50.00p): ALL-I Approx. 940 Mbps
- 4K DCI/UHD (59.94p/50.00p): IPB Approx. 230 Mbps
- 4K DCI/UHD (59.94p/50.00p): IPB Light Approx. 120 Mbps
- 4K DCI/UHD (29.97p/25.00p/24.00p/23.98p): ALL-I Approx. 470 Mbps
- 4K DCI/UHD (29.97p/25.00p/24.00p/23.98p): IPB Approx. 120 Mbps
- 4K DCI/UHD (29.97p/25.00p/24.00p/23.98p): IPB Light Approx. 60 Mbps
- Full HD (239.76p / 200p): Approx. 680 Mbps
- Full HD (119.9p / 100p): Approx. 360 Mbps
- Full HD (59.94p/50.00p): ALL-I Approx. 180 Mbps
- Full HD (59.94p/50.00p): IPB Approx. 60 Mbps
- Full HD (59.94p/50.00p): IPB light Approx. 35 Mbps
- Full HD (29.97p/25.00p/24.00p/23.98p):ALL-I Approx. 90 Mbps
- Full HD (29.97p/25.00p/24.00p/23.98p): IPB Approx. 30 Mbps
- Full HD (29.97p/25.00p/24.00p/23.98p): IPB Light Approx. 12 Mbps
- 4K Time Lapse (29.97p/25.00p)ALL-I : Approx. 470 Mbps
- Full HD Time Lapse (29.97p/25.00p) ALL-I: Approx. 90 Mbps
- MOV: MP4 H.265 Canon Log on
- 4K DCI/UHD (119.9p / 100p): Approx. 1880 Mbps
- 4K DCI/UHD (59.94p/50.00p): ALL-I Approx. 1000 Mbps
- 4K DCI/UHD (59.94p/50.00p): IPB Approx. 340 Mbps
- 4K DCI/UHD (59.94p/50.00p): IPB Light Approx. 170 Mbps
- 4K DCI/UHD (29.97p/25.00p/24.00p/23.98p): ALL-I Approx. 470 Mbps
- 4K DCI/UHD (29.97p/25.00p/24.00p/23.98p): IPB Approx. 170 Mbps
- 4K DCI/UHD (29.97p/25.00p/24.00p/23.98p): IPB Light Approx. 85 Mbps
- Full HD (239.76p / 200p): Approx. 940 Mbps
- Full HD (119.9p / 100p): Approx. 470 Mbps
- Full HD (59.94p/50.00p): ALL-I Approx. 230 Mbps
- Full HD (59.94p/50.00p): IPB Approx. 90 Mbps
- Full HD (59.94p/50.00p): IPB light Approx. 50 Mbps
- Full HD (29.97p/25.00p/24.00p/23.98p):ALL-I Approx. 135 Mbps
- Full HD (29.97p/25.00p/24.00p/23.98p): IPB Approx. 45 Mbps
- Full HD (29.97p/25.00p/24.00p/23.98p): IPB Light Approx. 28 Mbps
- 4K Time Lapse (29.97p/25.00p)ALL-I : Approx. 470 Mbps
- Full HD Time Lapse (29.97p/25.00p) ALL-I: Approx. 135 Mbps
