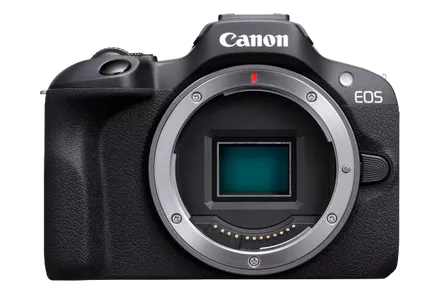

Canon Eos R100 Mirrorless Cameras

CANON EOS R100 MIRRORLESS CAMERAS

CANON EOS R100 MIRRORLESS CAMERAS

Create picture-perfect memories in outstanding quality with this intuitive EOS R camera that’s always at the ready.

Canon Eos R100 Mirrorless Cameras

FEATURES

Canon Eos R100 Mirrorless Cameras

FOR LIFE’S MOST PRECIOUS MEMORIES

Do your memories justice with this modern day essential. EOS R100 packs powerful features in a compact body and combines with a variety of lenses to achieve excellent image and video quality.

Canon Eos R100 Mirrorless Cameras

POWERFUL QUALITY YOUR MEMORIES DESERVE

Whether it’s to preserve a family event or capture a holiday, create lifelong memories in excellent image and video quality.

Canon Eos R100 Mirrorless Cameras

CAPTURE LIFELONG MEMORIES

Effortlessly capture the moment that matters in outstanding detail: the large 24.1 MP APS-C imaging sensor provides better light gathering performance and increased control over the depth of field.

Canon Eos R100 Mirrorless Cameras

A LARGER SENSOR

Get genuine depth of field with a sensor that’s 4 times larger than on a leading smartphone. No tricks are needed to achieve a blurred background and creative camera effects.

Canon Eos R100 Mirrorless Cameras

CATCH THE MOMENT

Stay in focus and enjoy pin-sharp precision like a pro. EOS R100 detects the person in frame to capture the moment right when it happens thanks to the powerful Dual Pixel CMOS Auto Focus and continuous shooting.

Canon Eos R100 Mirrorless Cameras

GET CREATIVE, EFFORTLESSLY

With the helpful guided menus and Creative Assist, you don’t need to be an expert to get the picture you want and achieve your desired effects.

Canon Eos R100 Mirrorless Cameras

STAY CONNECTED

Link EOS R100 to your smartphone using the Camera Connect app to download your photos and videos automatically. Sharing your memories with friends and family, storing on the cloud and printing your photos has never been easier.

Canon Eos R100 Mirrorless Cameras

AUTOMATIC IMAGE TRANSFER

Set up the automatic image transfer for seamless connectivity: your photos and videos will appear in your phone’s library shortly after you take them.

Canon Eos R100 Mirrorless Cameras

GRAB AND GO

Compact and lightweight, EOS R100 is small enough to be taken wherever you want to go and always have at the ready.

FUNCTIONS

- Shutter Button : Positioned perfectly so you don’t miss a shot
- Built-in flash : Lights up the dark
- A+ / Hybrid Auto Mode : To point and shoot for easy still and video capture
- Special scene modes : For picture perfect moments in all situations
- Hot Shoe : To connect accessories such as a microphone or flash
- Record button : To instantly start recording when the moment happens
- Lens zoom ring : Get more in the shot or get closer to the action
- Tripod mount : Set up your camera nice and steady to get yourself in the group shot
- High resolution viewfinder : See exactly what you’re shooting without distractions
- Simple controls : Easily make the adjustments you want
- RF lens mount : Use different lenses to get the look you want

INFORMATION

IMAGE PROCESSOR

Type : DIGIC 8

WEIGHT (BODY ONLY)

Approx. 356 g

OPERATING ENVIRONMENT

0 – 40 °C, 85% or less humidity

DIMENSIONS

- Width : 116.3mm
- Height : 88.1 mm
- Depth : 58.7 mm

Canon Eos R100 Mirrorless Cameras

STORAGE

Type : SD, SDHC, SDXC (UHS-I compatible)

SOFTWARE

- Image Processing  : Digital Photo Professional
- Other : Picture Style Editor, EOS Utility, Image Transfer Utility, Camera Connect app available on iOS and Android devices

BODY MATERIALS


Mainly polycarbonate resin with glass fibre that incorporates an aliminium alloy

POWER SOURCE

- Batteries : 1 x Rechargeable Li-ion Battery LP-E17
- Battery Life : Viewfinder: Approx. 320 shots (Based on CIPA standards), Live view: Approx 400 shots (Based on CIPA standards), 4K Movie Recording: Approx. 110 mins, Full HD Movie Recording: Approx 160 mins, Playback time when playing back a slideshow of still images: Approx. 190 mins (With a new, fully charged LP-E17)
- Battery Indicator : 4 levels
- Power Saving : Display off (15, 30 sec or 1, 3, 5, 10, 30 mins), Auto Power Down (30 sec or 1, 3, 5, 10 mins, Disable), Viewfinder off (1, 3 min, disable), Power saving mode
- Power Supply & Battery Chargers : Battery charger LC-E17E, AC adapter AC-E6N, DC Coupler DR-E1828

Canon Eos R100 Mirrorless Cameras

SHUTTER

- Type : Electronically controlled focal-place shutter (Rolling shutter, using the image sensor8). Electronic first curtain, mechanical 2nd curtain
- Speed : 30 - 1/4000 sec (1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

LCD MONITOR

- Type : 7.5 cm (3.0”) LCD (TFT). 3:2 aspect ratio. Approx. 1,040,000 dots.
- Coverage : Approx 100%
- Brightness Adjustment : Adjustable to one of seven levels
- Display Options : Customisable and toggle via [INFO] Button (1) Liveview image with exposure info (2) Liveview image with basic info (3) Liveview image with full info
- Customisable settings : Grid overlay (x3 formats), Histogram (Brightness/ RGB)

DIRECT PRINT

- Canon Printers : Canon Compact Photo Printers and PIXMA Printers supporting PictBridge
- PictBridge : PictBridge-compatible (wireless LAN) printer compatible

WHITE BALANCE

- Type : Auto white balance with the imaging sensor
- Settings : AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting White balance compensation:
1. Blue/Amber +/-9
2. Magenta/Green +/-9
- Shift : Blue/Amber +/-9 levels, Magenta/ Green +/-9 levels11
- Custom White Balance : Yes, select an image on a card for use as a custom white balance
- WB Bracketing : +/- 3 levels, single level increments

 SUPPORTED OPERATING SYSTEM

- PC : See support pages for up-to-date information
- Macintosh : See support pages for up-to-date information

 EOS MOVIE

- Movie Type : MP4: MPEG-4 AVC/H.264, Audio: AAC
- Movie Size : 4K UHD- 3840 x 2160, 23.98 / 25 fps, IPB (Standard), AAC
Full HD - 1920 x 1080, 59.94 / 50 / 29.97 / 25 / 23.98 fps, IPB (Standard), AAC
HD- 1280 x 720, 59.94 / 50 fps, IPB (Standard), AAC
High Frame Rate movies- 1280 x 720, 119.88 / 100 fps, IPB (Standard), No audio
Time-lapse movied- 3840 x 2160 / 1920 x 1080, 29.97 / 25 fps, All-I, No audio
Miniature effect movies- 1920 x 1080, 29.97 / 25 / 23.98 fps, IPB (Standard), No audio
- Movie Length : Max duration 29min 59sec,Max file size:, SDXC: exFAT: Unlimited, SDHC: FAT32: 4 GB, SD: FAT16 / FAT12: 2GB

INTERFACE

- Computer : Hi-Speed USB (USB 2.0), USB Type-C terminal
- Other : Wireless LAN (IEEE802.11b/g/n), (2.4 GHz only, 1-11 ch), Bluetooth® (Specification version 4.2, Bluetooth low energy technology), HDMI (Micro - Type-D connector), HDR output to compatible TV supported

LENS

- Lens Mount : RF
- Compatibility : RF, RF-S (EF and EF-S lenses compatible via mount adapter)
- Focal Length : Equivalent to 1.6x the 35mm focal length of the lens
- Image Stabilisation : Optical stabilisation with lenses featuring IS, Movie Digital IS: Off / Enabled / Enhanced2

Canon Eos R100 Mirrorless Cameras

IMAGE SENSOR

- Type : 22.3 x 14.9mm CMOS
- Effective Pixels : Approx. 24.1 megapixels
- Total Pixels : Approx 25.8 megapixels
- Aspect Ratio : 3:2
- Low-Pass Filter : None
- Sensor Cleaning : None
- Colour Filter Type : RGB Primary Colour

EXPAND YOUR VISION

Pair EOS R100 with a wide range of high-quality lenses and enjoy the flexibility to get the look you want for each occasion. Go wider to capture scenic views or get closer to the action: the opportunities are endless.

EXPOSURE CONTROL

- Metering Modes  : Real-time metering from the image sensor
(1) Evaluative metering (384 zones, 24x16)
(2) Partial metering at center (approx. 5.8% of Live View Screen)- stills only
(3) Center weighted average metering
(4) Spot metering (approx. 2.9% of Live View Screen)
Partial and spot metering not available in movie
- Metering Brightness Range : Still image: EV -2 - 20, Movie: EV 0 - 20
- AE Lock : Auto: In One-shot AF mode, exposure is locked as soon as subjects are in focus, Manual: By AE lock Button in creative zone or movie modes
- Exposure Compensation : +/-3 EV in 1/3 stop increments
- AEB : 3 shots, +/- 2 EV, 1/3-stop increments
- ISO Sensitivity : Normal ISO speed: ISO 100-12800 in 1/3 or 1-stop increments, Expanded ISO speed: H (equivalent to ISO 25600)

FOCUSING

- Type : Dual Pixel CMOS AF System , Contrast detection method is used during 4K Movie Servo AF
- Maximum AF Zones (Stills / Movies) : 143 / 1173
- AF Working Range : EV -4 - 18 / EV -2 - 184
- AF Modes : One-Shot AF and Servo AF
- AF Point Selection : Face+ Tracking, Spot AF, 1-point AF, Zone AF, Stills: Maximum 3975 positions, Video: Maximum 3375 positions
Maximum 143/99 points available for automatic selection in Face+Tracking mode. May vary depending on settings.
Max 25 frames in Zone AF [1]
Freely position 1 AF point/ 1 AF Zone via manual selection (area available lens dependent)
- AF Lock : Locked when shutter button is pressed half way or customisable AE Lock Button
- AF Assist Beam : via LED assist beam
- Manual Focus : With RF lenses: Via dedicated AF/MF switch on lens where available, or in menu, With EF & EF-S lenses - Select via AF/MF switch on lens, MF Peaking available, AF+MF available (Manual focus adjustment after One-Shot AF), Magnify image available during MF (3-10x, in 0.1x increment5)
- Focus Bracketing : Not provided

VIEWFINDER

- Type : 0.39-type OLED Electronic Viewfinder, Approx. 2,360,000 dots
- EVF Refresh Rate : 59.94 fps
- Dot Count: Approx. 2,360,000 dots
- Coverage (Vertical/Horizontal) : Approx 100%
- Magnification : Approx. 0.95x
- Eyepoint : Approx 22mm15
- Dioptre Correction : Approx. -3.0 to +1.0 m-1 (dpt)
- VBrightness : Manually adjustable 1-5
- Exposure Simulation : Provided
- Sensor : Provided
- Viewfinder Information : Viewfinder sensor: provided, Vertical display for Stills only. Exposure Simulation
, Customisable and toggle via [INFO] Button (1) Liveview image with exposure info (2) Liveview image with basic info (3) Liveview image with full info, Customisable settings: Grid overlay (x3 formats), Histogram (Brightness/ RGB) Viewfinder Brightness: Manually adjustable 1-5
- Depth of Field Preview : Yes

FLASH

- Built-in Flash GN (ISO 100, meters) : 6
- Built-in Flash Coverage : Approx. 18mm angle of view
- Built-in Flash Recycle Time: Approx. 5 seconds
- Modes : Auto, Fire, Off, E-TTL II flash metering (Evaluative (Face Priority) / Evaluative / Average)
- Red-Eye Reduction : Yes
- X-Sync : 1/250 sec
- Flash Exposure Compensation : +/- 2 EV in 1/3 increments
- Flash Exposure Bracketing : No
- Flash Exposure Lock: Yes
- Second Curtain Synchronisation : Yes
- HotShoe / PC Terminal : 5-pin shoe only
- External Flash Compatibility : E-TTL II with EX and EL series Speedlites, wireless multi-flash support
- External Flash Control : Via camera setting/ flash setting menu

SHOOTING

- Modes : Stills: Scene Intelligent Auto, Hybrid Auto, SCN Special Scene Modes (x10)
-Portrait -Landscape -Sports -Panning -Close-up -Food -Night Portrait -Handheld Night Scene -HDR Backlight Control -Silent shutter mode
Creative Filters :  -Grainy B/W -Soft focus -Fish-eye effect -Water painting effect -Toy camera effect
 -Miniature effect -HDR art standard -HDR art vivid -HDR art bold -HDR art embossed
P (Program AE), Tv (Shutter-priority AE), Av (Aperture-priority AE), M (Manual exposure, bulb exposure)
- Movies: Movie auto exposure, Movie manual exposure
- Picture Styles : Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
- Colour Space : sRGB and Adobe RGB
- Image Processing : Highlight Tone Priority (standard and enhanced), Auto Lighting Optimizer (4 settings)
Long exposure noise reduction, High ISO speed noise reduction (4 settings + Multi Shot NR), Lens peripheral illumination correction, Chromatic aberration correction, Diffraction correction, Digital Lens Optimizer (DLO)
- Creative Assist: Presets, Background Blur (5 settings), Brightness (19 levels), Contrast (9 levels), Saturation (9 levels), Color Tone 1 & 2 (19 levels), Monochrome (Off/Black and white/Sepia/Blue/Purple/Green)
- Drive Modes : Single Shooting, Continous Shooting, Self-timer: 10 sec. / remote control , Self-timer: 2 sec. / remote control
Self-timer: continuous shooting
- Continuous Shooting : One shot AF: Max. Approx. 6.5 shots/sec with Electronic 1st-curtain shutter, speed maintained for 97 JPEG(All sizes) or 6 RAW, 17 C-RAW, or RAW + L JPEG: 6, C-RAW + L JPEG: 13 images.23
Servo AF: Max. Approx. 3.5 shots/sec.
- Interval Timer : No

FILE TYPE

- Still Image Type : JPEG: 8 bits, Standard / Fine: (Exif 2.31 compliant) / Design rule for Camera File system (2.0)
RAW: RAW, C-CRAW (CR3 14 bits)
Digital Print Order Format [DPOF] Version 1.1 compliant24
- RAW+JPEG Simultaneous Recording : Yes, RAW + various JPEG compression possible
- Image Size RAW / C-RAW: 24.0 megapixels (6000 x 4000)
JPEG 3:2: L 24 megapixels (6000 x 4000), M 10.6 megapixels (3984 x 2656), S1 5.9 megapixels (2976 x 1984). S2 3.8 megapixels (2400 x 1600)
JPEG 4:3: L 21.3 megapixels (5328 x 4000), M 9.5 megapixels (3552 x 2664), S1 5.3 megapixels (2656 x 1992), S2 3.4 megapixels (2112 x 1600)
JPEG 16:9: L 20.2 megapixels (6000 x 3368), M 8.9 megapixels (3984 x 2240), S1 5.0 megapixels (2976 x 1680), S2 3.2 megapixels (2400 x 1344)
JPEG 1:1: L 16.0 megapixels (4000 x 4000), M 7.1 megapixels (2656 x 2656), S1 3.9 megapixels (1984 x 1984), S2 2.6 megapixels (1600 x 1600)25
- Folders : New folders can be created and selected
- File Numbering : (1) Continuous, Auto Reset (2) Manual Reset

ACCESSORIES

- Viewfinder : Built-in, external viewfinder not compatible
- Wireless File Transmitter : Not compatible
- Cases / Straps : Protecting cloth PC-E1 / PC-E2, Strap provided
- Lenses : RF and RF-S lenses, EF and EF-S lenses compatible via adapter, EF-M lenses not compatible
- Flash : EL series Speedlites: EL-1 / EL-100, EX series Speedlites / Macrolite, Speedlite Transmitter ST-E3-RT (Ver. 2) / ST-E3-RT / ST-E2, Off-Camera shoe cord OC-E3
- Remote Controller / Switch Bluetooth Remote BR-E1, Tripod grip HG-100TBR. Remote Switch RS-60E331
- Other : Interface cable IFC-100U, Interface cable IFC-400U, Mount Adapter EF-EOS R

OTHER FEATURES

- Custom Functions :  ISO Expansion, Safety shift, 7 customisable buttons -Shutter button -Exposure compensation button -AE lock button -ISO speed setting button -Flash button -Movie shooting button -Drive mode button, Release shutter without lens, Retract lens on power off
- etadata Tag : User copyright information (Author's Name, Copyright Details), Image rating (0-5 stars)
- LCD Panel / Illumination : No
- Water/Dust Resistance : No
- Voice Memo : No
- Intelligent Orientation Sensor : No
- Playback Zoom : 1.5x - 10x in 15 levels
- Display Formats : (1) Single image with information (toggle options) (2) Single image (3) Index display (4/9/36/100 images)
- SlideShow : Playback time: 1/2/3/5/10/20 seconds, Repeat: Enable / Disable, Transition Effects: Off, Slide in 1-2, Fade 1-3
Background music: Off / On
- Histogram : Brightness/ RGB
- Highlight Alert : Yes
- Image Erase Protection : Erase: Single image, Selected images, Selected range, folder, All images on card , All found images, Protection: Selected images, Selected range, All images. Folder
- Menu Categories : (1) Shooting menu (2) Playback menu (3)Communication features menu (4) Function settings menu (5) Display level settings menu (6) My Menu
- Menu Languages : 29 Languages, English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Vietnamese, Indonesian, Hindi, Japanese
- Firmware Update : Firmware update possible by the user via SD card, EOS Utility or Camera Connect app
