A 1.0-inch Type CMOS 4K pro camcorder. With Dual Pixel CMOS AF, 15x optical zoom plus 5-axis stabilisation, 3G-SDI, HDMI out and UVC, it’s a versatile workhorse.

Canon Xa75  Video Cameras & Camcorders

FEATURES

Canon Xa75  Video Cameras & Camcorders

COMPACT PROFESSIONAL 4K UHD CAMCORDER

Capture stunning 4K UHD and superior Full HD images thanks to a 1.0-inch Type CMOS 4K sensor and DIGIC DV6 image processor. Over Sampling HD processing delivers Full HD images from the sensor.

Canon Xa75  Video Cameras & Camcorders

4K 15X OPTICAL ZOOM LENS

The Canon lens covers a 25.5 – 382mm (35mm equivalent) range. A digital zoom boosts to 300x with 5-axis image stabilisation.

Canon Xa75  Video Cameras & Camcorders

FAST, PRECISE FOCUSING WITH FACE DETECTION

Adjustable focusing speeds and advanced Dual Pixel CMOS AF give fast and precise focusing. Use the 3.5-inch LCD display to set focus by touching the AF point required. Face Detection AF and Face Tracking are available while Manual Focus is set via the focus/zoom ring.

Canon Xa75  Video Cameras & Camcorders

XF-AVC AND MP4 FOR FLEXIBLE RECORDING

Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 25P, plus Full HD 45Mbps at 50P/50i/25P. For smaller files, record MP4 4K 150Mbps at 25P and Full HD 35Mbps or 17Mbps at 50P/25P

Canon Xa75  Video Cameras & Camcorders

MULTIPLE SHOOTING FUNCTIONS

Output options include 3G-SDI, simultaneous backup and relay recording via dual SD card and Infrared mode. For specialist capture, record Slow Motion in Full HD 0.5x or Fast Motion in 4K/Full HD up to 1200x. Colour match with other Canon cameras via the custom picture menu.

Canon Xa75  Video Cameras & Camcorders

LIVESTREAM AND MORE

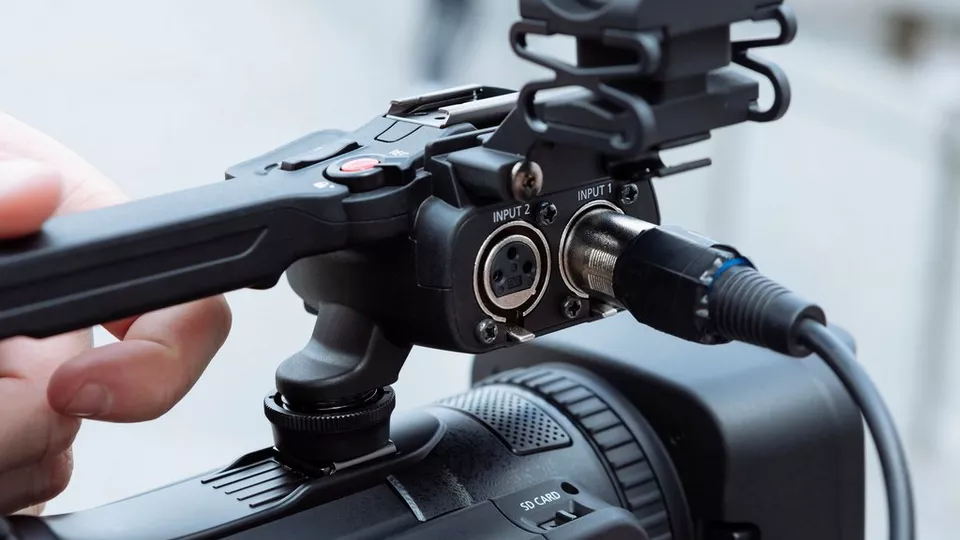

Stream HD footage via UVC1 over a computer or add a date and time stamp with OSD recording. Two XLR terminals on a detachable handle plus 4-channel linear PCM bring pro audio options.

GET YOUR SHOT, TELL YOUR STORY

Shoot high quality 4K UHD video with the compact XA75. As well as outstanding Over Sampling HD processing, Dual Pixel CMOS AF, a Canon 15x optical zoom lens and HD livestreaming in UVC1 via USB-C over a computer, capture high quality footage in either XF-AVC or MP4 formats.

Canon Xa75  Video Cameras & Camcorders

INFORMATION

POWER SOURCE

- Power Supply (Battery) : Canon Battery Pack BP-820 (supplied), BP-828 (optional)
- Power Consumption : MP4, 150Mbps/XF-AVC, 160Mbps, 25.00P: 5.2W
- Recording Time : MP4, 150Mbps/XF-AVC, 160Mbps, 25.00P: Max 140 mins, typical 75 mins (BP-820)

IMAGE PROCESSOR

- Type : DIGIC DV 6
- Colour Sampling : YCC 4:2:0 8bit

PHYSICAL SPECIFICATIONS

- Dimensions : Approx. 110 x 91 x 214 mm (main body only), Approx. 140 x 216 x 265 mm (Including lens hood, BP-820, mic holder unit, and handle unit)
- Weight (Body Only) : 990g
= Weight (Accessories) : 1465g
- Operating Temperature Range : 0ºC to +40ºC, 85% relative humidity

STREAMING, WI-FI, & GPS SPECIFICATIONS

- Wi-Fi : No
- GPS Information (Optional Accessory) : Location (Latitude/Longitude/Altitude), Coordinated Universal Time (UTC), Satellite reception. (requires the optional GPS Receiver GP-E2)

EVF

- Size : 0.36-inch (0.92 cm on the diagonal), Approx. 1,770,000 dots (1024 x RGB x 576)
- Correction Lens : +2.0 to -5.5 dioptre

AUDIO

- Recording Format : MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch)
- Audio Control : Manual/Auto, Independent 2ch Line/Mic/Mic+48V input;, Independent level control per channel (-∞ to +18 dB); Independent audio limiters (2 ch); Input mic trimming
- Reference Tone : 1KHz, -12dB / -18dB / -20dB / Off
- Microphone Attenuation : On/Off (20dB)
- Microphone Level Meter : Yes

WHITE BALANCE

- Auto : Yes
- Preset : Daylight (Approx. 5,600K), Tungsten (Approx. 3,200K)
- Manual Setting : Colour Temperature range: 2,000–15,000K
Default value for Set 1 and Set 2: 5,600K

Canon Xa75  Video Cameras & Camcorders

SYSTEM

- Display Type : Capacitive LCD touch panel
- Size : 3.5-inch (8.8 cm) on the diagonal, Approx. 2,760,000 dots (1280 x RGB x 720)
- Wave Form Monitor : No
- Focus Assist : Peaking / Magnify
- Peaking : Selectable Peaking Colour: Red / Blue / Yellow
- Zebra : 70% or 100% reference level
- Markers : Grid (white/grey), Level (white/grey), 4:3 (white/grey)

EXPOSURE

- Exposure Metering : Center-weighted average metering, AUTO, P, Av, Tv, Portrait, Sports, Low Light and IR modes, Segment evaluative metering, Night Scene, Snow, Beach, Sunset, Spotlight modes, No metering in Fireworks mode: Exposure constant
- Exposure Compensation : Highlight AE, Normal, Exposure lock, Auto backlight compensation.
- Exposure Lock : Yes.
- Auto ISO / Auto Gain Control Setting : Auto / Manual
- Auto Gain Control Limit : 0 - 38dB (1dB increments), Wide DR Mode: 9 -38dB (1dB increments)

 SPECIFICATIONS

- 4K UHD / 25P : MP4 up to 150Mbps and XF-AVC up to 160Mbps
- 15x optical zoom : Wide-angle 25.5 – 382mm 4K zoom (35mm equivalent)
- Over Sampling HD Processing : Uses the 4K UHD sensor to deliver superior Full HD images
- Optical IS : Advanced optical and dynamic image stabilisation over 5-axis
- Infrared : Capture high-quality video in conditions with little to no ambient light with IR mode
- Touch Screen : Easy focus point and camera control via 3.5-inch touch screen
-  4-channel audio : Linear PCM and 2 x XLR terminals plus built-in mic
- Double slot : Dual slots for simultaneous or relay recording via SD card
- USB-C : Video livestream output via Mac or PC1 or Canon’s GP-E2 GPS receiver

MISCELLANEOUS

- Tally Lamp : Yes, in detachable Handle Unit
- Colour Bars (PAL) : Yes. SMPTE, ARIB or EBU, with 1KHz Tone
- Accessory Shoe : Yes (cold shoe)
- Assignable Buttons : 5 assignable Buttons
- Custom Dial : Iris/Shutter/Gain, AGC Limit, Exposure Compensation, Off
- Video Output (UVC) : Recording system: Motion JPEG
Resolutions: 1920×1080 (when main resolution is not 1280×720) 1280×720 (when main resolution is 1280×720)
Frame rates: 25 fps (best effort)

Canon Xa75  Video Cameras & Camcorders

SHUTTER SPEED

- Control Modes : Auto, P, Tv, Manual
- Shutter Speed (PAL) : 1/6 - 1/2000 sec (1/2 - 1/500 sec in Low Light mode) Shutter Speed range available dependent on shooting mode
- Slow Shutter (SLS) : 50.00P: Auto slow shutter On: 1/25 to 1/500 sec.
Auto slow shutter Off: 1/50 to 1/500 sec.
25.00P: Auto slow shutter On: 1/12.5* to 1/500 sec. (*Display is 1/12) Auto slow shutter Off: 1/25 to 1/500 sec.
- Clear Scan (PAL) : No

INPUTS / OUTPUTS

- Audio Input : XLR 3-pin jack (x2) with 48V phantom power, Line and Mic options on detachable handle, 3.5mm microphone input jack (Supply Voltage 2.4V DC) Built-in Mic
- Headphone Output : 3.5mm stereo mini jack
- HDMI Output : HDMITM mini connector. Timecode can be superimposed onto HDMI output
- USB : Type-C Hi-Speed USB (USB 2.0) equivalent. Point-to-point class and UVC supported.
- SDI Output : 3G-SDI
- Time Code : Rec Run / Free Run
- Genlock : No
- LAN : No
- AV Terminal : No
- DC Input : USB-C
- Remote Control Terminal : 2.5mm mini jack

IMAGE SENSOR

- Sensor : 1 inch-type CMOS Sensor
- Filter : RGB Primary Colour Filter
- Total Pixels : Approx.13.4MP
- Effective Pixels per Sensor : Approx. 8.29 MP (3840 x 2160)
- Subject Illumination Range : Approx. 0.1 lx to 100,000 lx
- Minimum Illumination (PAL) : Approx. 0.1 lx: Low Light (shooting mode), shutter speed 1/2 sec.
Approx. 1.4 lx: In P (Program AE) mode, 50.00P, shutter speed 1/25 sec. auto slow shutter On

Canon Xa75  Video Cameras & Camcorders

SHOOTING MODES

- Program AE : AUTO mode, M (Manual) mode
P (program AE), Tv (shutter-priority AE), Av (aperture-priority AE), M (manual exposure), SCN (Portrait, Sports, Night Scene, Snow, Beach, Sunset, Low Light, Spotlight, Fireworks) IR mode
- Custom Picture Menu : C1: Normal (BT.709 Normal / BT.709)
C2: Wide DR (BT.709 Wide DR / BT.709)
C3: LOG3 (Canon Log 3 / BT.709)
C4: EOS Std. (EOS Standard / BT.709)
C5 to C6: USER05 to USER06 (same as C1)
- Look Settings : Standard, Neutral, Wide DR, Monochrome, Standard (Adjustment: Sharpness, Contrast, Colour Depth)
- Infrared Shooting Mode : Yes
- Built-in IR Lamp : Yes, in detachable Handle Unit. Wavelength: 850nm (near-Infrared)

 ACCESSORIES

- Supplied : Lens hood with barrier, Mic holder unit, Handle Unit, Battery Pack BP-820, USB Power Adapter PD-E1, AC Cable
- Optionals : Canon Battery Pack BP-820/BP-828, Canon Battery Charger CG-800E/CG-800, Canon HDMI cable HTC-100/HTC-100S, Canon Shoulder Strap SS-600/SS-650, Wrist Strap WS-20, Canon PROTECT Filter 58mm, Canon ND4-L Filter 58mm, Canon ND8-L Filter 58mm, Canon GPS Receiver GP-E2, Canon Remote Controller RC-V100, Canon Battery Video Light VL-10Li/VL-10LiII, Canon Battery Pack BP-900 series (for VL-10Li/VL-10LiII), Canon Compact Power Adapter CA-910/920/930 (for charging BP-900 series), Canon Interface Cable IFC-100U / IFC-400U / IFC-150AB / IFC-40AB

RECORDING

- Video Storage Media : SD/SDHC/SDXC card (2 card slots)
- Type : U3 Class recommended for all recording conditions * UHS-II not supported.
- Recording Time : MP4: 150Mbps: 55 mins / 35Mbps: 240 mins / 17Mbps: 495 mins
XF-AVC:160Mbps: 50 mins/45 Mbps: 185 mins
- Recording File System : FAT32/exFAT
- Internal Recording Format (PAL) : XF-AVC: 3840 x 2160 / 25.00P (160 Mbps), 1920 x 1080 / 50.00P, 50.00i, 25.00P (45 Mbps)
MP4: 3840 x 2160 / 25.00P(150 Mbps), 1920 x 1080 / 50.00P, 25.00P (35, 17 Mbps)
- External Recording Output : HDMI output (When Shooting):
UHD recording mode: 1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit
Full HD recording mode: 1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit
SDI output (When Shooting): UHD recording mode: 1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit
Full HD recording mode: 1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit
- Slow/Fast Motion (PAL) : 3840 x 2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600, x1200, 1920 x 1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200, 1920 x 1080 / 25.00P: x0.5
- Pre-Record Function : Yes. 3 seconds
- Still Photos : JPEG up to 3840x2160 (Still image resolution is dependent on the video resolution)
- Photo Storage Media : SD Card

LENS

- Zoom Ratio " 15 x optical
- Focal Length (35mm Equivalent) : Approx. 25.5 - 382.5mm Standard IS/IS Off
- Minimum Focus Distance : 1 cm at wide end, 60 cm across entire zooming range
- Max. Aperture : f/2.8 - 4.5
- Aperture Blades : 9 blades
- Filter Diameter : 58mm
- Image Stabilization System : Optical system (lens shift) + electronic stabilization Dynamic, Standard, Powered IS, Off
- ND Filter : 3 densities: ND 1/4, ND 1/16, and ND 1/64, turret switched, motor-driven.
- Zoom Control  : Zoom rockers on body and handle; Touch Screen or Remote Controller Selectable manual zoom/focus ring on lens; Selectable High Speed and Soft Zoom modes available.
- Zoom Speed : Variable (body rocker only) or Constant speed (body and handle rocker; Fast/Normal/Slow, 16 speed level settings in each)
- Focus Control : MANUAL: Lens ring and touchscreen point selection (Magnify and Peaking assist functions), Focus Preset.
AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Touch and Track, Face Only AF. Face Frame displays tracked subject
- Focus System : Dual Pixel CMOS AF, detection range 80% vertical/80% horizontal of field of view Contrast AF.
- AF Modes : Continuous, AF-Boosted MF, Face Detection and Tracking, Face Only AF.
- Manual Focus Assist : Dual Pixel Focus Guide, Peaking, Magnification
- Iris Control : Touchscreen, Auto
- Digital Zoom/Teleconverter : 20x Digital zoom (300x with optical zoom) and 40x digital zoom (600x with optical zoom) are available. Digital zoom not available in AUTO mode.
2x Digital Teleconverter (Not available when using Digital Zoom)
