HEAVEN COMPACT HOOD

The Heaven Compact is one of Faber’s new ceiling-mounted hoods. At 900mm wide, it features Faber’s new ultra-slim motor. Due to this clever design, the ceiling hood can be installed in tight spaces. It can even be fitted in-between most ceiling joints.

Faber Hoods Heaven Compact Hood

The motor size does not compromise extraction power. In fact, the Heaven Compact has a maximum extraction rate of 650 m³h. Other advanced functions of this ceiling hood include perimeter aspiration technology. Not only does this accelerate air flow, but is also increases extraction efficiency.

This hood can be used on either recirculating or ducted mode with an adjustable air outlet. Additionally, the ceiling hood comes with an easy-to-use remote control and modern LED lights to illuminate the cooking space below.The Heaven Compact is available in stainless steel with a white glass central panel. This design is perfect for a contemporary kitchen design.

FEATURES

LED LIGHT

The LED hood light lights the hob area below with only 3 Watts of energy consumption

24 HOURS

This function allows the hood to be switched on for 24 hours a day for continuous air renewal with an imperceptible noise level

INTENSIVE SPEED

The Intensive Speed function activates maximum extraction for 6 minutes to meet special cooking needs and clean odours quickly

FILTER SATURATION ALARM

The filter saturation alarm warns you when it is time to clean the anti-grease filter or replace the charcoal filter

DELAYED SWITCH OFF

The delayed switch off function allows the motor to automatically switch off 30 minutes after cooking has finished to complet elimination of residual odours

BRUSHLESS

The brushless motor guarantees considerable energy saving coupled with high extraction efficiency. It is the most silent motor on the market and its performance remains stable in any usage condition

NEW REMOTE CONTROL

With the new remote control design you can switch the hood on and off, adjust extraction power and light intensity and set the timer too. The remote control has a magnet which lets you attach it to the hood when not needed.

PERIMETER EXTRACTION

The perimeter extraction panel reduces the perceived sound by 25% (which is equal to a reduction of 3dB). This method of extraction guarantees optimised effectiveness by exploiting the principle of the Venturi effect: air accelerates as it passes through the constricted extraction space of the panel and decreases immediately inside the hood and is then easily expelled eithout the need for any particular pressure levels

INFORMATION

BRAND

Faber Hoods

PRODUCT TYPE

Heaven Compact

PRODUCTION

Made in United Kingdom

CODE

350.0504.298

ENERGY CLASS

A

CONTROLS

Electronic LED

Faber Hoods Heaven Compact Hood

WIDTH

900 mm

ENERGY CLASS

C

LIGHTING

2 LED Lights

FINISH

Stainless Steel & White Glass

GREASE FILTER

Cassettes Dishwasher Safe

MODEL

Heaven Compact EV8*A90

    Faber Hoods Heaven Compact Hood

    PERFORMANCE

    SPEED123INTENSIVE
    Air Capacity (m³h)290450570650
    Pressure (PA)330450500520
    Power (Watt)190165210250
    Noise Level (db)49586365

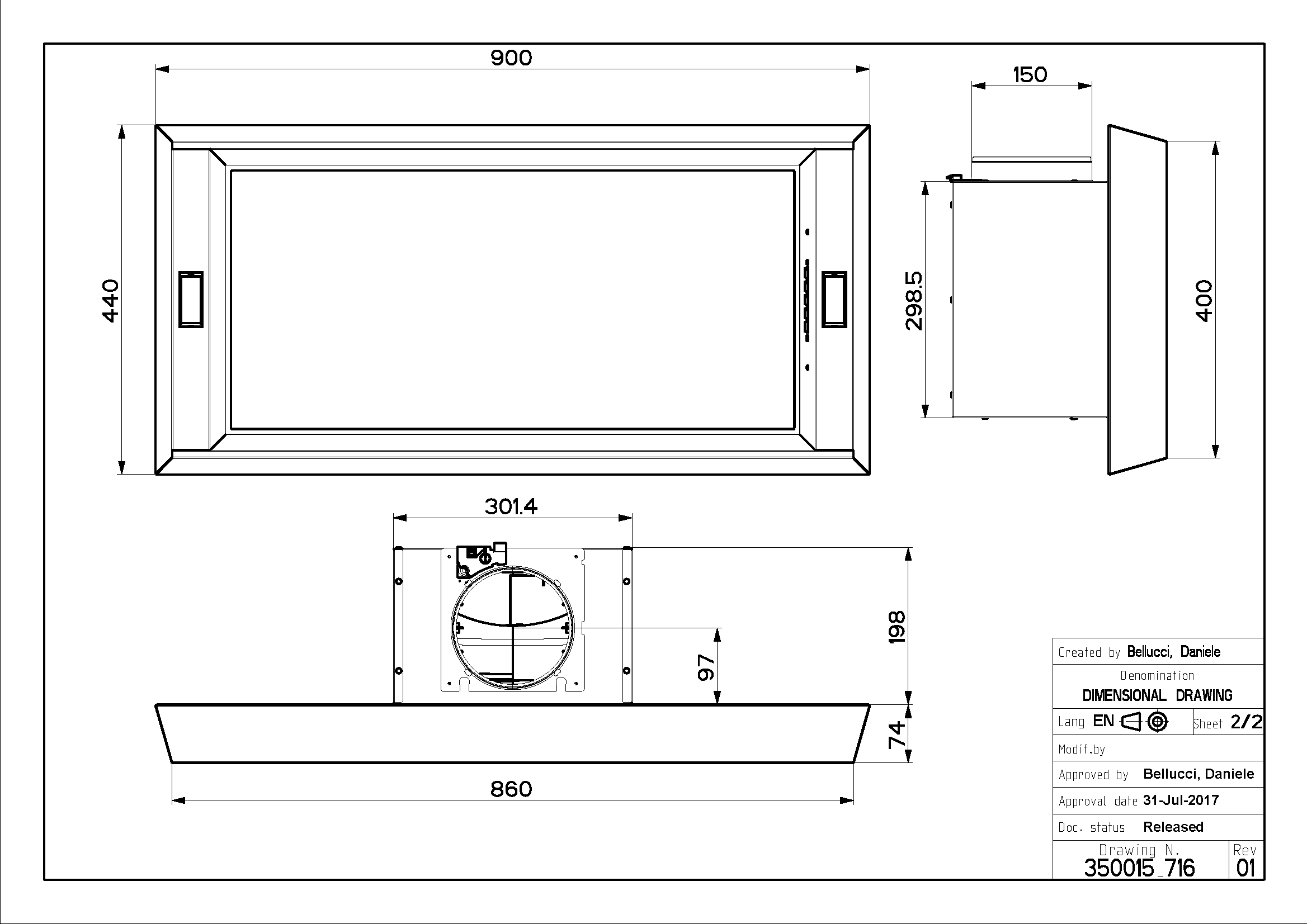

    TECHNICAL DRAWINGS
