Piazzetta P120 T Pellet Stove
P120 T PELLET STOVE
P120 T PELLET STOVE

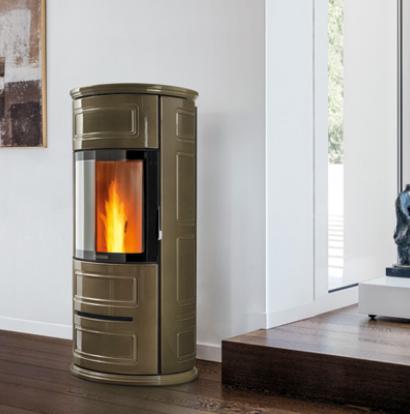

Pellet Stove model P120 T with Steel cladding, for Wall - Corner installation. Energy Efficiency Class A+. Airtight firebox. Fitted with the Natural Mode function. Wi-Fi for App management supplied as a standard feature.
Pellet stove with steel cladding and Majolica top. Available in Bianco, Rubino, Nero. Simplified controls with digital panel. Available with Natural Mode function for natural convection heating. Exclusive Multifuoco® System, ductable, forced ventilation system for completely uniform heating. Heating efficiency and rapidity; silent operation and comfort.
FEATURES
THE EFFICIENCY OF PELLETS
Performance and savings, the optimum solution for bringing warmth to the home.
AIRTIGHT FIREBOXES
Appliances with airtight fireboxes are designed to maintain better quality air in the room and to ensure high performance and efficiency. Drawing combustion air from the outside avoids using up the oxygen in the room where the appliance is installed. They are suitable for all types of homes and are the perfect solution for passive houses that cannot have a traditional type of external air inlet.
MY PIAZZETTA APP
The My Piazzetta app can be used to monitor pellet- and wood-based operation and programme the switching on and off sequences remotely, using the standard Wi-Fi device. The My Piazzetta app can be comfortably used also from home, via Bluetooth.
NATURAL MODE ALSO FOR NATURAL CONVECTION HEATING
With the Natural Mode function you can switch from forced ventilation to natural convection heating, which triggers natural air movement by exploiting the temperature differences in the room. In this way, the heat is distributed more gradually and in an ultra silent mode. With Natural Mode, you have the confidence of being able to create the right atmosphere at home to really relax.
INFORMATION
ENERGY EFFICIENCY CLASS
A+
PRODUCT TYPE
Stove
PRODUCTION
Made In Italy
HEATABLE VOLUME
145 - 245 m³
PELLET CONSUMPTION
0.7 - 1.9 kg/h
RATED OUTPUT
3.4 - 8.5 kW
EFFICIENCY
89.4 - 90.6 %
PRODUCT MEASURES
- Lenght : 55 cm
- Pitch : 54,5 cm
- Height : 112.2 cm
COLORS
- Grey
- Red
- Black
TANK CAPACITY
18 kg
PRODUCT WEIGHT
110 kg
FLUE OUTLET
8 cm
MODEL
P120 T
OPTIONAL
-Side ventilation : Side hot air vents
-Upper Coaxial Flue Outlet Kit
-Umidificatore : Humidifier also for the use of perfumed essences
-Left side flue
-Remote control LCD : Remote control with touch LCD and Multicomfort function
DOWNLOADS
↓ Product sheets
↓ Technical drawings
↓ EU Product sheet
↓ Declaration of performance
↓ Energy class label
TECHNICAL DRAWING
- A : 8 cm
- B : 7.5 cm
- C : 6 cm
MAIN FEATURES
-Air Combustion System : Combustion air system
-Natural mode : For heating also through natural convection, by switching off the fan
-Programming : Timer-controlled thermostat with multiple programming levels
-Vacuum : Ash vacuum cleaner for stove cleaning
-Digital display
-Fuel level : Level indicator for pellets in the hopper
-Energy saving : Function that can be activated to optimise consumption, for maximum saving
-Wi-fi, App, Bluetooth : My Piazzetta app
-Hermetic : Airtight firebox also for passive houses. Combustion air from the outside
-Majolica and steel : Steel cladding, Majolica top
-Pellet quality system : Pellet Quality System to optimise combustion
-Multifuoco ducting 8M : Multifuoco® ductable up to a distance of 8 metres
GENERAL FEATURES
-Natural Mode : yes -Power levels : 5 -Cladding / Top : steel / majolica and steel -Front ventilation : fixed vent -Humidifier : optional -Remote control EASY with LCD display : optional -Ambient probe for temperature control : as standard feature -Control panel with digital controls : yes -Module WiFi - Bluetooth for MyPiazzetta App : optional -Timer-controlled thermostat with programming : 6 daily time frames -Eco / Energy Saving function: yes / yes -Glass cleaning : continuous air flow -Cyclic brazier cleaning : yes -Ash vacuum cleaner : as standard feature -Installation : wall -Standard flue outlet position : LH rear -Optional flue outlet : top - top balanced flue - LH side -One-piece firebox : airtight in steel -Firebox : cast iron -Door / Handle : cast iron with self-cleaning ceramic glass resistant up to 750°C / steel with Nero finish -Air Combustion System Function : yes -Pellet Quality System Function : yes -Side ventilation -Pellet level indicator : yes
