Gruppo Piazzetta, S.p.a.

Piazzetta P945 C Pellet Stove

P945 C PELLET STOVE

Piazzetta P945 C Pellet Stove

P945 C PELLET STOVE

Pellet Stove model P945 C with Majolica cladding, for Wall/Flush-with-the-Corner installation, Energy class A+. It is fitted with the Multifuoco® System.

Compact pellet stove cladded in Majolica in Bianco, Bianco Grigio, Canapa, Verde Mirto, Nero Opaco, Rosso Lava. The flue can also be fitted to the top of the stove so it can be installed flush with the wall and also inside an old chimney. Door opening with detachable handle.

FEATURES

Piazzetta P945 C Pellet Stove

THE EFFICIENCY OF PELLETS

Performance and savings, the optimum solution for bringing warmth to the home.

Piazzetta P945 C Pellet Stove

AIRTIGHT FIREBOXES

Appliances with airtight fireboxes are designed to maintain better quality air in the room and to ensure high performance and efficiency. Drawing combustion air from the outside avoids using up the oxygen in the room where the appliance is installed. They are suitable for all types of homes and are the perfect solution for passive houses that cannot have a traditional type of external air inlet.

Piazzetta P945 C Pellet Stove

FOR PERFECT COMFORT IN MORE THAN ONE ROOM

The convenience of a pellet appliance lies in its easy regulation using electronic management. The Multicomfort feature enables you to measure the heat level in the room where the remote control is located with its thermostat, and consequently to adjust the flame power so as to reach your ideal set temperature.

Piazzetta P945 C Pellet Stove

EXCLUSIVE RADIANT MAJOLICA

Exclusive feature of the Prestige line: its revolutionary internal combustion chamber ensures maximum efficiency and for the first time allows you to heat the Majolica cladding from the inside. In this the pleasure of heat by radiation is enhanced thanks to the ample Majolica surface, prolonging the warm comfort even after the stove has gone out.

INFORMATION

FLUE OUTLET

8 cm

PRODUCT WEIGHT

149 kg

TANK CAPACITY

16 kg

PELLET CONSUMPTION

0.9 - 2 kg/h

PRODUCT MEASURES

- Lenght : 75.7
- Pitch : 52.7
- Height : 86.6

COLORS

Piazzetta P945 C Pellet Stove
Rasso Lava
Piazzetta P945 C Pellet Stove
Nero Oapco
Piazzetta P945 C Pellet Stove
Verde Mirto
Piazzetta P945 C Pellet Stove
Bianco
Piazzetta P945 C Pellet Stove
Grigio Certo
Piazzetta P945 C Pellet Stove
Canapa

MODEL

P945

DOOR

Opening with detachable handle

MAIN FEATURES

-Multifuoco ducting 16M  -Majolica  -Remote control LCD  -Multicomfort
-Fuel level sensor  -Energy saving  -Programming  -Automatic cleaning
-Umidificatore  -Ash box  -Upper flue outlet  -Wall attached  -Optional
-Vacuum  -External air kit  -APP

HEATABLE VOLUME

150 - 260 m³

ENERGY EFFICIENCY CLASS

A+

PRODUCT TYPE

Stove

EFFICIENCY

88.9 - 90.3 %

RATED OUTPUT

4 - 9 kW

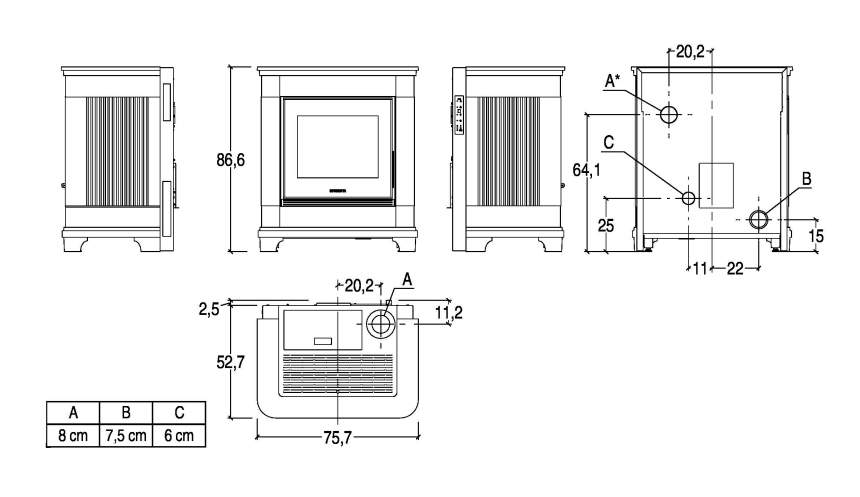

TECHNICAL DRAWING

- A : 8 cm
- B : 7.5 cm
- C : 6 cm

Piazzetta P945 C Pellet Stove

GENERAL FEATURES

-Heating: Multifuoco System® with 3 power levels and manual or automatic control. Hot ductable air -Natural Mode: yes -Power levels: 4 -Radiant Majolica: yes -Cladding / Top: majolica / majolica and steel -Front ventilation: adjustable vent -Humidifier: stainless steel -Remote control with LCD display: -Multicomfort: standard -Multicomfort Plus: standard -Ambient probe for temperature control: as standard feature -Module WiFi -Bluetooth for MyPiazzetta App: standard -Wireless probe for temperature management: optional -Timer-controlled thermostat with programming: 6 daily time frames -Eco / Energy Saving function: yes / yes -Glass cleaning: continuous air flow
-Cyclic brazier cleaning: yes -Ash vacuum cleaner: as standard feature -Installation: wall-flush with the corner
-Standard flue outlet position: rear / RH top -Optional flue outlet: top balanced flue -One-piece firebox: airtight in steel -Firebox: steel - cast iron -Door / Handle: cast iron with ceramic glass resistant to 750°C / coated steel that can be opened with detachable handle -Air Combustion System Function: yes -Pellet Quality System Function: yes
