SOLAR THERMAL SYSTEM STRATOS DR

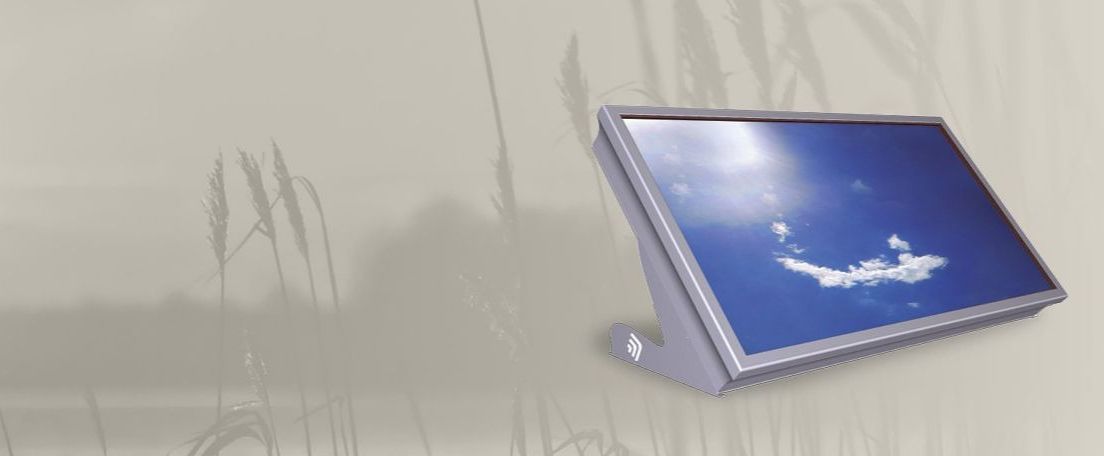

Compact solar thermal system with direct heating


Compared to traditional solar systems with natural circulation, which have an external storage tank, separated from the collector, the revolutionary STRATOS® DR system, produces domestic hot water through direct heating of the sanitary storage tank, which is integrated in the panel.

Solar Thermal System Stratos Dr
Solar Thermal System Stratos Dr

Thanks to its elegant design and extremely small dimensions, the STRATOS® system is the ideal choice to combine quality, aesthetics and energy savings.

INFORMation

WARRANTY

5 years

AWARDS

-Adi Design Index (2015) -Honorable mention Compasso D’Oro ADI (2016) -Good Design (2016) -German Design Award (2018)

Solar Thermal System Stratos Dr

DESIGN, PERFORMANCES AND SAVINGS

–Integrated DHW storage –Maximum space saving –High performances –Elegant aesthetics –Energy savings.

CONNECTIONS

- 3 connecƟ ons 1/2” gas F 1 connecƟ on
- 1”1/4 gas F for heaƟ ng element

FEAUTURES

-Compact solar system with natural circulation -DHW production -Integrated storage

PRODUCT TYPE

Solar Thermal System Stratos Dr

INCLUDED ACCESSORIES

-Vacuum break valve -6 bar safety valve -Fixing kit for fl at and pitched roof -Nr. 1 Cap of 1”1/4 gas M -Nr. 1 Cap of 1/2” gas M

Solar Thermal System Stratos Dr

STRUCTURE

Aluminum profi le, anodizing treatment included. Tempered glass according to EN 12150, tested against impact according to EN 12976. BoƩ omsand walls with high insulation power (λ 0,023 W/mk), thickness 30 mm.

ABSORBING SYSTEM AND THERMAL EXCHANGE CIRCUIT

Direct heaƟ ng of the integrated DHW accumulaƟ on treated with special high selecƟ ve solar painƟ ng.

DHW ACCUMULATION

Sanitary accumulaƟ on made of stainless steel AISI 316L suitable and cerƟ fi ed for drinking water according to 98/83/CE and subsequent amendments.

TECHNICAL DRAWINGS
