Piazzetta P930 C Pellet Stove
P930 C PELLET STOVE
P930 C PELLET STOVE

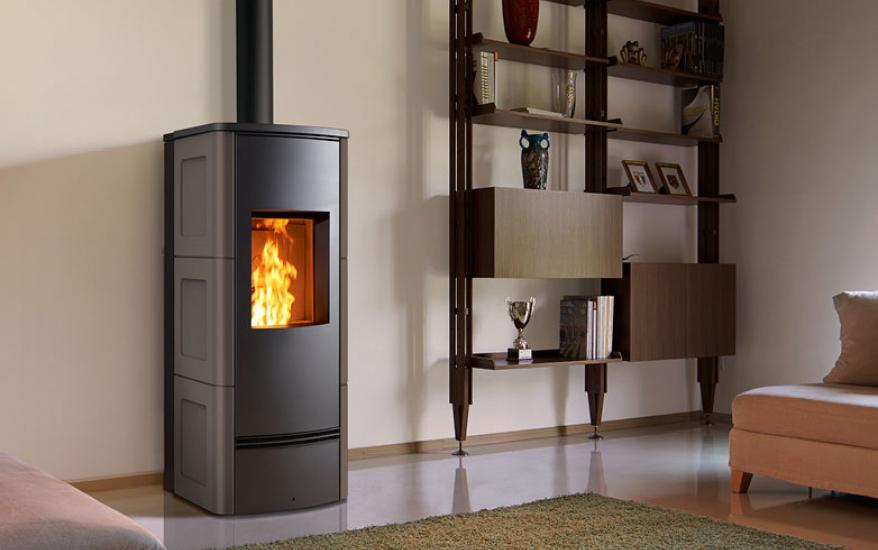

Pellet Stove P930 C, with Majolica cladding, for Flush-with-the-wall/Corner installation, Energy class A+. It is fitted with the Multifuoco® System.
A pellet stove with a traditional design, featuring refined Majolica panels adorned with motifs. Allows for heating with the Multifuoco® forced ventilation system or Natural Mode natural convection, for even more silent operation. Available in different colors.
FEATURES
THE EFFICIENCY OF PELLETS
Performance and savings, the optimum solution for bringing warmth to the home.
TO MAKE ROUTINE MAINTENANCE EASIER
To make manual cleaning easier, Piazzetta appliances are provided with an automatic brazier cleaning system. During operation, the brazier manages to cyclically eliminate the residues that form during combustion. This solution allows you to achieve higher efficiency and to reduce routine cleaning operations.

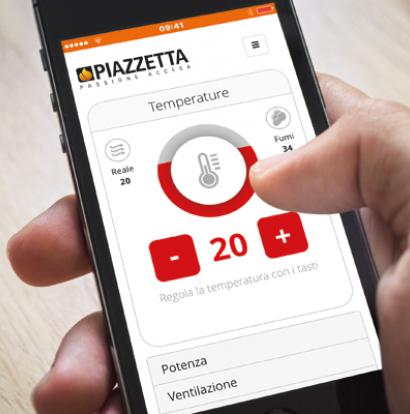

MY PIAZZETTA APP
The My Piazzetta app can be used to monitor pellet- and wood-based operation and programme the switching on and off sequences remotely, using the standard Wi-Fi device. The My Piazzetta app can be comfortably used also from home, via Bluetooth.

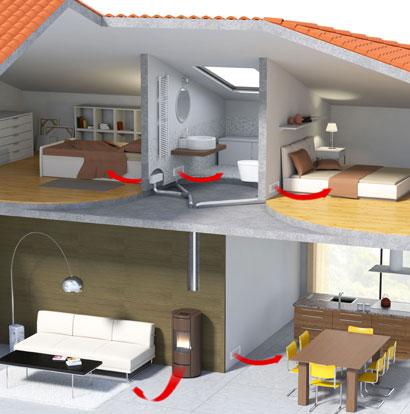

DUCTING WITH THE MULTIFUOCO® SYSTEM
The Multifuoco System® allows you to maintain an even room temperature, thanks to natural convection currents. It avoids the layering of heat near the ceiling and ensures heat at floor level (our feet). Via a simple ducting system, consisting of small-diameter, flexible pipes, you can also heat other rooms in the house, even on different floors.
INFORMATION
ENERGY EFFICIENCY CLASS
A+
HEATABLE VOLUME
185 - 315 m³
PRODUCT MEASURES
55 x 57,5 x 126
FLUE OUTLET
8 cm
MODLE
- P930 C
- P930 C Top
PELLET CONSUMPTION
- Posteriore : 0,8 - 2,4 kg/h
- Superiore : 0,9 - 2,4 kg/h
RATED OUTPUT
- Posteriore : 3,9 - 11 kW
- Superiore : 4,1 - 11 kW
EFFICIENCY
- Posteriore : 90 - 90,7 %
- Superiore : 91,5 - 91,8 %
TANK CAPACITY
- Posteriore : 26 kg
- Superiore : 21 kg
COLORS
MAIN FEATURES
-Radiant Majolica -Multifuoco System -Air Combustion System -Reburn
-APP WI-FI bluetooth -Design double door -Wall attached -Automatic cleaning -Ash box -Due ventilatori indipendenti -Majolica and steel
-Multicomfort Plus -Fuel level sensor -Hermetic -Natural mode -Top flue outlet -Programming -Pellet quality system -Rear flue outlet -Optional
-Upper Coaxial Flue Outlet Kit -Remote control LCD -Side ventilation

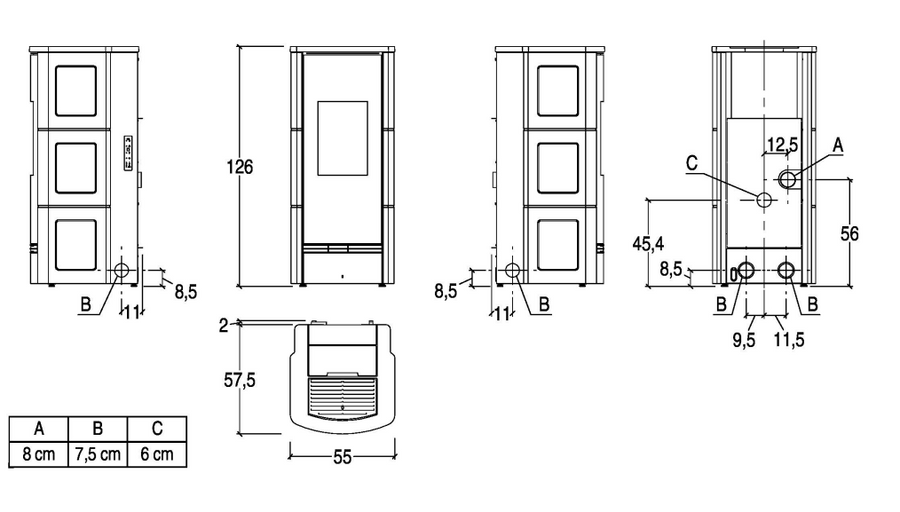

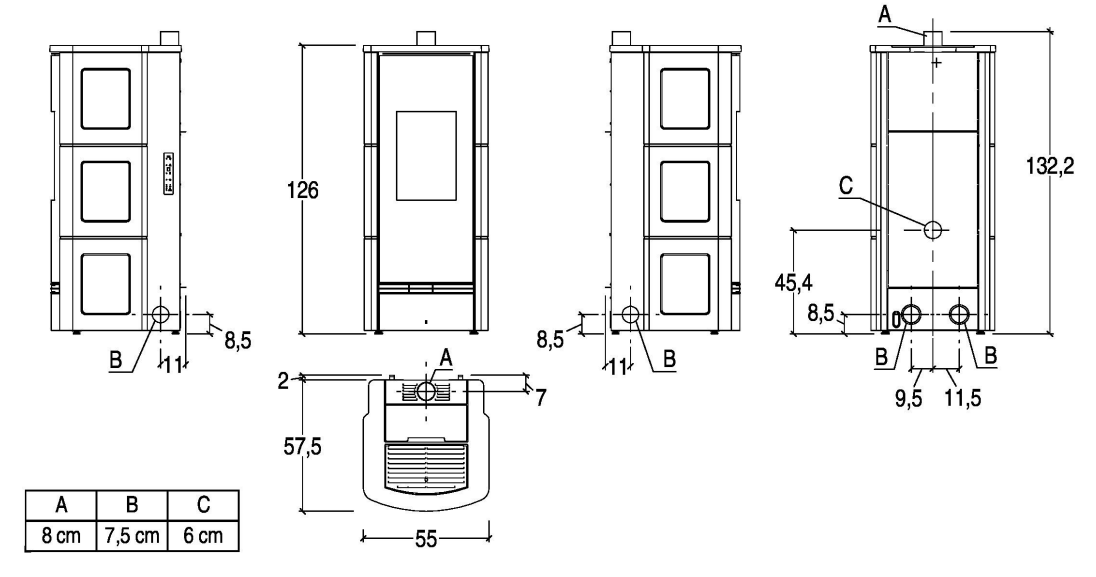

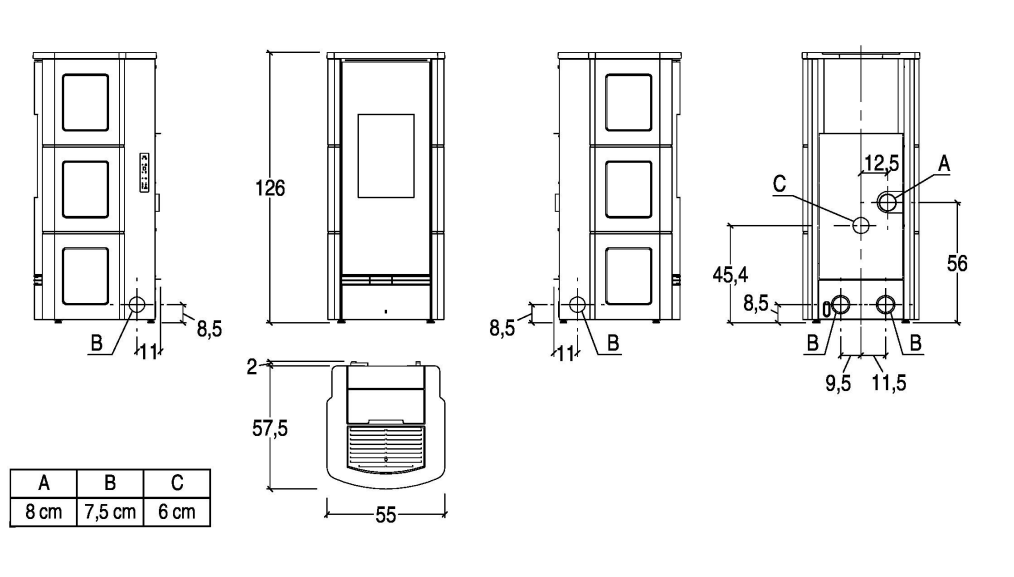

TECHNICAL DRAWING
- A : 8 cm
- B : 7.5 cm
- C : 6 cm
GENERAL FEATURES
-Heating: Multifuoco System® with 4 power levels and manual or automatic control. Hot ductable air -Natural Mode: yes -Power levels: 5 -Radiant Majolica: yes -Dual Power System: 4 power levels and manual or automatic control
-Cladding / Top: majolica / steel - cast iron -Front ventilation: adjustable vent -Humidifier: stainless steel -Remote control with LCD display: -Multicomfort: standard -Multicomfort Plus: standard -Ambient probe for temperature control: as standard feature -Control panel with digital controls: yes -Module WiFi - Bluetooth for MyPiazzetta App: standard -Wireless probe for temperature management: optional -Timer-controlled thermostat with programming: 6 daily time frames -Eco / Energy Saving function: yes / yes -Glass cleaning: continuous air flow -Cyclic brazier cleaning: yes -Ash vacuum cleaner: as standard feature -Installation: flush with the wall - corner -Standard flue outlet position: left rear or upper -One-piece firebox: airtight in steel -Firebox: cast iron -Door / Handle: cast iron with ceramic glass resistant up to 750°C / detachable -Combustion air kit: -Design door: -Air Combustion System Function: yes -Pellet Quality System Function: yes -Ash conveyor: steel -Side ventilation: optional vent, fixed
-Combustion air kit:
