Piazzetta Ortisei Pellet Stove
ORTISEI PELLET STOVE
ORTISEI PELLET STOVE

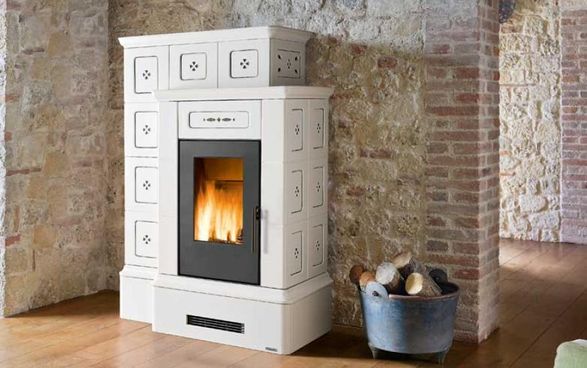

Pellet Stove model CANAZEI with Majolica cladding, for Wall/Corner installation, Energy class A+. It is fitted with the Multifuoco® System.
A reinterpretation of the classic versions of Majolica-style stoves. Its distinctive style makes a striking impression in any setting. Available in the following colours: Bianco, Canapa, Verde Mirto, Blu Verdemare and Terra Bruna or in Bianco Antico with hand-painted decorations. Adjustable, front hot air vent.
FEATURES
THE EFFICIENCY OF PELLETS
Performance and savings, the optimum solution for bringing warmth to the home.
PROGRAMMABLE OPERATION
Piazzetta pellet appliances have a handy remote control you can use to set when the stove comes on and goes off, during a day and during the week. In addition to this function, pellet appliances also enable you to manage and monitor their operation remotely, by sending a text message or using the App via Wi-Fi.
DUCTING WITH THE MULTIFUOCO® SYSTEM
The Multifuoco System® allows you to maintain an even room temperature, thanks to natural convection currents. It avoids the layering of heat near the ceiling and ensures heat at floor level (our feet). Via a simple ducting system, consisting of small-diameter, flexible pipes, you can also heat other rooms in the house, even on different floors.
FOR PERFECT COMFORT IN MORE THAN ONE ROOM
The convenience of a pellet appliance lies in its easy regulation using electronic management. The Multicomfort feature enables you to measure the heat level in the room where the remote control is located with its thermostat, and consequently to adjust the flame power so as to reach your ideal set temperature.
INFORMATION
ENERGY EFFICIENCY CLASS
A+
RATED OUTPUT
3,8 - 11 kW
EFFICIENCY
89,4 - 91,6 %
HEATABLE VOLUME
185 - 315 m³
PELLET CONSUMPTION
0,9 - 2,5 kg/h
TANK CAPACITY
43 kg
FLUE OUTLET
8 cm
PRODUCT WEIGHT
302kg
PRODUCT MEASURES
100 x 57,8 x 150,2
COLORS
MAIN FEATURES
-Air Combustion System -APP WI-FI bluetooth -Radiant Majolica -Natural mode -Hermetic -Pellet quality system -Multifuoco ducting 16M -Dual power -Majolica -Multicomfort -Fuel level sensor -Energy saving -Programmin -Automatic cleaning -Adjustable air flow -Ash box -Vacuum -Wireless Temperature Sensor -Remote control LCD
-External air kit
DOWNLOADS
↓ Product sheets
↓ Technical drawings

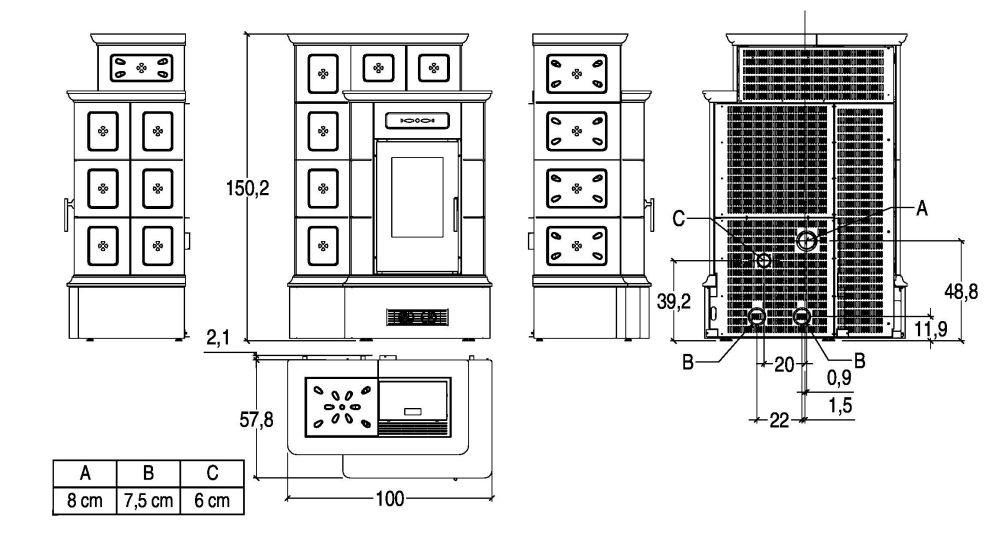

TECHNICAL DRAWING
- A : 8 cm
- B : 7.5 cm
- C : 6 cm
GENERAL FEATURES
-Heating: Multifuoco System® with 4 power levels and manual or automatic control. Hot ductable air -Power levels: 5 -Dual Power System: 4 power levels and manual or automatic control -Cladding / Top: majolica / majolica and steel -Rolling Top: sliding top -Front ventilation: adjustable vent -Remote control with LCD display: yes -Ambient probe for temperature control: as standard feature -Control panel with digital controls: yes -Piazzetta App for Wi-Fi management / Management via SMS: optional / optional -Timer-controlled thermostat with programming: 6 daily time frames -Eco / Energy Saving function: yes / yes -Glass cleaning: continuous air flow -Cyclic brazier cleaning: yes -Ash vacuum cleaner: optional -Installation: wall -corner -Standard flue outlet position: LH rear -One-piece firebox: steel -Firebox: cast iron -Door / Handle: cast iron with ceramic glass resistant to 750°C / steel with nickel-plated finish -Piazzetta App for Wi-Fi management: optional -Removable ash pan: yes -Oven: stainless stee
