Piazzetta P230 M Pellet Stove

P230 M PELLET STOVE

P230C PELLET STOVE

Pellet Stove P230 M, with Majolica cladding, for Flush-with-the-wall/Corner installation, Energy class A+. It is fitted with the Multifuoco® System.

Piazzetta P230 M Pellet Stove

The Pellet Stove P230 M, for Flush-with-the-wall/Corner installation and cladded in Majolica, with its 11 KW and Energy class A+, is a refined appliance from the Premium Plus Line by Piazzetta. Discover all the features in the Multifuoco® System ducting system, the Apps, Distance Management and lots more

FEATURES

Piazzetta P230 M Pellet Stove

THE EFFICIENCY OF PELLETS

Performance and savings, the optimum solution for bringing warmth to the home.

Piazzetta P230 M Pellet Stove

MULTICOMFORT PLUS

The Multicomfort Plus function allows for setting a specific temperature in another room – heated with a ducted system – besides the one where the stove is installed. The room temperature can also be measured using an external thermostat, which must be connected directly to the stove’s electronic PCB.

Piazzetta P230 M Pellet Stove

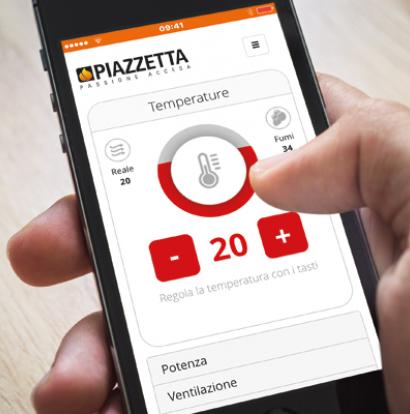

MY PIAZZETTA APP

The My Piazzetta app can be used to monitor pellet- and wood-based operation and programme the switching on and off sequences remotely, using the standard Wi-Fi device. The My Piazzetta app can be comfortably used also from home, via Bluetooth.

Piazzetta P230 M Pellet Stove

EASY INSTALLATION

The Premium Plus range is designed for being installed completely flush with the wall, thanks to the flat rear wall. Moreover, each model comes in two versions: one has the smoke outlet on the rear and one on the top, incorporated in the design, which can also be fitted with a coaxial pipe by means of an optional kit.

INFORMATION

BRAND

Piazzetta

PRODUCT TYPE

Stove

TANK CAPACITY

- Scarico Superiore : 26 kg
- Scarico Posteriore : 21 kg

RATED OUTPUT

- Scarico Superiore : 3.9 - 11 kW
- Scarico Posteriore : 4.1 - 11 kW

HEATABLE VOLUME

- Scarico Superiore : 185 - 315 m³
- Scarico Posteriore : 185 - 315 m³

PELLET CONSUMPTION

0.8 - 2.4 kg/h -0.9 - 2.4 kg/h

 MODEL

-P230 M -P230 M Scarico Superiore

PRODUCTION

Made in Italy

USE

Indoor

FLUE OUTLET

8 cm

ENERGY EFFICIENCY

A+

EFFICIENCY

- Scarico Superiore : 90 - 90.7 %
- Scarico Posteriore : 91.5 - 91.8 %

TECHNICAL DRAWING

-A : 8 cm -B : 7.5 cm -C : 6 cm

Piazzetta P230 M Pellet Stove
Piazzetta P230 M Pellet Stove

PRODUCT MEASURES

- Length : 58.6
- Pitch : 57.7
- Height : 132

OPTIONAL

- Coaxial
- Side ventilation
- Remote control LCD

GENERAL FEATURES

-Heating: Multifuoco System® with 4 power levels and manual or automatic control. Hot ductable air -Natural Mode: yes -Power levels: 5 -Radiant Majolica: yes -Dual Power System: 4 power levels and manual or automatic control
-Cladding / Top: majolica / steel - cast iron -Front ventilation: adjustable vent -Humidifier: stainless steel -Remote control with LCD display: -Multicomfort: standard -Multicomfort Plus: standard -Ambient probe for temperature control: as standard feature -Control panel with digital controls: yes -Module WiFi - Bluetooth for MyPiazzetta App: standard -Wireless probe for temperature management: optional -Timer-controlled thermostat with programming: 6 daily time frames -Eco / Energy Saving function: yes / yes -Glass cleaning: continuous air flow -Cyclic brazier cleaning: yes -Ash vacuum cleaner: as standard feature -Installation: flush with the wall - corner -Standard flue outlet position: left rear or upper -One-piece firebox: airtight in steel -Firebox: cast iron -Door / Handle: cast iron with ceramic glass resistant up to 750°C / detachable -Combustion air kit: -Design door: -Air Combustion System Function: yes -Pellet Quality System Function: yes -Ash conveyor: steel -Side ventilation: optional vent, fixed
-Combustion air kit:

COLOURS

-Marrone tenne -BinacoGrigio -Terra Cotta -Rasso Lava -Nero Oapco -Bianco -Binaco Cacle

Piazzetta P230 M Pellet Stove
Marrone tenne
Piazzetta P230 M Pellet Stove
BinacoGrigio
Piazzetta P230 M Pellet Stove
Terra Cotta
Piazzetta P230 M Pellet Stove
Rasso Lava
Piazzetta P230 M Pellet Stove
Nero Oapco
Piazzetta P230 M Pellet Stove
Binaco Cacle

MAIN FEATURES

- Majolica and steel
- Natural mode
- wall attached
- Hermetic
- Multicomfort Plus
- Air Combustion System

- Top flue outlet
- Radiant Majolica
- Pellet quality system
- Ash box
- Programming
- Reburn

- Automatic cleaning
- Design double door
- Multifuoco System
- Fuel level sensor
- APP WI-FI bluetooth
- Rear flue outlet
