Hakoaustralia Scrubmaster B400 R Scrubber-Drier
Scrubmaster B400 RM
SCRUBMASTER B400 RM
Scrubber-drier
information
PRODUCTION
Made in Australia
PRODUCT CODE
B400
UNITS
3-disc-brush units with working widths of 123 cm or 155 cm
VARIANTS
Low-dust sweeping and reduced fine particulate emissions with DustStop (variants Scrubmaster B400 RH and B400 RM)
UP THE AISLE, BACK DOWN THE AISLE – DONE!
The Scrubmaster B400 R is extremely compact and enables complete U-turns in aisles as small as 230 cm. And our 155-cm-working-width variant is a real timesaver when it comes to cleaning aisles of up to 3 meters: One pass up and back down the aisle is sufficient to provide excellent cleaning results.
TOOLS SYSTEM
Individually configurable with numerous optional extras and tools
BATTERY CAPACITY
Maximized battery capacity provided by the optional battery changing system
OTHER DETAILS
AGR-certified, ergonomic workplace with a height-adjustable steering wheel ensures back-friendly working.
THREE VARIANTS – COUNTLESS POSSIBILITIES
The Scrubmaster B400 R Series comprises three variants: the vacuum sweeper and scrubber-drier combi machine Scrubmaster B400 RH with a high dump, the vacuum sweeper and scrubber-drier combi machine Scrubmaster B400 RM for manual emptying, and the scrubber-drier Scrubmaster B400 R.
BRAND
Hakoaustralia
PRODUCT TYPE
Vaccum Cleaner
CLEANING MODE
X-AC front and rear drive (optional) for improved traction and a powerful performance on both level surfaces and inclines of up to 15% in cleaning mode
PERFORMANCE
With its high area performance and small turning circle, the compact scrubber-drier Scrubmaster B400 R reliably provides clean floors.
-Complete U-turns in aisles as small as 230 cm -The quick-connect system allows uncomplicated upgrading with pre-sweep tools or special equipment
DOWNLOADS
↓ Brouchers
AREAS
The new dimension for very large areas

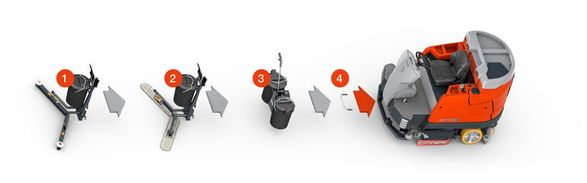

EXTENDED APPLICATION OPTIONS WITH HAKO'S QUICK-CONNECT SYSTEM
Where coarse dirt or light debris accumulates in addition to dust and dirt, or for areas that require pre-cleaning, the quick-connect system (option) provides uncomplicated upgrading of the Scrubmaster B400 R with additional tools.
1 Tool Pre-sweep unit “Broom”
2 Tool Pre-sweep unit “Mop”
3 Tool Light-debris collector
4 Tool quick-connect system
TECHNICAL DATA
| SCRUBMASTER B400 R | - | B400 R/RM/RH 1230 | B400 R/RM/RH 1550 |
|---|---|---|---|
| Working width scrubbing | cm | 123 | 155 |
| Squeegee width | cm | 136 | 166 |
| Theoretical area performance | m²/h | 11000 | 14000 |
| Max. climbing capacity/ | % | 6 / 15 | 6 / 15 |
| in cleaning mode without/with X-AC | - | - | - |
| Working speed | km/h | 9 | 9 |
| Brush system/number of brushes | - | disc/3 | disc/3 |
| Brush contact pressure | kg | 55-75-95 | 80-110-140 |
| Solution and recovery tank capacity | l | 400 | 400 |
| Dirt hopper capacity (gross)* | l | 2 x 44 | 2 x 44 |
| Take-it-Easy high dump** | - | 150 | 150 |
| Nominal voltage | Volt | 36 | 36 |
| Total output | Kw | 14.7 | 16 |
| Battery capacity max. | Ah | 540/810 | 540/810 |
| Length with squeegee R/RM/RH | cm | 202 / 281 / 281 | 202 / 281 / 281 |
| Width without/with the squeegee | cm | 130 / 136 | 160 / 166 |
| Height without/with overhead guard | cm | 150 / 212 | 150 / 212 |
| Weight, ready to use, without driver | kg | 2110 / 2260 / 2420 | 2130 / 2280 / 2440 |
| Noise level at the driver’s ear R/RM/RH | dB(A) | 68 / 74 / 74 | 68 / 74 / 74 |
