Ride-on scrubber-drier for larger areas

Scrubmaster B120 R Floor Scrubber
Scrubmaster B120 R Floor Scrubber

Highly productive, maneuverable, and ergonomic: The Scrubmaster B120 R combines high area performance with extreme maneuverability, which makes this scrubber-drier the perfect choice when it comes to cleaning shopping centers, production halls, and highly-frequented buildings such as train stations or airports.

A tank capacity of 120 liters, as well as the machine’s cleaning performance of 5,800 m²/h, four different working widths available, and long machine runtimes ensure fast and efficient cleaning of larger areas.

Scrubmaster B120 R Floor Scrubber

FEATURES

Scrubmaster B120 R Floor Scrubber

HIGHLY FLEXIBLE

This ride-on scrubber-drier is extremely flexible in everyday use. When equipped with two cylindrical brushes, it enables sweeping and scrubbing in a single working step. The Scrubmaster B120 R can be equipped with either disc- or cylindrical brushes to meet individual cleaning requirements. Changing from disc- to cylindrical brushes and vice versa is particularly easy thanks to the upward-opening side strippers.

PRODUCTIVE. MANOEUVRABLE. ERGONOMIC

Increased area performance and superior manoeuvrability: The Scrubmaster B120 R has been designed to meet the highest demands when it comes to cleaning shopping centres, production halls and highly frequented buildings such as train stations and airports. With its tank capacity of 120 litres combined with high operational performance and available in four different working widths, the machine enables fast and efficient cleaning of large and mediumsized areas. Moreover, its compact dimensions and a 90-degree steering angle make the Scrubmaster highly manoeuvrable and flexible in use. The machine can be equipped with either disc- or cylindrical brushes, which allows adapting the configuration to meet individual cleaning requirements. The Scrubmaster B120 R provides a perfect workplace for the operator: ergonomically designed and equipped with sophisticated technical details that ensure efficient working. Hako – Innovative ideas that pay off in the daily work routine.

DESIGNED WITH MUCH ATTENTION TO DETAIL

Scrubmaster B120 R Floor Scrubber

TANK CLEANING MADE EASY

No dirt deposits thanks to the smooth inner surfaces of the tank.

Scrubmaster B120 R Floor Scrubber

UNCOMPLICATED CHARGING

Uncomplicated charging at any conventional power outlet – thanks to the onboard charger.

Scrubmaster B120 R Floor Scrubber

WORKING CLOSE TO EDGES

Working close to edges thanks to the brush deck protruding to the right.

information

BRAND

Hakoaustralia

PRODUCT TYPE

Floor Scrubber

Scrubmaster B120 R Floor Scrubber

SAVING TIME

Sophisticated technical details provide the basis for both time- and cost-efficient working. To make daily routine work easier, all components are clearly marked and easy to access. The machine has been designed to enable cleaning staff to carry out all operation-related jobs – from energy supply to tank cleaning – in a safe and fast manner and with minimum effort. Hako – Technology that supports economically efficient working.

DOWNLOAD

↓ Brochure

CAPACITY

120 liters

Scrubmaster B120 R Floor Scrubber

TECHNOLOGY PROVIDES EFFICIENT WORKING

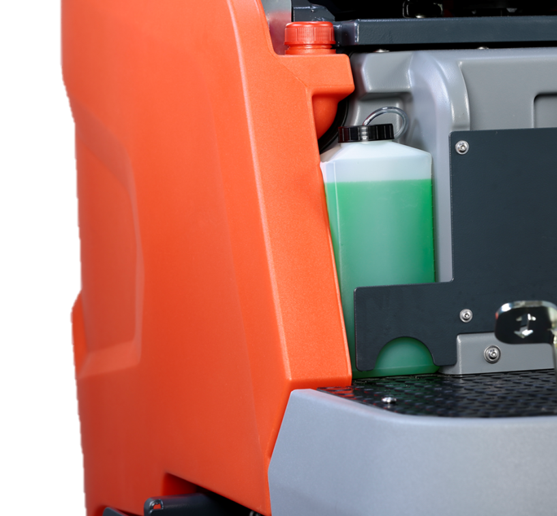

- The on-board dosing system is completely integrated in the machine design and ensures that optimum quantities of cleaning detergents are added, depending on the amount of water used.
- The on-board charger enables charging of the battery at any conventional 220/230V mains outlet.

EASY HANDLING

The Scrubmaster B120 R is not only extremely efficient but also very flexible in use. Equipped with two cylindrical brushes, both sweeping and scrubbing can be carried out in a single working step. Two fold-out cleaning strippers enable fast and easy changing of disc brushes or cylindrical brushes.

Scrubmaster B120 R Floor Scrubber

SMOOTH INNER SURFACES IN THE TANK

Makes cleaning the tank easier and prevents residual dirt from sticking to the surface. Clearly marked: all components that require regular inspection and maintenance are marked yellow.

OVERVIEW AT A GLANCE

Wear indicator for brushes and pads. A comfortable discharge system enables fast and easy changing of the brushes – without the need for tools.

EXTREMELY MANOEUVRABLE

Both the machine’s small turning circle of only 179 cm and the 90-degree steering angle provide easy working in corners, narrow aisles and corridors – another big plus in terms of flexibility

INTUITIVE AND EASY TO USE

All the cleaning functions of the Scrubmaster B120 R are visible at a glance on the illuminated display, which is intuitive and easy to use.
- 1-button operating system : starts all cleaning functions at the push of a button
- Boost button : activates both maximum water supply and brush pressure
- Slow mode : reduces the speed to 3.5 km/h
- Warning signal : warns the operator when the filling level in the solution tank sinks below 10 liters

INNOVATIONS PROVIDE REDUCED OPERATING COSTS AND INCREASED ECONOMIC EFFICIENCY

Hako’s technological lead contributes to reducing operating costs, increasing economic efficiency, and cleaning in a more eco-friendly manner.
- Hako-Chemical on Demand – need-based use of chemicals: Cleaning chemicals are added only when absolutely necessary.
- Hako-AquaControl: saves up to 50 % of water, thanks to intelligent brush systems and our automatic water-stop function when the machine stands still.

Hako-LowNoise : ensures that noise does not become a nuisance. Particularly low-noise working that causes no disturbance at all.

Scrubmaster B120 R Floor Scrubber

Technical Data

SCRUBMASTER B120 RWB700TB750WB800TB900
Working width 70 cm75 cm85 cm90 cm
Solution/recovery tank120/120 l120/120 l120/120 l120/120 l
Theoretical area performance4.500 m²/h4.800 m²/h5.500 m²/h5.800 m²/h
Working speed up to6,5 km/h6,5 km/h6,5 km/h6,5 km/h
Nominal voltage24 V24 V24 V24 V
Power consumption drive motor727 W727 W727 W727 W
Power consumption brush motor2 x 876 W2 x 876 W2 x 876 W2 x 876 W
Power consumption vacuum motor480 W480 W480 W480 W
Number/type of brushes2/cylindrical2/disk2/cylindrical2/disk
Brushes RPM850210850210
Active squeegee width95 cm95 cm110 cm110 cm
Width without/with squeegee81/96 cm81/96 cm95/112 cm95/112 cm
Total weight, ready for use707 kg723 kg709 kg738 kg
