SCRUBMASTER B400 RM VACUUM SWEEPER
SCRUBMASTER B400 RM VACUUM SWEEPER
The new dimension for very large areas
In environments with normal to high levels of coarse dirt, the Scrubmaster B400 RM plays its trump cards to the full.
Coarse dirt is collected during dry sweeping to clear the path for the brushes and enable thorough wet cleaning.
After the cleaning job is done, the dirt hopper can be quickly and easily emptied by hand.
INFORMATION
HOPPERS
Two 44-liter dirt hoppers
SWEEPING
Dust Stop for low-dust sweeping
SYSTEM
Take-it-Easy hopper-emptying system
PRODUCTION
Made in Australia
BRAND
Hako
PRODUCT TYPE
Vacuum Sweeper
DOWNLOAD
↓ Brochure
SWEEPING PATH
Sweeping path of up to 168 cm (the squeegee is covered)
COMFORTABLE AND UNCOMPLICATED: HAKO'S TAKE-IT-EASY DIRT HOPPER SYSTEM
After the cleaning job is done, the Take-it-Easy dirt hopper system of the Scrubmaster B400 RM allows uncomplicated removal and emptying of the two 44-liter dirt hoppers without the operator coming in contact with their contents.
LESS DIRT, LESS DUST
Yet another benefit: Hako’s innovative side broom jacket Dust Stop (option) reduces the development of dust and fine particulates during dry sweeping by up to 90% when compared to working with conventional side brooms, which protects both the immediate environment and, for instance, goods stored on shelves against rising dust. In addition, the negative impact of fine particulates on the operator’s health is reduced significantly.
USE
Floor
WORKING WIDTH
123 cm or 155 cm
MACHINE
Vacuum sweeper and scrubber-drier combi machine for manual emptying
THREE VARIANTS – COUNTLESS POSSIBILITIES

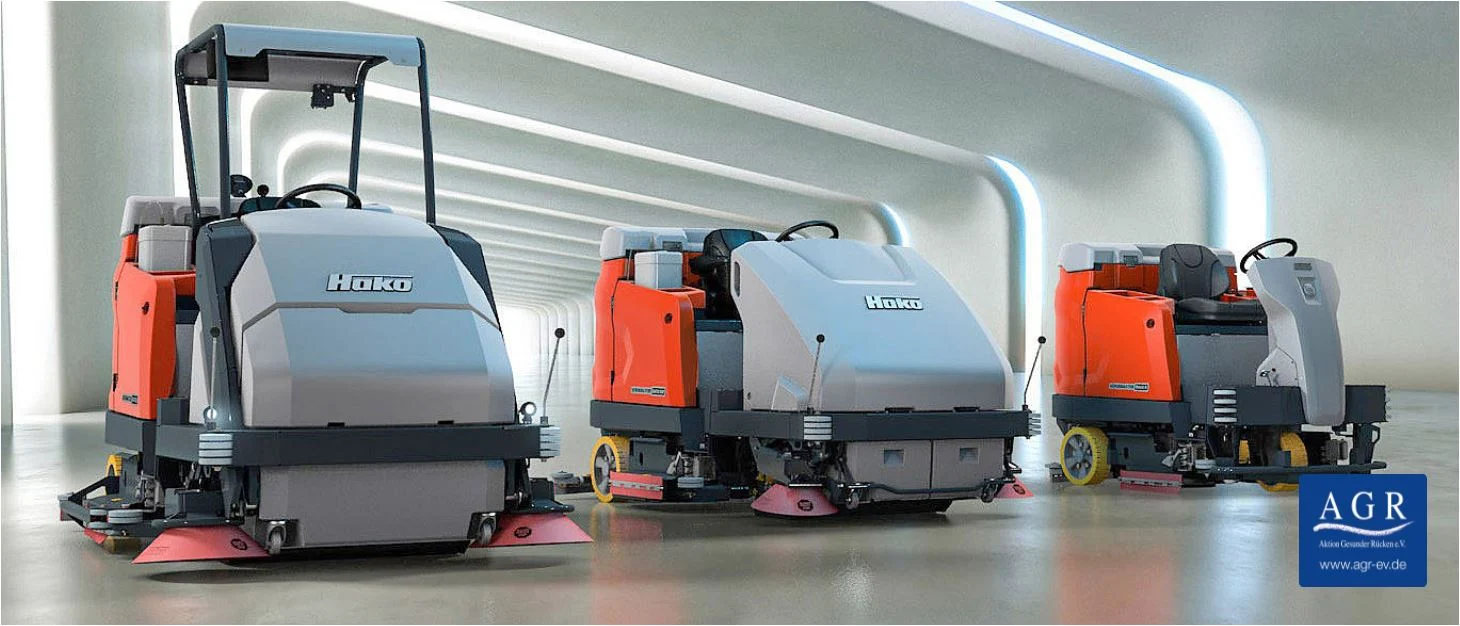

The Scrubmaster B400 R Series comprises three variants: the vacuum sweeper and scrubber-drier combi machine Scrubmaster B400 RH with a high dump, the vacuum sweeper and scrubber-drier combi machine Scrubmaster B400 RM for manual emptying, and the scrubber-drier Scrubmaster B400 R.
- 3-disc-brush units with working widths of 123 cm or 155 cm
- Maximized battery capacity provided by the optional battery changing system
- Individually configurable with numerous optional extras and tools
- AGR-certified, ergonomic workplace with a height-adjustable steering wheel ensures back-friendly working
- X-AC front and rear drive (optional) for improved traction and a powerful performance on both level surfaces and inclines of up to 15% in cleaning mode
- Low-dust sweeping and reduced fine particulate emissions with DustStop (variants Scrubmaster B400 RH and B400 RM)
Technical Data
| SCRUBMASTER B400 R | - | B400 R/RM/RH 1230 | B400 R/RM/RH 1550 |
|---|---|---|---|
| Working width scrubbing | cm | 123 | 155 |
| Squeegee width | cm | 136 | 166 |
| Theoretical area performance | m²/h | 11000 | 14000 |
| Max. climbing capacity/ | % | 6 / 15 | 6 / 15 |
| in cleaning mode without/with X-AC | - | - | - |
| Working speed | km/h | 9 | 9 |
| Brush system/number of brushes | - | disc/3 | disc/3 |
| Brush contact pressure | kg | 55-75-95 | 80-110-140 |
| Solution and recovery tank capacity | l | 400 | 400 |
| Dirt hopper capacity (gross)* | l | 2 x 44 | 2 x 44 |
| Take-it-Easy high dump** | - | 150 | 150 |
| Nominal voltage | Volt | 36 | 36 |
| Total output | Kw | 14.7 | 16 |
| Battery capacity max. | Ah | 540/810 | 540/810 |
| Length with squeegee R/RM/RH | cm | 202 / 281 / 281 | 202 / 281 / 281 |
| Width without/with the squeegee | cm | 130 / 136 | 160 / 166 |
| Height without/with overhead guard | cm | 150 / 212 | 150 / 212 |
| Weight, ready to use, without driver | kg | 2110 / 2260 / 2420 | 2130 / 2280 / 2440 |
| Noise level at the driver’s ear R/RM/RH | dB(A | 68 / 74 / 74 | 68 / 74 / 74 |
