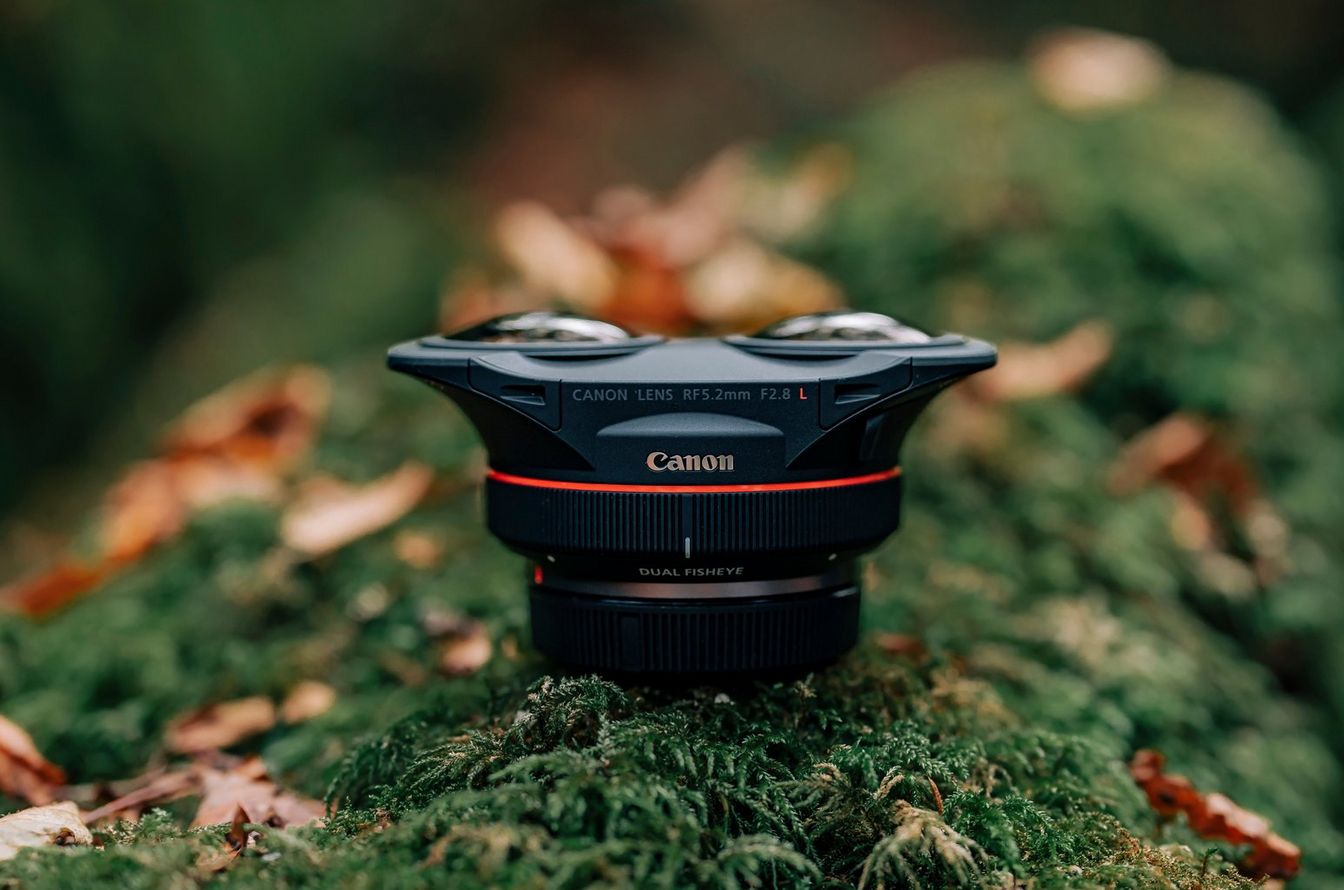

Canon Rf 5.2mm F2.8l Dual Fisheye Camera Lens

RF 5.2MM F2.8L DUAL FISHEYE CAMERA LENS

Canon Rf 5.2mm F2.8l Dual Fisheye Camera Lens

RF 5.2MM F2.8L DUAL FISHEYE CAMERA LENS

Capture the world in stunning virtual reality with this ground-breaking L-series lens, designed to make your VR journey as simple and seamless as possible.

A virtual reality lens that simplifies the capture and post-production of professional 180° VR content. Experience the video below through using a VR headset (for a fully immersive and stereoscopic experience), a mobile device or computer. An inspirational story captured by VR Director, Mary Matheson and Director of Photography, Richard Stegmann.

Canon Rf 5.2mm F2.8l Dual Fisheye Camera Lens

CAPTURE VIEWS THAT ARE MORE THAN VIRTUAL

Capture the world in virtual reality thanks to the RF 5.2mm F2.8L DUAL FISHEYE; a compact, stereoscopic L-series RF lens capable of capturing super-sharp content that – with the rest of Canon’s EOS VR SYSTEM, including a camera and software solution – transforms footage into a truly breathtaking visual experience, immersing you within the environment.

FEATURES

AMAZINGLY PRACTICAL (3D) 180° VR CAPTURE

The compact, single mount design simplifies quick camera setups for professional stereoscopic 180° VR capture, when using compatible high resolution, Full Frame, RF mount cameras, such as the EOS R51 and R5 C.

Canon Rf 5.2mm F2.8l Dual Fisheye Camera Lens

EFFICIENT AND SIMPLIFIED WORKFLOW

Featuring a stereoscopic 190° field of view, two offset circular fisheye images are perfectly synchronised and recorded side-by-side onto a single Full Frame sensor, ready for Canon’s powerful EOS VR Utility2/plug-in2 to seamlessly process for final edit, requiring no additional stitching.

Canon Rf 5.2mm F2.8l Dual Fisheye Camera Lens

RAW (8K / 60P) VIDEO WORKFLOW

Compatible RAW video files taken with supported cameras (including 8K / 60P RAW LT files from the EOS R5 C) are automatically processed within EOS VR Utility, further simplifying a RAW workflow with higher frame rates.

Canon Rf 5.2mm F2.8l Dual Fisheye Camera Lens

HIGH QUALITY IMAGE CAPTURE

Featuring perfectly aligned, dual forward facing fisheye lenses, the RF 5.2mm F2.8L DUAL FISHEYE utilises two UD elements per lens to correct for aberrations plus Canon’s special SWC coatings to reduce ghosting and flare, even in backlit conditions

Canon Rf 5.2mm F2.8l Dual Fisheye Camera Lens
Canon Rf 5.2mm F2.8l Dual Fisheye Camera Lens

FAST F/2.8 APERTURE FOR LOW LIGHT SHOOTING

The RF 5.2mm F2.8L DUAL FISHEYE performs superbly in low light thanks to a fast f/2.8 aperture with accurately synchronised exposure and precise control via a dual Electro Magnetic Diaphragm (EMD) design.

Canon Rf 5.2mm F2.8l Dual Fisheye Camera Lens

L-SERIES BUILD AND WEATHER RESISTANCE

Because it’s an L-series lens, the RF 5.2mm F2.8L DUAL FISHEYE is built for professional use. It is dust and splash resistant and features fluorine coatings to repel water and dirt on the lens surface.

Canon Rf 5.2mm F2.8l Dual Fisheye Camera Lens

GEL FILTER HOLDER FOR PRECISE EXPOSURE CONTROL

The RF 5.2mm F2.8L DUAL FISHEYE has a rear-mounted gelatin filter holder for pre-cut ND gels which can be used to help precisely control light levels when in use on 180° VR video productions.

INFORNMATION

BRAND

Canon

PRODUCT TYPE

Camera Lens

IMAGE SIZE

Full Frame

MINIMUM APERTURE

16

LENS CONSTRUCTION (ELEMENTS/GROUPS)

12/10

ANGLE OF VIEW (HORZNTL, VERTL, DIAGNL)

190°, 190°, 190°

F2.8 APERTURE

Exceptional performance in low light

MAXIMUM MAGNIFICATION

0.03 (x)

EXTENDER COMPATIBILITY

Not compatible

SPECIAL OPTICS

2 x UD

FLUORINE

Front

CONTROL RING

No

COATINGS

Super Spectra, SWC

Canon Rf 5.2mm F2.8l Dual Fisheye Camera Lens

NUMBER OF DIAPHRAGM BLADES

7

LENS CAP

Lens Cap 5.2 (center pinch type)

MAXIMUM MAGNIFICATION

0.03 (x)

SERIES

L-series lens

MAX. DIAMETER X LENGTH

(121.1 x 83.6) x 53.5

LENS CASE/POUCH

LS1014

REAR END CAP

Lens Dust Cap RF

OTHER ACCESSORIES

Hexagon wrench

SPECIAL FEATURES

Dual Fisheye with Baseline length of 60mm

DUST/MOISTURE RESISTAN

Rubber ring on lens mount

Canon Rf 5.2mm F2.8l Dual Fisheye Camera Lens

CLOSEST FOCUSING DISTANCE

0.2(m)

WEIGHT

350 G

SPECIFICATIONS

-Dual fisheye lens : Capturing a perfectly aligned stereoscopic image onto a single Full Frame sensor -190° field-of-view : Capturing a perfectly aligned stereoscopic image onto a single Full Frame sensor -60mm baseline length : Providing a natural stereoscopic viewing experience -UD elements and SWC coatings : Professional image quality for sharp, high contrast images, with reduced ghosting and flare -Dual EMD units : Precise control and synchronisation of the aperture ensures even exposure between the two left and right images -L-series quality : Designed and built to perform in demanding conditions -Built-in rear gelatin filter holder : For increased flexibility when shooting in bright conditions
