Siemens Iq500 Fully-integrated Dishwasher 60 CM
IQ500 FULLY INTEGRATED DISHWASHER
INFORMATION
BRAND
Siemens
DOOR PANEL OPTIONS
Not possible
TYPE
Full-integrated
COLOR / MATERIAL PANEL
Black
LIST OF PROGRAMMES
- Economy
- Normal
- Pre-Rinse
- Auto 45-65°C
- IntensivePlus
- Custom program
ADDITIONAL OPERATIONAL OPTIONS
- Extra dry
- Half load
- Intensive Zone
- Remote control
- Vario Speed Plus
DRYING SYSTEM
Heat Exchanger
3RD RACK
Yes
BUILT-IN / FREE-STANDING
Built-in
MAIN COLOUR OF PRODUCT
Galvanised
INSTALLATION DIMENSIONS
- Max. Height : 875 mm
- Max. Width : 608 mm
- Max. Depth : 550 mm
- Mini. Height : 815 mm
- Mini. Width : 600 mm
TUB MATERIAL
Plastic
WIDTH OF THE APPLIANCE
598 mm
RACKMATIC
Yes
NET WEIGHT
37.4 kg
SPECIFICATIONS
- 14 Place Settings
- Energy consumption: 0.92 kWh
- Water consumption: 9.5 litres
CONNECTION
-Connection Rating : 2.400 W
-Fuse protection : 10 A -Length outlet hose : 190 cm -Length inlet hose : 165 m -Plug type : India plug (16 Ampere) -Length electrical supply cord : 175.0 cm
THE WATER CONSUMPTION OF THE ECO PROGRAMME IN LITERS PER CYCLE (EU 2017/1369)
9.5 l
ADJUSTABLE PLINTH
Horizontal And Vertical
HEIGHT OF THE APPLIANCE
815 mm
DRYING PROGRESS INDICATOR
- Water inlet
- End of program audible
- Time remaining indic. internal

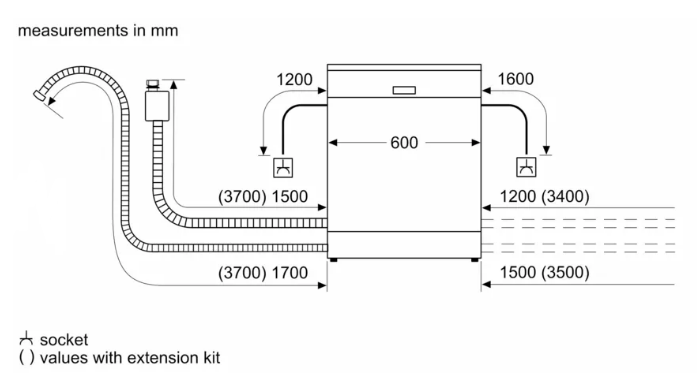

TECHNICAL DRAWING

BASKETS AND RACKS
- VarioDrawer
- 4x flip tines in lower basket
- 2 cup shelves in top basket
- 2x flip tines in upper basket
- Rackmatic 3-stage basket: Adjustable upper rack
SPECIAL OPTIONS
- Extra Dry
- Half Load
- Intensive Zone
- Vario Speed Plus
- Remote Start
REMOVABLE TOP
No
SAFETY
Door Latch : aquaStop water protection system
HOME CONNECT
Yes
WATER SOFTENER
Yes
FEATURES
- VarioSpeedPlus : Speed on demand
- Detergent Automation : Glass Care Protection system
- AquaSensor, Load sensor : iQ Drive
- Additional Top shower : DosageAssist
- Programme remaining time indicator : Time delay: 1 - 24 hr
- LED salt refill indicator : LED rinse aid refill indicator
PROGRAMMES
- Name, programme 1 : Economy
- Name, programme 2 : Auto
- Name, programme 3 : IntensivePlus
- Name, programme 4 : Normal
- Name, programme 5 : Pre-Rinse
- Reference programme : Eco
- Name, programme 6 : Custom program
- Number of different wash temperatures : 4
- Temperature, programme 1 (°C) : 50
- Temperature, programme 2 (°C) : 45-65
-Temperature, programme 3 (°C) : 70
-Temperature, programme 4 (°C) : 60
- Temperature, programme 6 (°C) : 45
- Programme duration, programme1 (min.) : 225
- Programme duration, programme2 (min.) : 100-165
- Programme duration, programme3 (min.) : 150-160
- Programme duration, programme4 (min.) : 135
- Programme duration, programme5 (min.) : 15
- Programme duration, programme6 (min.) : 29
CONSUMPTION VALUES
- Water consumption : 9.5 l
- Glass protection techn. : yes
- Water consumption, programme 1 (l) : 95
- Water consumption, programme 2 (l) : 7-15.5
- Water consumption, programme 3 (l) : 10.5-13.5
- Water consumption, programme 4 (l) : 13
- Water consumption, programme 5 (l) : 4
- Water consumption, programme 6 (l) : 10
- Energy consumption : 0.92 kWh
- Energy consumption, programme1 : 0.92 kWh
- Energy consumption, programme2 (kWh) : 0.85-1.45
- Energy consumption, programme3 (kWh) : 1.4-1.5
- Energy consumption, programme4 (kWh) : 1.25
- Energy consumption, programme5 (kWh) : 0.05
- Energy consumption, programme6 (kWh) : 0.75
- Maximum temperature for water intake (°C) : 60 °C
DETAIL
FOR PARTICULARLY DRY DISHES: EXTRADRY.
If you wish to wash a lot of plastic dishes, select the new Siemens extraDry programme. It uses higher temperatures for the drying process and extends the drying phase. Every plastic item will be dried optimally.
SAVE TIME AND HASSLE
As life gets busier and busier, Siemens dishwashers with Home Connect are here to help. Thanks to our partnership with Amazon Alexa* you can control your smart dishwasher via the Home Connect app or your smart speaker. Speed up the washing programme, for example, or turn on the silence setting.
