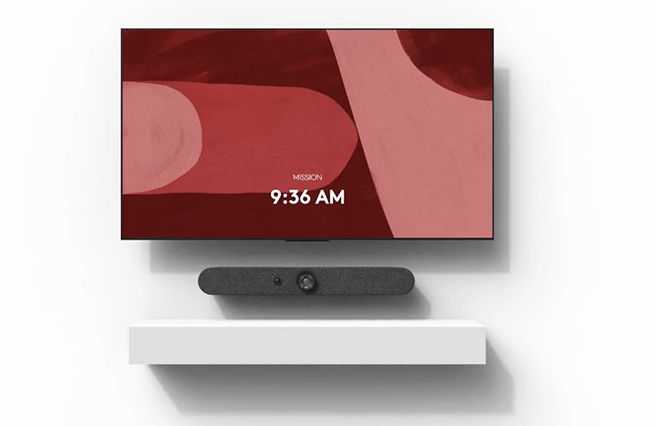

Logitech Rally Bar Mini
RALLY BAR MINI
RALLY BAR MINI
Simplicity meets versatility with rally bar mini, logitech’s most advanced all-in-one video bar for small meeting rooms and huddle spaces.
With studio- quality audio and video, ai- driven performance, and flexible deployment options, rally bar mini sets a new standard for small room collaboration.
FEATURES
INFORMATION
PRODUCT TYPE
Bar Mini
WEIGHT
4.03 kgs
INTERNET CONNECTION
Wired or wireless
TILT
Motorized ±15°
PROXY SUPPORT
- IP based Proxy
- Fqdn based Proxy
- Proxy using PAC file
USB MODE
Plug-and-play USB connectivity with virtually any video conferencing application For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications
ZOOM
4X HD digital zoom
DOWNLOAD
↓ Data Sheet
SEE WHAT YOU’VE BEEN MISSING
With a dual-camera system and RightSight 2 auto-framing technology, Rally Bar welcomes remote participants to the conversation. Choose Grid View to eliminate empty space and frame each person in their own stream, Speaker View to highlight the active speaker, or Group View to capture everyone in the room.
NETWORK PROTOCOL SUPPORT
-IPv4 -IPv6
PAN
Motorized ±25°
SECURITY
- Full Disk Encryption : AES-128
- Data Encryption : Symmetric Keys, PKI
- Key Protection : Arm TrustZone, RPMP
- Device Access : Authenticated using API
- Device Identity : Protected by device attestation
POWER & CABLES
- Power supply : Auto-sensing
- DC Cable : 1.5 m
- AC Cable : 1 m
- HDMI 1.4 Cable : 2 m
- USB A to USB C 3.0 Cable : 2.2 m
DEVICE MANAGEMENT
Logitech Sync
DISPLAYS SUPPORTED
2 (up to 1080p)
CERTIFICATIONS
- Zoom Room™
- Tencent Meeting Rooms
- Google Meet (ChromeOS/USB)
- Microsoft Teams Rooms on Android™ 5For small sized rooms
- Microsoft Teams Rooms on Windows 6For small sized rooms
VIEW
- Vertical Field of View : 80.7°
- Diagonal Field of View : 120°
- Horizontal Field of View : 113°
EXTENDED WARRANTY
Up to five year warranty
Purchasing an extended warranty3 Terms and conditions apply. Not available in all countries. Contact your reseller. offers security and peace of mind that comes with knowing your Logitech video collaboration room systems and devices are protected against defects for up to five years from the purchase date. Extended warranties are available for either one year or three years beyond the original Logitech manufacturer’s two-year warranty.
ROOM COVERAGE
163° horizontal x 110° vertical
DISPLAY RESOLUTION
Up to 1080p
PACKAGE CONTENTS
-Rally Bar Mini -Power supply -AC power cord -HDMI cable -USB cable -Remote control -User documentation -Lens caps for main lens and AI Viewfinder
RESOLUTION
- 4K
- 1440p
- 1080p
- 900p
- 720p
- SD at 30fps
GENERAL SPECIFICATIONS
-Built-in Components : 6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
-Enclosure : All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
ENVIRONMENTAL
-Humidity : 10 to 95%
-BTU/hr : 57 idle, 64 in meeting
-Operating Temperature : 0 to 40°C
-Storage Temperature : -40 to 70°C
WOOFER SPEAKER
- Driver: 70 mm
- Rated Power: 8W
- THD: 1kHz <2% at 1W
- Speaker Sampling Rate: 48KHz
- Impedance: 4 Ohms
- Sensitivity: 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
MIDRANGE SPEAKERS
- Drivers : 2 x 43 mm
- Sensitivity : 84 dB SPL @ 1W/1M
- Rated Power : 4W
- THD : 1kHz <2% at 1W
- Speaker Sampling Rate : 48KHz
- Impedance : 4 Ohms
INTERFACES
-HDMI Out : 2 (up to 1080p)
-HDMI In : 1
-MAC : 3x Type A, 1x Type C
-Network : 10/100/1G Ethernet
-WiFi : 802.11a/b/g/n/ac
-External Mic Input : Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
-Remote Control : Bluetooth® Low Energy
OPERATING VOLTAGE/POWER
100-240V, 19V, 4.74A
POWER SUPPLY DIMENSIONS
127 mm x 51 mm x 30
APPLIANCE MODE
Supports compatible video conferencing software in appliance mode (no PC required), including
- Microsoft Teams Rooms on Android™
- Zoom Room™
- RingCentral Rooms™
- Tencent Meeting Rooms
RIGHTSENSE™ TECHNOLOGIES
-RightLight : Renders natural skin tones for each participant
-RightSight : Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
-RightSound : Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
-Grid View : Detect and frame all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview
WARRANTY INFORMATION
-Standard : 2-year limited hardware warranty included.
-Extended : Additional one-year and three-year extended warranties available at the time of hardware purchase.
ACCESSORIES
-Mounts : Wall Mount for Video Bars, TV Mount for Video Bars
-Audio : Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
-Connectivity: Logitech Strong USB (10 m, 25 m, 45 m)
-Touch Controller : Logitech Tap and Tap IP
MICROPHONES
-Frequency Response : 90Hz – 16kHz
-Sensitivity : >-36dBFS +/-1 dB @ 1Pa
-Microphone data rate output : 48 kHz
-Pickup Range : Up to 7 m
-Beamforming Elements : Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
-Audio processing : AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
-Noise suppression : AI based de-noising algorithm
-Add-on Mics : Supports up to 3 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
LOGITECH SELECT
An all-in-one service plan
Logitech Select is a comprehensive service plan that delivers reliability, continuity, and peace of mind for each room you designate. Select provides 24/7 support, a Dedicated Service Manager,1Available with purchase of a service plan with 50 or more rooms.
TECHNICAL INFORMATION
CATEGORY | RALLY BAR MINI |
---|---|
USB Mode | Yes |
Appliance Mode | Yes |
Motorized Pan Tilt | Yes |
Camera | 4X digital zoom |
AI Viewfinder | Yes |
Auto-Framing | RightSight 2 with Speaker View Grid View |
Expansion Mics | Up to 3 Rally Mic Pods |
