Systemtronic Mer Series Monitor Stand
MER series monitor stand
MER SERIES MONITOR STAND

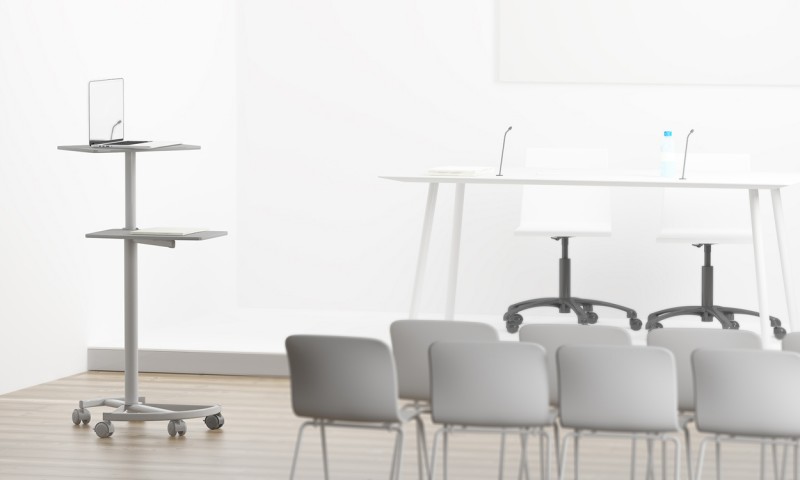

The MER series is designed for the use of audiovisual elements, such as overhead projectors.
It is characterized by the height adjustment of its monitor support in the central column. Its straight and light line fits perfectly into the work environments to which it is recommended.
information
PRODUCT TYPE
Monitor Stand
DOWNLOADS
ā Data Sheet
CORRECT STABILITY AND RESISTANCE
The base is designed to guarantee correct stability and resistance. The ends of the oval tubes are protected with plastic quarries. Supplied with 5 wheels of 50mm diameter, two of them with brake, which allows its displacement and, when required, a fixed positioning free of unwanted movement.
WEIGHT
The maximum load of the boards is 12kg each.
BRAND
Systemtronic
PRODUCT TYPE
Monitor Stand
THICKNESS
-Melamine agglomerate, 19mm thick with unicolour straight edges. -DM 12mm thick, with aluminum lacquered edge
OTHER DETAILS
The boards are screwed to a metal arm that allows flat and free rotation with full stability on the shaft. The height above the floor of the top board is adjustable, being the maximum height 1225mm and the minimum 1045mm, the height of the lower board is 740mm and can not be raised or lowered.
MAINTENANCE
-Wood: We recommend using a cloth or cleaning products for natural wood. Avoid using products containing solvents and/or alcohol.
-Polyester Paint: For dry dirt (dust), use a damp cloth. For greasy/oily stains (fingerprints), wipe with a sponge with water and dishwashing liquid. Rinse with a damp cloth. Avoid using products containing solvents and/or pure ethyl alcohol.
-Aluminium-metal-glass-melamine-plastic: We recommend using normal cleaning products for delicate surfaces. Alcohol, solvents and abrasive agents must be avoided.
DIAMETER
The central column is a key piece to achieve the visual lightness of this table for overhead projectors, it is made of round metal tube cold rolled 50mm in diameter that shelters another tube of 40mm in diameter
TECHNICAL DRAWING
Finishes
STRUCTURE
-Aluminio Gloss Ral 9006 -White Gloss
TABLETOP
-Aluminum -White -Cherry 3482
