Denon AVR-X4800H Radio

AVR-X4800H RADIO

AVR-X4800H RADIO

9.4 Ch. 125W 8K AV Receiver with HEOS® Built-in

Designed and manufactured in Japan, the powerful AVR-X4800H drives 9.4 channels of amplification.

Denon AVR-X4800H Radio
Denon AVR-X4800H Radio

With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X4800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favorite music.

FEATURES

POWERFUL NINE-CHANNEL AMPLIFIER

Discrete high-current amplifiers deliver up to 125W per channel (at 8 ohms, 20- 20kHz, THD 0.05%) for more refined sound in large spaces.

Denon AVR-X4800H Radio

3D AUDIO EXPERIENCE

Get enveloped in sound with Dolby Atmos®, DTS:X®, IMAX Enhanced, and Auro 3D, along with Dolby Surround, DTS Neural:X, and Auro-Matic upmixer to optimize legacy content.

Denon AVR-X4800H Radio

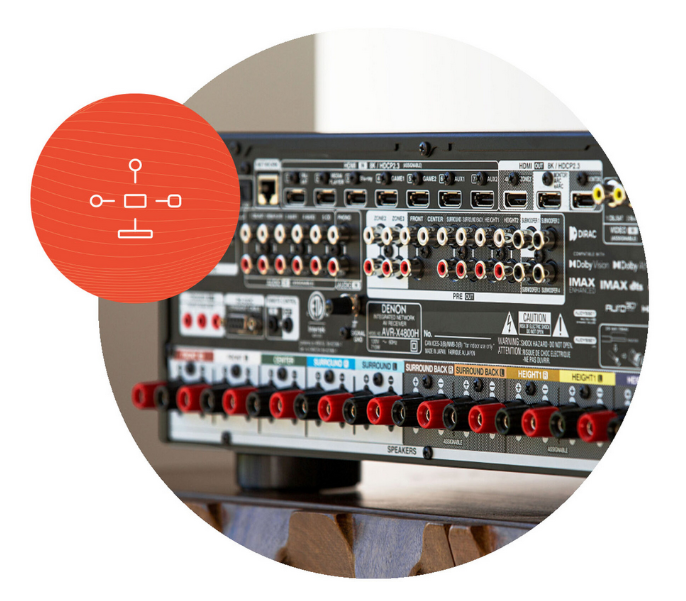

CONFIGURATION FLEXIBILITY

AVR-X4800H offers many setup options and the flexibility to adjust your home theater to meet your needs. Supports 11.4 channel processing capability, Pre- Amplifier mode, and optional Dirac Live upgradability (with fee).

Denon AVR-X4800H Radio

OPTIMIZE FOR YOUR ROOM

Enhance performance with room correction options from Audyssey (installed) or Dirac Live (optional, with future update).

Denon AVR-X4800H Radio

ADVANCED 8K HOME THEATER

8K video is supported on all seven HDMI inputs and two of the three outputs. With HLG, HDR, Dolby Vision, HDR10+ and Dynamic HDR pass-through, there’s no need to worry about video compatibility or picture quality.

Denon AVR-X4800H Radio

KEY TECHNOLOGIES

Denon AVR-X4800H Radio

AMAZON ALEXA

Use your voice to stream your favorite music services through Alexa with HEOS® Built-in. Turn volume up or down, pause, mute and play the next song — all with your voice.

Denon AVR-X4800H Radio

AURO 3D

Auro-3D elevates the home theater experience to amazing new levels by delivering the excitement of 3D sound for music, games, broadcast, and films, thanks to the Auro-Matic upmixing engine.

Denon AVR-X4800H Radio

HDR10+

Supports HDR (High Dynamic Range), HLG (Hybrid Log Gamma), as well as Dynamic HDR and HDR10+ pass-through to optimize shadows and highlights. HLG offers HDR technology over broadcast content.

HEOS APP

Play the same song in every room or select a different song for each connected room via a variety of streaming sources. Add Denon Home speakers to more rooms and control it all with the HEOS app.

Denon AVR-X4800H Radio

ROON TESTED

Get more out of your digital music library with searchable, surfable information about your favorite artists and songs. Find lyrics, concert dates, photos, bios, reviews and more.

Denon AVR-X4800H Radio

8K

Enjoy pristine 8K picture quality on your 8K TV or projector. Supports both 8K pass-through and 8K upscaling of 4K content. Supports HDCP 2.3 for peace of mind when streaming copy protected content.

Denon AVR-X4800H Radio
Denon AVR-X4800H Radio

BLUETOOTH

Connect and play music directly from your smartphone, tablet or other compatible device

Denon AVR-X4800H Radio

DOLBY ATMOS

Upgrade your home theater with height speakers to unleash a fully immersive 3D audio experience, or engage all speakers to create 3D audio sensation from legacy content even without height speakers.

Denon AVR-X4800H Radio

DOLBY VISION

Enjoy Dolby Vision content from a compatible source device and TV. Dolby Vision is a stunning HDR imaging technology that brings extraordinary color, contrast, and brightness to the screen.

GOOGLE HOME

Google Home or other devices with Google Assistant built-in can control content across your listening environment. Ask your Google Assistant to control volume, play, pause, skip tracks and more.

Denon AVR-X4800H Radio

VARIABLE

Supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT) and Auto Low Latency Mode (ALLM) for smooth, lag- free gaming experience when connected with the compatible gaming devices.

Denon AVR-X4800H Radio

DENON AVR REMOTE CONTROL

The Denon AVR Remote control app allows you to turn the receiver on and off, select an input source, adjust volume, and browse music from your phone or in a USB drive when connected to the receiver.

Denon AVR-X4800H Radio
Denon AVR-X4800H Radio

IMAX ENCHANCED

IMAX Enhanced is the latest technology from DTS that sets a new standard. See clearer and brighter picture, feel immersive lifelike audio, and experience premium content digitally remastered by IMAX.

Denon AVR-X4800H Radio

USB SUPPORT

A front USB port supports up to 24bit/192kHz hi- res audio playback from a USB drive. Supported audio formats are MP3, WMA, WAV, MPEG-4/AAC, FLAC, and ALAC.

Denon AVR-X4800H Radio

OVRC REMOTE SYSTEM

Domotz Pro and OvrC remote system monitoring and management technology programs allow custom integrators to monitor the status of connected products and troubleshoot remotely.

EARC&ARC

Supports the latest technology on HDMI inputs and output. ARC (Audio Return Channel) or eARC (Enhanced ARC) makes playing TV audio through your AV receiver simple with just a single HDMI connection.

Denon AVR-X4800H Radio

STEAM AUDIO & VIDEO

Stream audio or video from your favorite streaming services using your smart device. Hear audio perfectly synced to your speakers from AirPlay 2 sources. AirPlay 2 also supports multi-room audio.

Denon AVR-X4800H Radio

COMPATIBILTY

With Siri compatibility, users can play music, adjust volume, and switch inputs using voice control. AirPlay 2 features in compatible devices can also be controlled with your voice via Siri.

Denon AVR-X4800H Radio
Denon AVR-X4800H Radio

AUDYSSEY

With the supplied Audyssey measuring microphone, Audyssey measures all the speakers in your home theater, and tunes the AV receiver to provide most optimal overall listening experience for your room.

Denon AVR-X4800H Radio

DTSX IMMERSIVE AUDIO

DTS:X immersive audio content places sound where it would naturally occur in space, creating lifelike, multi- dimensional audio. DTS Neural:X upmixer offers heightened realism for legacy content.

Denon AVR-X4800H Radio

DIRAC

Purchase a Dirac Live® Room Correction license key to apply state-of-the-art, patented algorithms to analyze and digitally reduce room impact and enhance speaker performance. Update coming in 2023.

INFORMATION

WEIGHT

- Weight in LBS : 29.1
- Weight in LBS (Packaging) : 34.9

DIMENSIONS (ANTENNA HORIZONTAL)

- Width : 17.1 inch
- Depth : 15.3 inch
- Height : 6.6 inch

Denon AVR-X4800H Radio

DIMENSIONS (ANTENNA VERTICAL)

- Width : 17.1 inch
- Depth : 15.3 inch
- Height : 9.3  inch

Denon AVR-X4800H Radio

DIMENSIONS (ANTENNA W/O)

- Width : 17.1 inch
- Depth : 14.9 inch
- Height : inch

Denon AVR-X4800H Radio

TAILOR YOUR SOUND WITH COMPLETE CONNECTIVITY & CONTROL

Every element of a Denon product is thoughtfully crafted to deliver an unforgettable audio experience.

EXPERIENCE THE LATEST PRECISION-BASED AV RECEIVER

The latest visual and 3D audio formats via 8K HDMI with eARC support ensure incredible entertainment experiences for years to come.

ENVELOPING 3D AUDIO

Feel like you're in the center of the action with enveloping 3D sound.

GENERAL

-M
etal Front Panel Yes -System Remote Control RC-1252- Pre-Programmed, Learnable, LCD Display Yes, No, No -Power Consumption in W 710 -Power Consumption No-Sound (ECO On / Off) in W 65W/110W

EXPERT READY

Take advantage of the wide variety of configuration options to best fit your space.

DENON CRAFTSMANSHIP

Designed and manufactured at Denon facilities in Japan and tuned by the Denon Sound Master.

Denon AVR-X4800H Radio

SPECIFICATIONS

- Number of Power Amps 9
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 165W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 235W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 165W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 235W
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) 125W
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) 125W

CONSUMPTION

- Standby Consumption in W : 0.1
- CEC Standby Consumption in W : 0.5
- Network Standby Consumption in W : Less than 2.0

MULTICHANNEL SURROUND

- Auro 3D : Yes
- DTS Virtual:X : Yes
- IMAX Enhanced : Yes
- DTS HD Master, DTS:X,
- DTS:X Pro : Yes, Yes, No
- Dolby Atmos Music : Yes, Yes, Yes, Yes
- 360 Reality Audio / MPEG H : Yes, Yes
- Max. Number of Processing (Pre-Amp)Channels : 11.4
- Auro 3D : Yes -360 Reality Audio / MPEG H : Yes, Yes
- Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music : Yes, Yes, Yes, es

- IMAX Enhanced -Yes
- DTS Virtual:X : Yes
- DTS Neo:X, DTS Neural:X : No, Yes
- DTS Neo:X, DTS Neural:X : No, Yes
- Dolby ProLogic Ilz, Dolby Surround : No, Yes
- Dolby ProLogic Ilz, Dolby Surround : No, Yes
- DTS HD Master, DTS:X, DTS:X Pro : Yes, Yes, No
- Multichannel Stereo : Yes- Multichannel Stereo : Yes
- Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization,

SOUND ENHANCEMENTS

- Audyssey : MultEQ XT32
- Clock Jitter Reducer : Yes
- Dirac Live Upgradability : Yes
- D.D.S.C. HD Digital : Yes (32 bit)
- Compressed Audio Restorer : Yes
- Audyssey Dynamic EQ, Dynamic Volume ; Yes, Yes
- Audyssey Dynamic EQ, Dynamic Volume : Yes, Yes
- Audyssey LFC : Yes -Dirac Live Upgradability : Yes

- Audyssey LFC : Yes
- Pure Direct : Yes
-Clock Jitter Reducer : Yes
- Discrete Power Amplifier : Yes
- Discrete Power Amplifier : Yes
- Alpha Processing : AL32 Processing Multichannel
- D.D.S.C. HD Digital : Yes (32 bit) -Pure Direct : Yes
- Alpha Processing : AL32 Processing Multichannel

MULTI-ROOM CI

- Multi-Room Zones : 3
- DC Trigger Output : 3
- Remote In / Out : Yes, Yes
- Zone Audio Output: Speaker, Pre-Out : Yes, Yes
- Multi-Room Zones: 3 -Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog : Yes (2ch), Yes (2ch), Yes, Yes
- Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog : Yes (2ch), Yes (2ch),Yes, Yes

- HDMI Diagnostics : Yes
-HDMI Diagnostics : Yes
- Remote In / Out : Yes, Yes
- Zone HDMI Output from HDMI Source : Yes
-Zone HDMI Output from HDMI Source : Yes
- Zone Audio Output: Speaker, Pre-Out Yes, Yes
- IP Control, RS232 Control, Web Control, App Control : Yes, Yes /Yes, Yes

OTHERS

- Bass Sync Yes
- ECO Mode Yes
- Sleep Timer Yes
- Bass Sync Yes
- ECO Mode Yes
- GUI Languages 3
- Setup Assistent Yes
- Optimized Bass Redirection Yes
- Auto Speaker Setup by Microphone Audyssey MultEQ XT32

- Auto Power Off Yes
- Dirac Live (upgrade)
- Front Display 2-Line FLD
- Variable Crossover Yes
- Quick Select Plus, Quick Select Yes, No
- Auto Speaker Setup by Microphone Audyssey MultEQ XT32
- Quick Select Plus, Quick Select Yes, No -Variable Crossover Yes

INPUTS OUTPUTS

-AM/FM Tuner Yes
- HDMI In, Out 7, 3
- Phono (MM) In Yes
- Analog In, Out 5, No
- Phono (MM) In Yes
- Bi-amp Drive Assignable
- Digital In: Optical, Coaxial 2, 2
- Multichannel Pre-out Yes (11.4)
- Multichannel Pre-out Yes (11.4)
- Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB No, No, No, No, Yes
- USB Audio, Made for iPod, Made for iPhone Yes, No, No -AM/FM Tuner Yes

- Speaker Terminal: Gold
- Speaker A / B Assignable
- Bi-amp Drive Assignable
- Speaker A / B Assignable
- Subwoofer Out 4 (independent
- Multi-Room Speaker Terminal Assignable
- Multi-Room Video Out: Video, HDMI No, Yes
- Multi-Room Speaker Terminal Assignable
-Number of Speaker Terminals 11-Plated Screw, Regular Screw No, Yes- Speaker Terminal: Gold-Plated Screw, Regular Screw No, Yes
- Multi-Room Video Out: Video, HDMI No, Yes- Analog In, Out 5, No

NETWORK

- TuneIn Yes
- Media Server : Yes
- Ethernet Ports : Yes
-Wi-Fi Yes -Bluetooth : Yes
- HEOS Wireless Multi-Room Technology : Yes
- Lossless Formats: FLAC, ALAC, WAV : Yes, Yes, Yes
- Alexa / Google Voice Assistant / Apple HomePod : Yes, Yes, Yes
- Lossy Formats: MP3, WMA, AAC : Yes, Yes, Yes -Lossless Formats: FLAC, ALAC, WAV Yes, : : Yes, Yes
- Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote

- AirPlay 2 : Yes
- Pandora: Yes
- TuneIn : Yes
-Spotify Connect : Yes
-DSD Audio Streaming : Yes (2.8/5.6MHz)
- Lossy Formats: MP3, WMA, AAC : Yes, Yes, Yes
- Wi-Fi : Yes -Bluetooth Yes- Media Server Yes
- Alexa / Google Voice Assistant / Apple HomePod : Yes, Yes, Yes
-Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) : Yes, Yes, Yes

HDMI

- Auto LipSync : Yes
- HDMI Inputs: Back, Front 7, No
- HDMI Outputs: Main, Zone 2, 1
-HDR, HLG, Dolby Vision, HDR10+,
- HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB : Yes, Yes
- HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB : Yes, Yes
- Audio Return Channel (ARC), Enhanced ARC : Yes, Yes
- 8K Signal Pass-Through, Scaling, GUI Overlay : Yes, Yes, Yes
- ALLM (Auto Low Latency Mode) Pass-through gaming : Ye

- HDCP2.3 support : Yes
- DSD Audio Capability : Yes
- 3D Signal Pass-through : Yes
- Dynamic HDR : Yes , Yes, Yes, Yes, Yes
- 8K Signal Pass-Through, Scaling, GUI Overlay : Yes, Yes, Yes
- Audio Return Channel (ARC), Enhanced ARC : Yes, Yes
- HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR : Yes , Yes, Yes, Yes, Yes
-Variable Refresh Rate, Quick Frame Transport, Quick Media Switching : Yes, Yes, No
