Olimpiasplendid Nexya S5 E Duct Commercial Air Conditioner

NEXYA S5 E DUCT COMMERCIAL AIR CONDITIONER

Olimpiasplendid Nexya S5 E Duct Commercial Air Conditioner

NEXYA S5 E DUCT COMMERCIAL AIR CONDITIONER

The single-split with ducted indoor unit by Olimpia Splendid is an air conditioner with a high prevalence (static pressure available up to 160 Pa), characterised by particularly compact dimensions (height from 210 mm). Thanks to the automatic air flow setting function, Nexya S5 E Duct adapts autonomously according to the ducting connected to the unit. There are three remote control possibilities: through the remote control, from the wall-mounted wired remote control or from any mobile device by installing the special wi-fi kit and downloading the OS Comfort app.

FEATURES

Olimpiasplendid Nexya S5 E Duct Commercial Air Conditioner

HIGH HEAD

Ducted indoor unit with static pressure available up to 160 Pa.

Olimpiasplendid Nexya S5 E Duct Commercial Air Conditioner

SLIM DESIGN

The range is characterised by its small dimensions (Height from 210 mm)

Olimpiasplendid Nexya S5 E Duct Commercial Air Conditioner

AUTOMATIC SETTING OF THE AIR FLOW RATE

In order to automatically adapt the system depending on the ducts connected to the unit.

Olimpiasplendid Nexya S5 E Duct Commercial Air Conditioner

DIGITAL DISPLAY

Display on the outside of the internal unit to guaranteed he best signal reception from the remote control.

INFORMATION

BRAND

Olimpia Splendid

PRODUCT TYPE

Air Conditioner

ENERGY EFFICIENCY CLASS

- Heating Warmer Season : A++
- Heating Intermediate Season : A++

COLLECTION

Nexya

PRODUCTION

Made in Italy

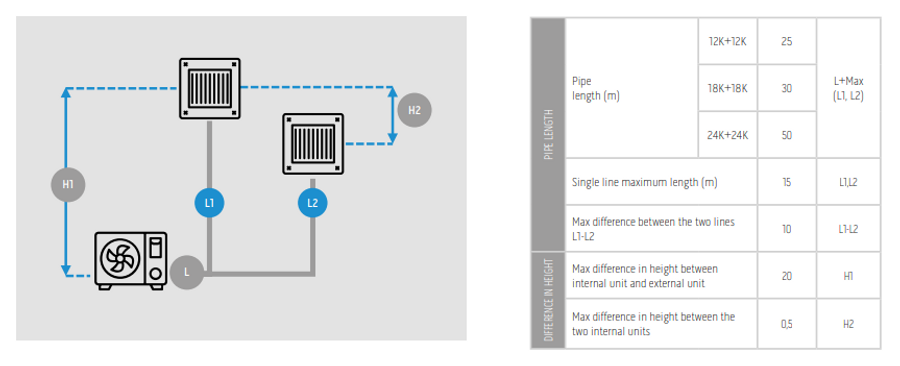

TWIN SYSTEM

The twin configuration for improved air distribution

A complete system, intended for small commercial businesses, to improve air diffusion through the connection of two internal units, of the same power, to an external unit. The internal units are compatible with the Twin System and designed to be installed in one room. The control allows you to control the main unit while the secondary (slave) unit mirrors the on/off settings, set point, function mode and fan speed.

Olimpiasplendid Nexya S5 E Duct Commercial Air Conditioner

ENERGY EFFICIENCY CLASS

Cooling : A++

REFRIGERANT GAS TYPE

R32

SOUND PRESSURE

58 dB(A) (min)

REFRIGERANT GAS

R32

MODELS AVAILABLE

- 18
- 24
- 36
- 48

 FUNCTIONS

-Cooling, heating, dehumidification and ventilation -Auto, Sleep and Turbo functions -24h timer: for scheduling switch on and off. -Follow Me function: precise temperature detection at the remote control location. -Gear function : 3 power options (50-75-100%) to optimise energy consumption
-Short cut function: to automatically return to the previous settings.

TIMER

24 hour

HEIGHT

210 mm

FEATURES

-Energy-efficient inverter technology with low-GWP R32 refrigerant gas. -Optimum performance and high efficiency at low airflow resulting in reduced noise. -Automatic air flow rate setting Innovative automatic air flow setting function, so that the system automatically adapts according to the ducting connected to the unit.

-Reversible air intake The air intake duct can be moved from the rear of the product (standard configuration) to the bottom, replacing it with a sheet metal panel. This makes the product suitable for all installation conditions. -Fresh air inlet The internal units of the commercial line are fitted with specific air inlets to introduce fresh or outdoor air into the product.

-Condensate lift pump The internal units are fitted with a condensate pump. -Remote ON-OFF All units in the commercial line are fitted with terminals to control the remote switching on and off of the unit via an external device.

-Contact alarm The units in the commercial line have a contact that allows the alarm status of the product to be synchronised with an external device. -Hydrophilic Aluminium coating Suitable for installation in coastal or particularly humid areas, thanks to its excellent anti-corrosion properties. With equivalent environmental conditions, the new coating of the condensers guarantees a durability that is 7 times greater that of the traditional models.
